Chapter 2. OUTLINE OF FUNCTIONS

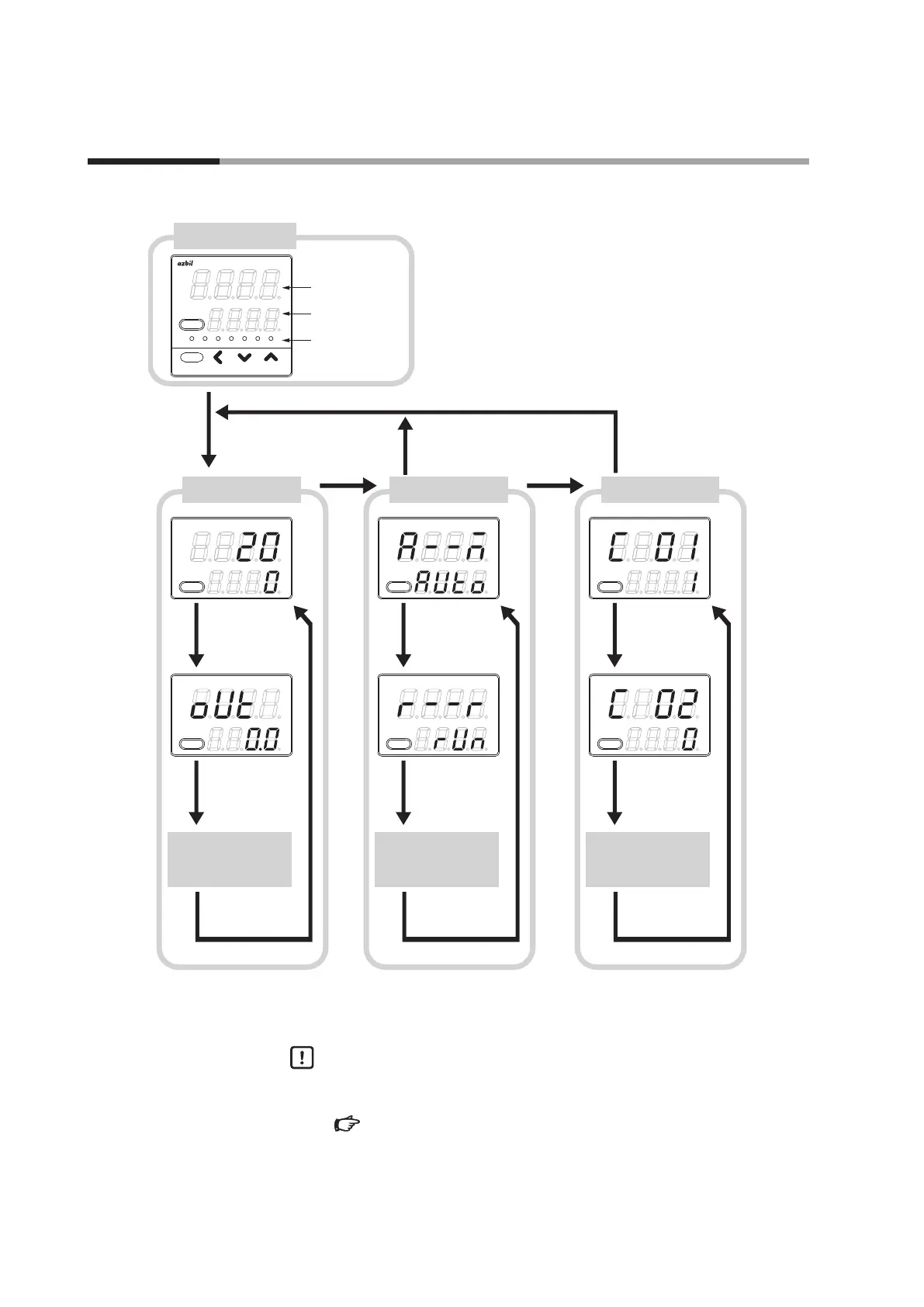

The following shows the flow of the general key operation. Various displays and settings can be called up to the
console.
Display when the power
is turned ON.
Keep the [para]
key pressed for
2 s or longer.
PV/SP display
Press the [para] key.
MV display
Other display and setup
(Operate the [para] key
repeatedly.)
Press the [para] key.
Press the [para] key.
AUTO/MANUAL
selection
Press the [para] key.
RUN/READY
selection
Other display and setup
(Operate the [para] key
repeatedly.)
Press the [para] key.
Press the [para] key.
Operation display
Press the [mode]
key.
Keep the [para]
key pressed for
2 s or longer.
O.
The mode indicator
is lit sequentially
from the left.
O.
No key operation for 3 min or more.
No key operation for 3 min
or more.
Keep the [para] key pressed
for 2 s or longer.
Press the [mode] key.
mode
pv
sp
mode
pv
sp
mode
pv
sp
mode
pv
sp
mode
pv
sp
mode
pv
sp
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
The mode indicators are lit sequentially from
the left during a period of 6 s. after the power
has been turned ON while both the upper
display and lower display are o. When all
mode indicators have been lit, the display is
changed to the operation display.
Parameter setup
display
PV range type
setup
Press the [para] key.
Temperature unit
setup
Other display and setup
(Operate the [para] key
repeatedly.)
Press the [para] key.
Press the [para] key.
Setup setting display
The display and setup status shown above are examples for
explanation. Therefore, some displays or settings are not shown
actually according to the model and/or setup contents.
Handling Precautions
• For details about display and setup contents of the operation display,
parameter setting display, and setup setting display:
7 - 1 List of Operation Displays (p.7-1)
7 - 2 List of Parameter Setting Displays (p.7-2)
7 - 3 List of Setup Setting Displays (p.7-5)
• When pressing the [<] key with the [para] key kept pressed instead of
pressing of the [para] key, various displays and settings can be operated
in the reverse order. However, the operation that both the [para] key and
[<] key are kept pressed for 2 s or longer, is invalid.
2 - 2 Key Operation
