Chapter 6. SETTINGS DURING OPERATION
6 - 3 Mode
In “Simple configuration”, AUTO/MANUAL mode selection, RUN/READY mode selection, AT (auto tuning) Stop/
Start selection, release all DO (digital output) latches, and communication DI (digital input) 1 OFF/ON selection
can be set.
However, the operation by the communication DI1 cannot be set only in “Simple configuration”.
AUTO/MANUAL mode selection setup
(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>>

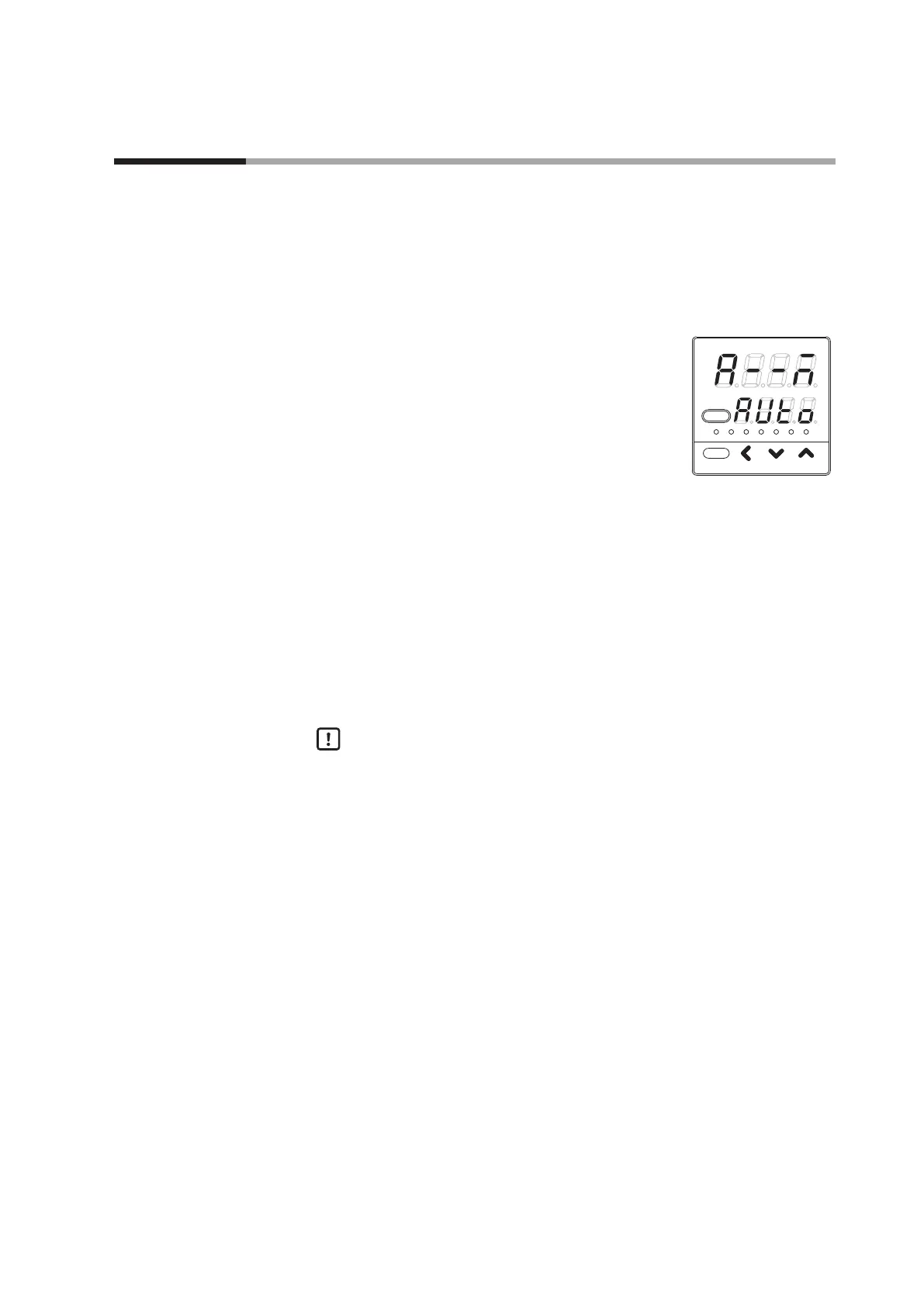

The parameter setting [A--M:AUTO/MANUAL
mode selection] is displayed.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(2) Press the [
], or [
] key to set the value you have
selected from the following in [A -- M].
AUtO: AUTO mode
MAn: MANUAL mode
>>
When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(3) Press the [mode] key.
>>
The display is returned to the operation display.
Handling Precautions
• When [CtrL: Control method] is set at [0: ON/OFF control], [A--M] is not
displayed.
• When the operation type of any of internal contacts 1 to 3 is set at “AUTO/
MANUAL mode selection”, [A--M] cannot be changed.
