Chapter 5. SETTINGS BEFORE STARTING OPERATION

Event sub-setting setup
(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>> The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp

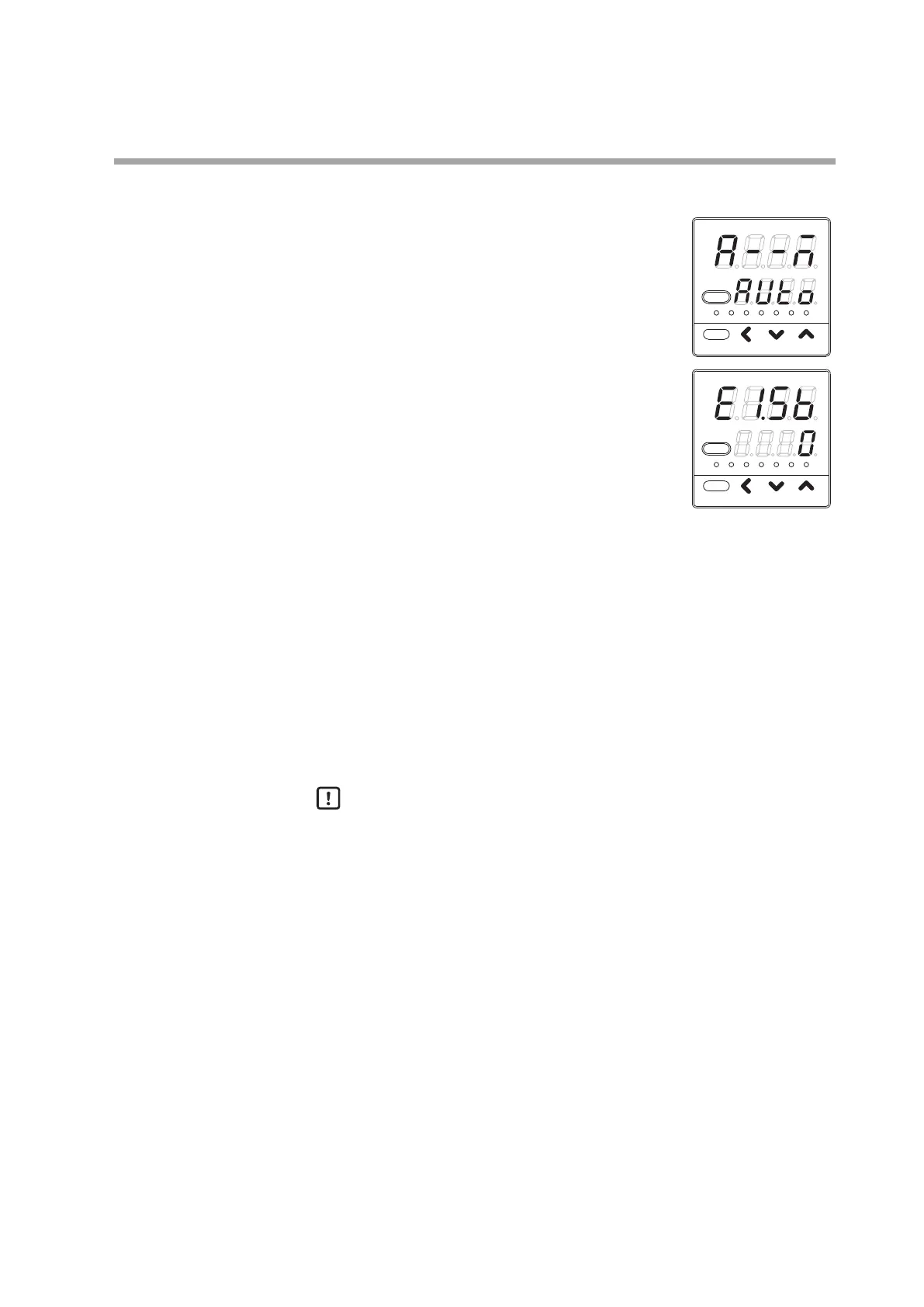

(2) Press the [para] key several times.
>> Display the parameter setting [E1.Sb: Internal
Event 1 sub-setting].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) Press the [<], [
<
], or [
<
] key to change the set value in
[E1.Sb].
Setting range: -1999 to +9999
The decimal point position is changed corresponding to the event operation type.
For a part of the event operation types, the setting range becomes 0 to + 9999.
>> When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(4) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
• The displays of the internal event 2 to 5 sub-settings are [E2.Sb], [E3.Sb],
[E4.Sb], and [E5.Sb].
• When the internal event operation type is [0: No event] or the operation
type does not need sub-setting, the internal event sub-setting is not
displayed.
