Chapter 5. SETTINGS BEFORE STARTING OPERATION

Transmission speed setup
(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>> The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp

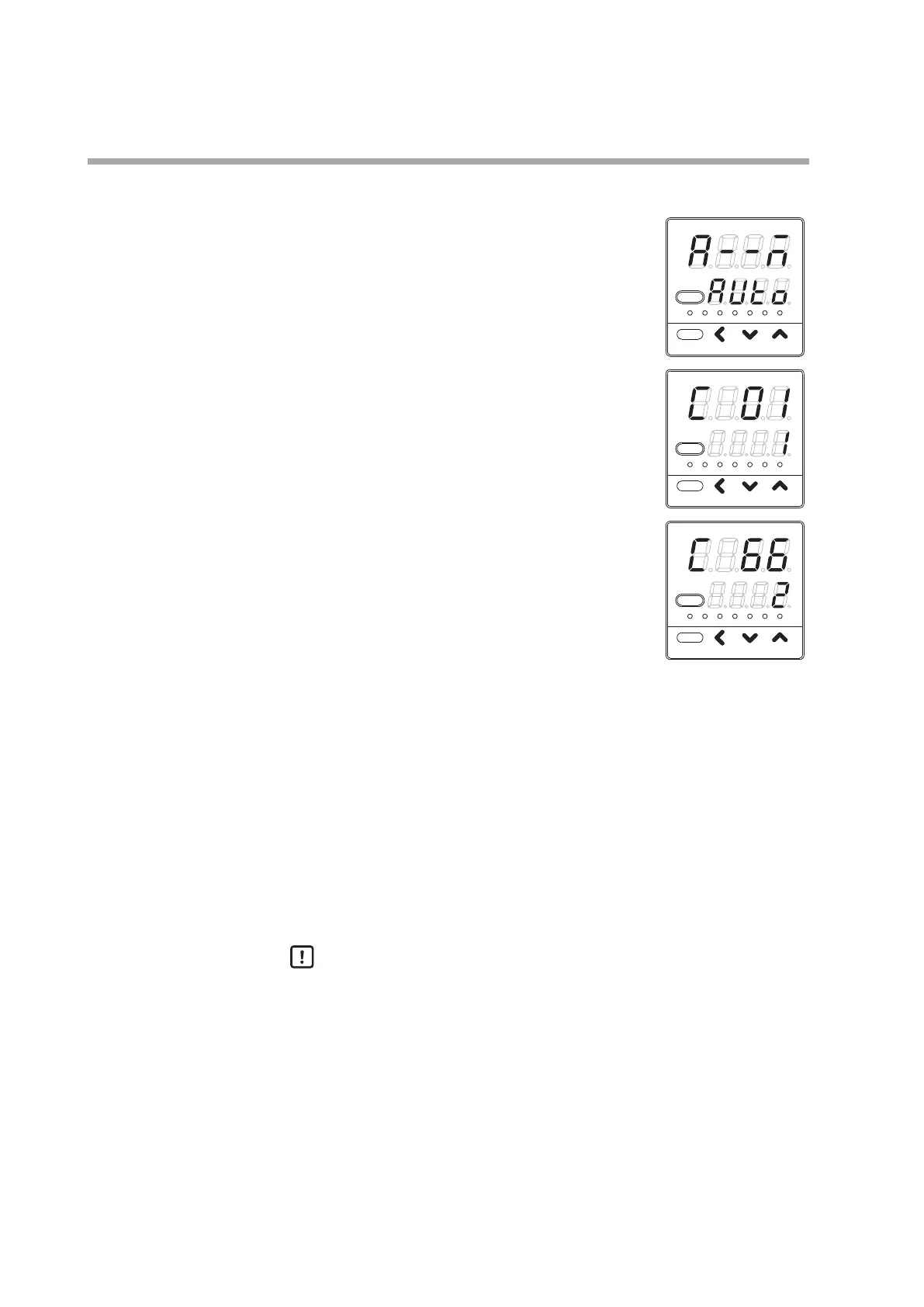

(2) In the parameter setting display mode, keep the [para]
key pressed for 2 s or longer.
>> The display is then changed to the setup setting
display.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) Press the [para] key several times.
>> Display the setup setting [C66: Transmission
speed].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(4) Press the [<], [
<
], or [
<
] key to set the value you have
selected from the following in [C66].
0: 4800 bps
1: 9600 bps
2: 19200 bps
3: 38400 bps
>> When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(5) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
When the RS-485 communication is provided as an optional function of the
model, [C66] is displayed. Make the settings so that the transmission speed
becomes the same as that of the master station.
