Chapter 6. SETTINGS DURING OPERATION

Release all DO (digital output) latches setup
(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>> The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(2) Press the [para] key several times.

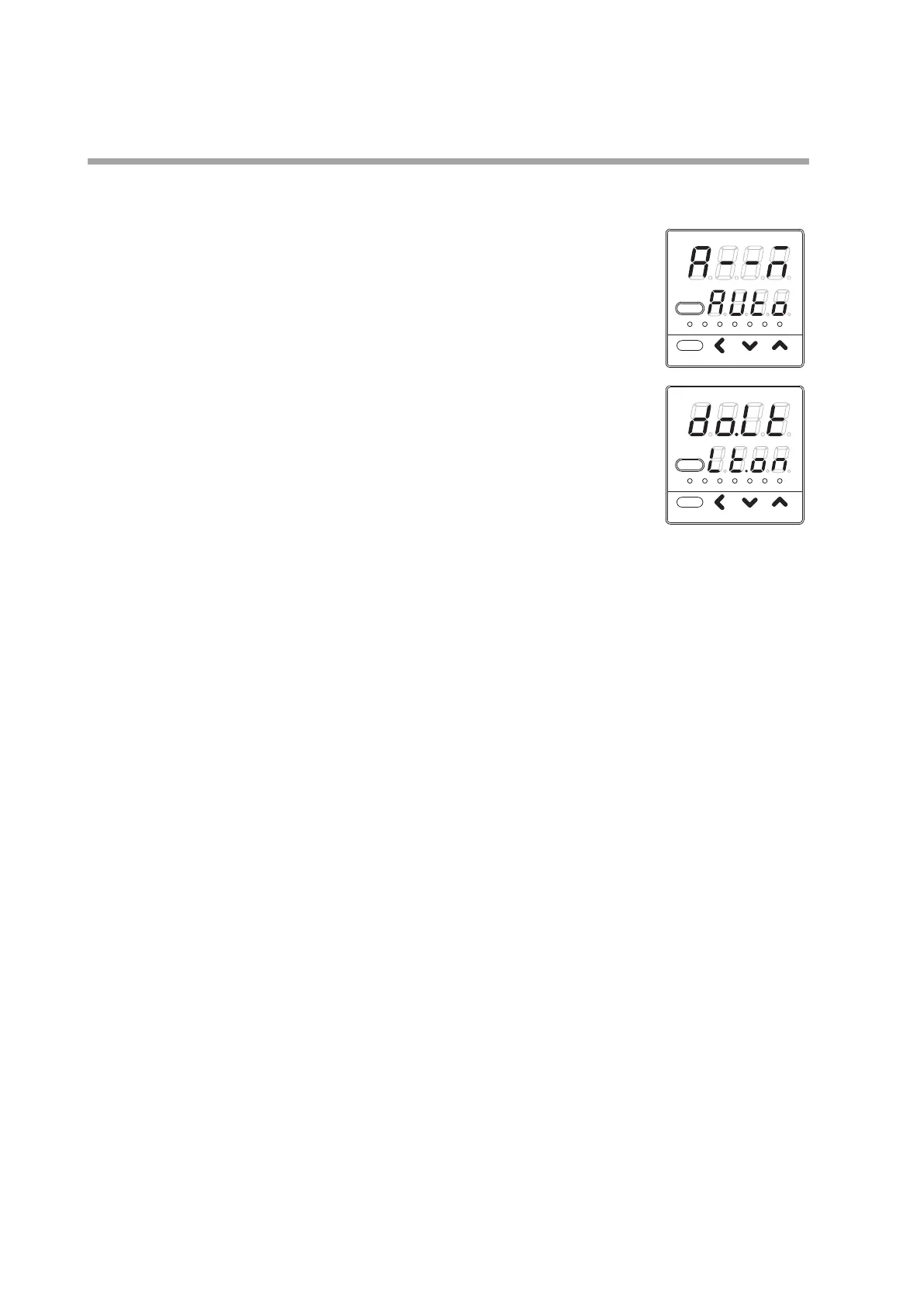

>> Display the parameter setting [dO.Lt: Release all
DO latches].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) Press the [
<
], or [
<
] key to set the value you have
selected from the following in [dO.Lt].
Lt.On: Latch continue
Lt.OF: Latch release
>> When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value. When releasing the
latch in the digital output process after setting [Lt.OF], the setting item is
automatically changed to [Lt.On].
(4) Press the [mode] key.
>> The display is returned to the operation display.
