Azbil Micro Flow MQV9005 - Page 59

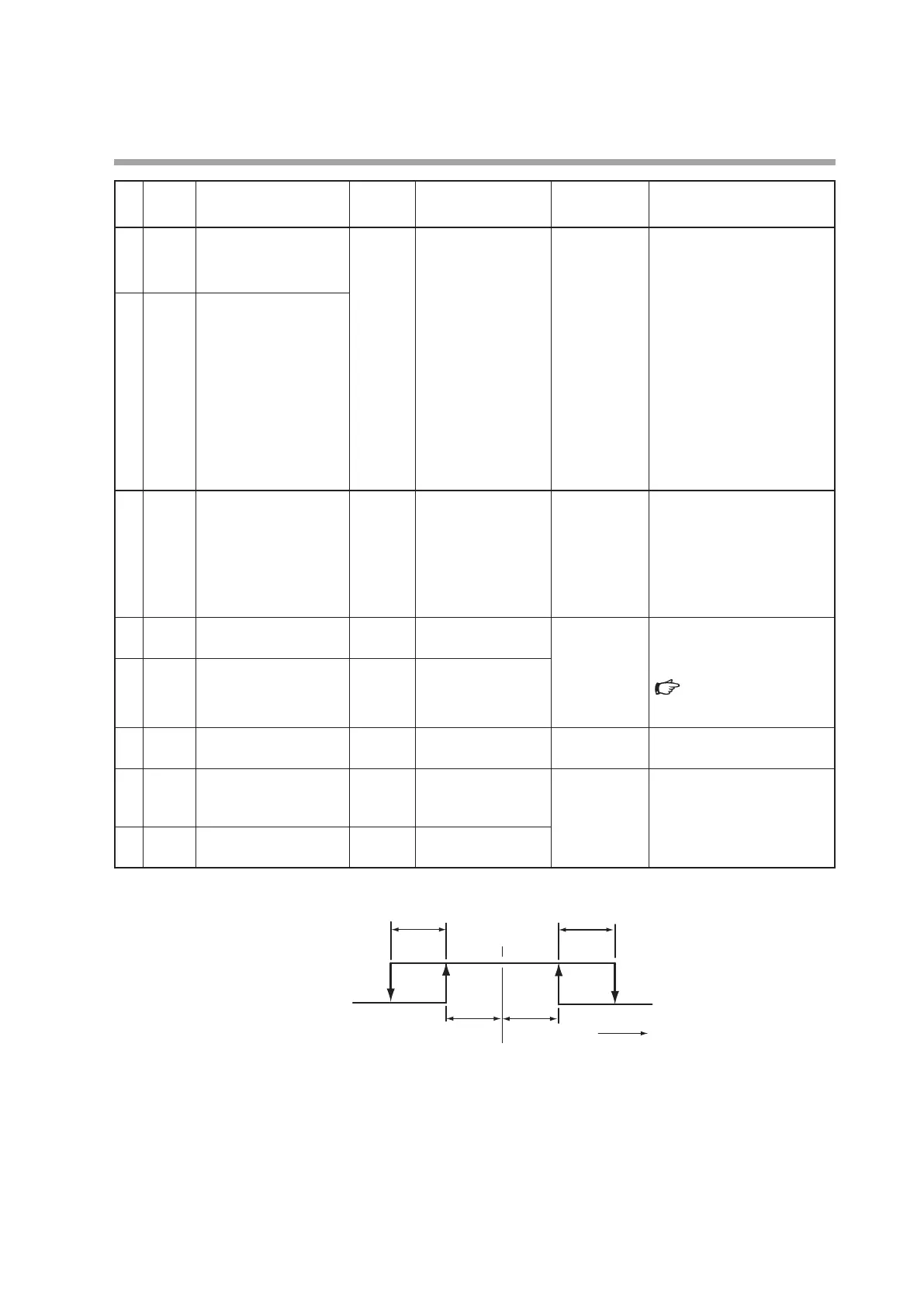

5-13
Chapter 5. ADVANCED OPERATION
No. Display Description
Factory
Setting
Setting Range
Related
Function Setup
Remarks
15
rap. i
SP ramp control ramp 1 0 MQV 9200/9500 :
0.0 to 999.9
MQV 9005/0002/0005:
0.000 to 9.999
MQV 9020/0020/0050
0.00 to 99.99
MQV 0200/0500 :
0.0 to 999.9
C-27
Sets the flow rate change per
second.
Flow rate unit: L/min
(standard)
(mL/min (standard) for the
MQV9005/9020/9200/9500)
Ramp control does not
function if the value stays
at the factory setting (ramp
zero).
(The SP takes effect
immediately after a change.
The update cycle for the SP is
5 ms.)
*9
16
rap.2
SP ramp control ramp 2
*9
17
a.SCL
Optional analog scaling (100 %
FS)
(10 to 100 % FS)
C-28
Sets the flow rate
corresponding to 100 % of
analog input / output (5V).
Unit : L/min(standard)
(mL/min (standard) for
the MQV9005/9020/9200.)
*10 *14 *14
18
E.a.lO
Cumulative flow event
setting (last 4 digits)
0 0 to 9999
C-07
C-08
C-13
The unit (decimal point
position) may vary depending
on the model.
Flow rate totalization
(P.1-3).
*11
19
E.a.HI
Cumulative flow event
setting (first 4 digits)
0 0 to 9999
*11
20
p.0.dl
PV forced zero function
delay
3.0s 0.0 to 999.9s
C-29
*12
21
SP.l.h
SP upper limit flow rate (100 %
FS)
(0 to 100 % FS)
C-35
Unit : L/min (standard)
(mL/min [standard] for
the MQV9005/9020/9200)
*13 *14 *14
22
SP.l.l
SP lower limit flow rate (0 % FS) (0 to 100 % FS)
*13 *14 *14
*1. Operation during judgment of flow rate OK.
SP
PV
ON(OK)
OFF
0.hy50.hy5
0.rnG0.rnG
*2. Operation during judgment of flow rate deviation upper and lower limit alarms
Be sure to set so that a.lO ≥ a.L.hy or a.hi ≥ a.h.hy.
