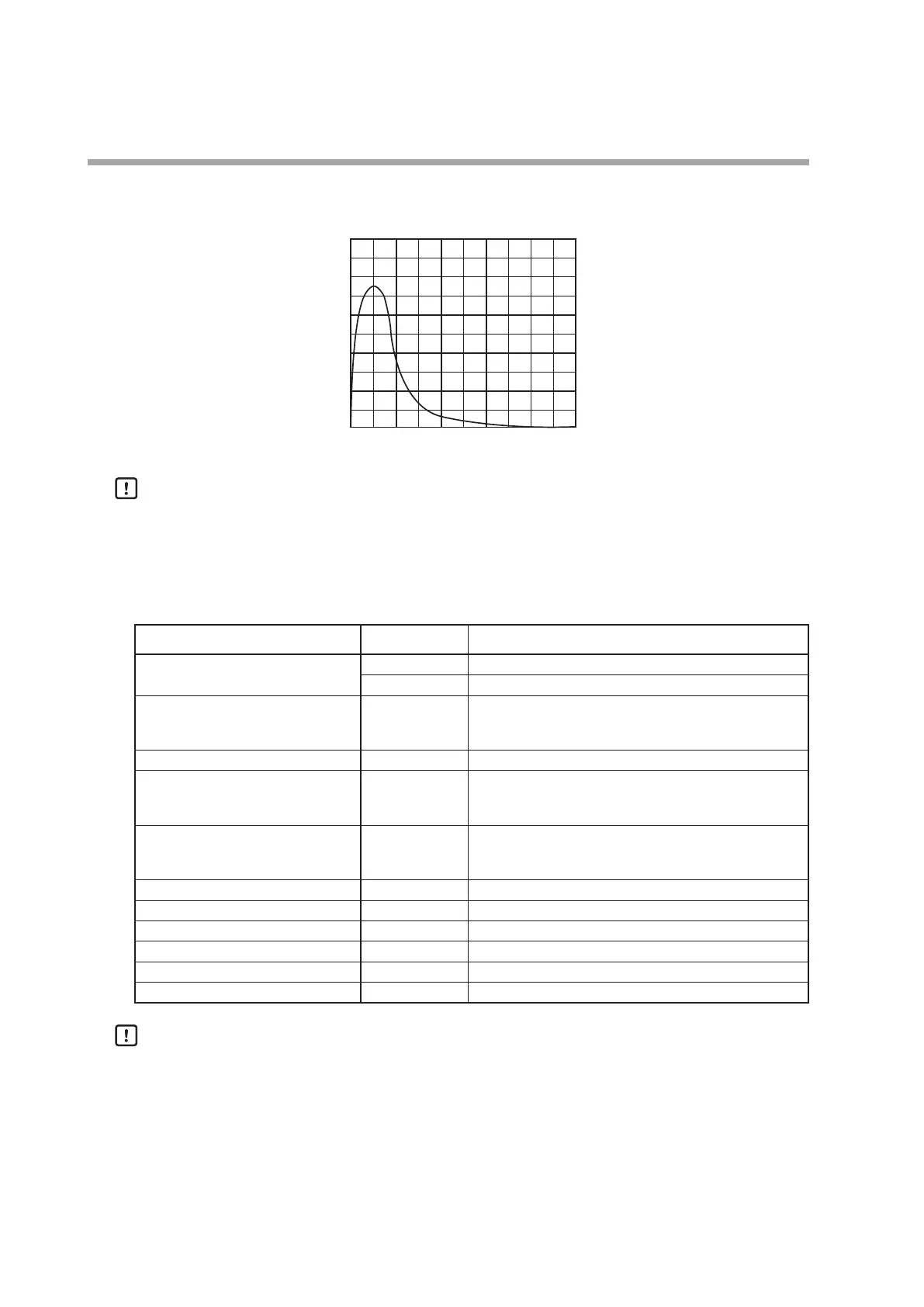

Relationship between differential pressure and outlet flow rate when valve of MQV0500 is fully
closed (air flow under conditions of outlet pressure = 0 kPa (gauge))
0 40 80 120 160
200
0
2
4
6
8
10
Dierential pressure [kPa]
Flow rate [L/min(standard)]
Handling Precautions
•
If this device is used for a gas other than air or if it is operated under conditions
different from the outlet pressure, the conversion needs to be made using the
equation stated on the previous page.

Optional parts (sold separately)
Item Model No. Remarks
Cable with dedicated connector 81446681-001 20-wire flat cable 2 m (AWG#24)
81446951-001 20-wire shielded cable 5 m (7/0.2 mm
2
)
AC adapter 81446957-001 Input rating: 100 to 240 V AC 50/60 Hz 0.4 A
Output rating: 24 V DC/750 mA
Operating temperature range: 0 to 40 °C
Potentiometer for flow rate setting 81446683-002 5 kΩ with digital dial, 10 turns
Front cover for separate display unit 81446858-001 Mask: 1 piece
Plate: 1 piece
Mounting screws: 2 pieces
Loader Package MLP100A100 The MQV can be configured on a PC.
In addition, operating status such as flow rate trends can
be monitored on the PC screen.
Rc 1/4" joint 81446834-001 Set of 2 pieces, O-ring attached, oil-inhibited product
Rc 1/2" joint 81446834-002 Set of 2 pieces, O-ring attached, oil-inhibited product
1/4" Swagelok 81446833-001 Set of 2 pieces, O-ring attached, oil-inhibited product
1/2" Swagelok 81446833-002 Set of 2 pieces, O-ring attached, oil-inhibited product
1/4" VCR 81446895-001 Set of 2 pieces, O-ring attached, oil-inhibited product
1/2" VCR 81446895-002 Set of 2 pieces, O-ring attached, oil-inhibited product
Handling Precautions
•
The old type AC adapter, 81446682-001 (15 V DC, 350 mA), cannot be used for
this device.
