TERMINATION MODULE CONFIGURATION (NICS01)
INTRODUCTION
B - 2 I-E96-207A
®

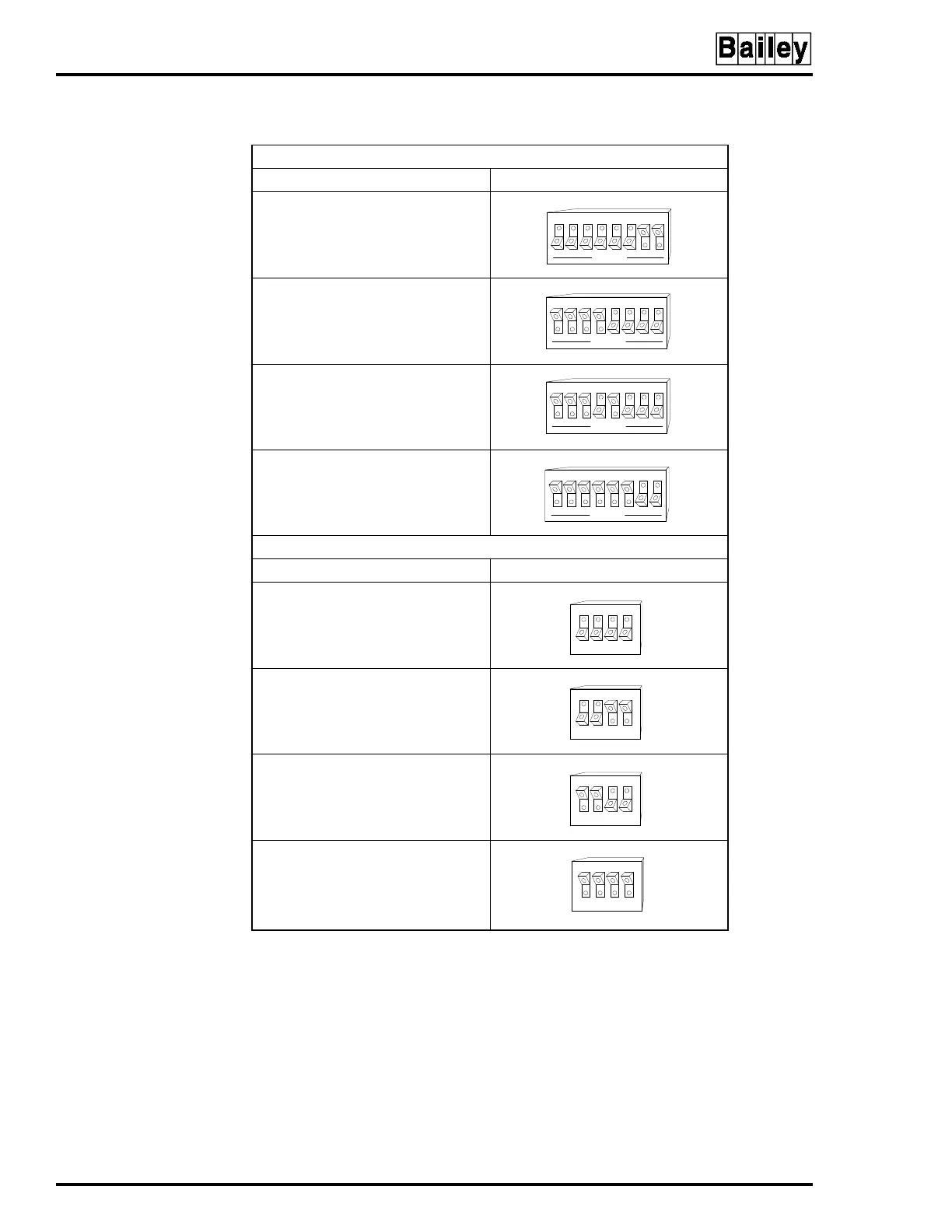

Table B-1. NICS01 Dipswitch Configuration
Analog Input
Application/Signal Type Dipswitch Configuration S1-S4
System powered 4-20 mA
Externally powered 4-20 mA
Single ended voltage
Differential voltage
Analog Output
Application/Signal Type Dipswitch Configuration S5
Both outputs in voltage mode
Output 1 in voltage mode, output 2 in
current mode
Output 1 in current mode, output 2 in
voltage mode
Both outputs in current mode
1 2 3 4 5 86 7
OPEN
12345 867
OPEN
12345 867
OPEN
12345 867
OPEN
1234
OPEN
1234
OPEN
1234
OPEN
1234
OPEN
T00192A
