Installing the Drive 3-3MN762

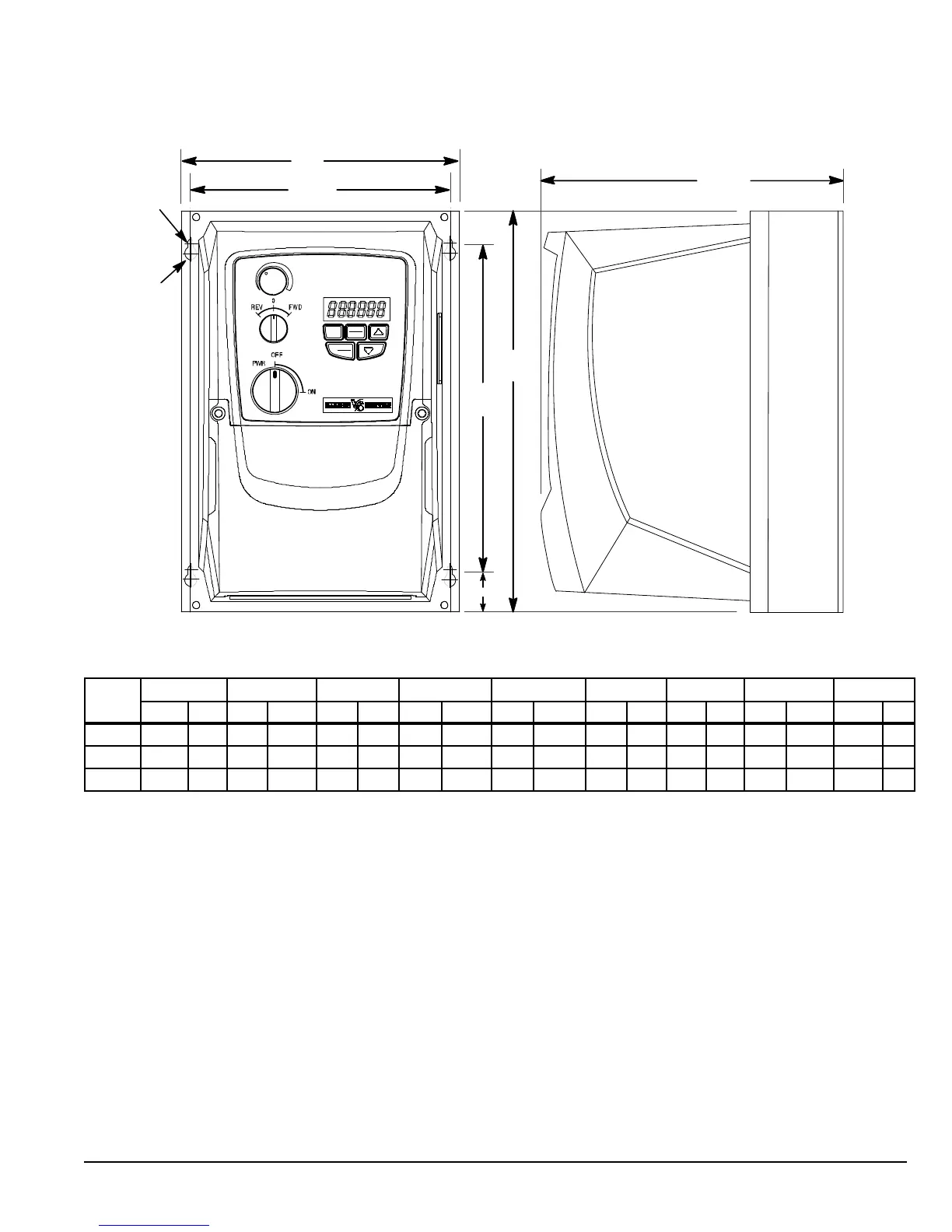

Figure 3-3 NEMA 4X / IP66 Mounting Hole Locations
A
B 1
C
A1
I
J
A2
STOP
RESET
START
PROG
ENT
Table 3-3 NEMA 4X / IP66 Dimensions
Frame
A A1 A2 B B1
I Φ J Φ
C (Depth Weight
in mm in mm in mm in mm in mm in mm in mm in mm lb kg
A 9.13 232 7.44 189 0.98 25 6.34 161 5.85 148.5 0.16 4.0 0.31 8.0 7.05 179 5.07 2.3
B 10.12 257 7.87 200 1.12 28.5 7.4 188 6.93 176 0.17 4.2 0.33 8.4 7.34 186.5 9.92 4.5
C 12.20 310 9.90 251.5 1.31 33.4 8.29 210.5 7.78 197.5 0.17 4.2 0.33 8.4 9.0 228.7 19.84 9.0
Control Terminal Torque Settings of 4.5 lb-in (0.5 Nm)
Power Terminal Torque Settings of 9 lb-in (1 Nm)
