6.2.3 Custom Display Unit
Parameter P-23 is used to congure the display and show custom units based on the scale factor assigned. When a value
other than zero is assigned to P-23, a new display is enabled in operational mode. If P-04=0, P-23 will scale units in Hertz,
and if P-04 is not zero, P-23 will scale the RPM units set by P-04 (see display examples set below):

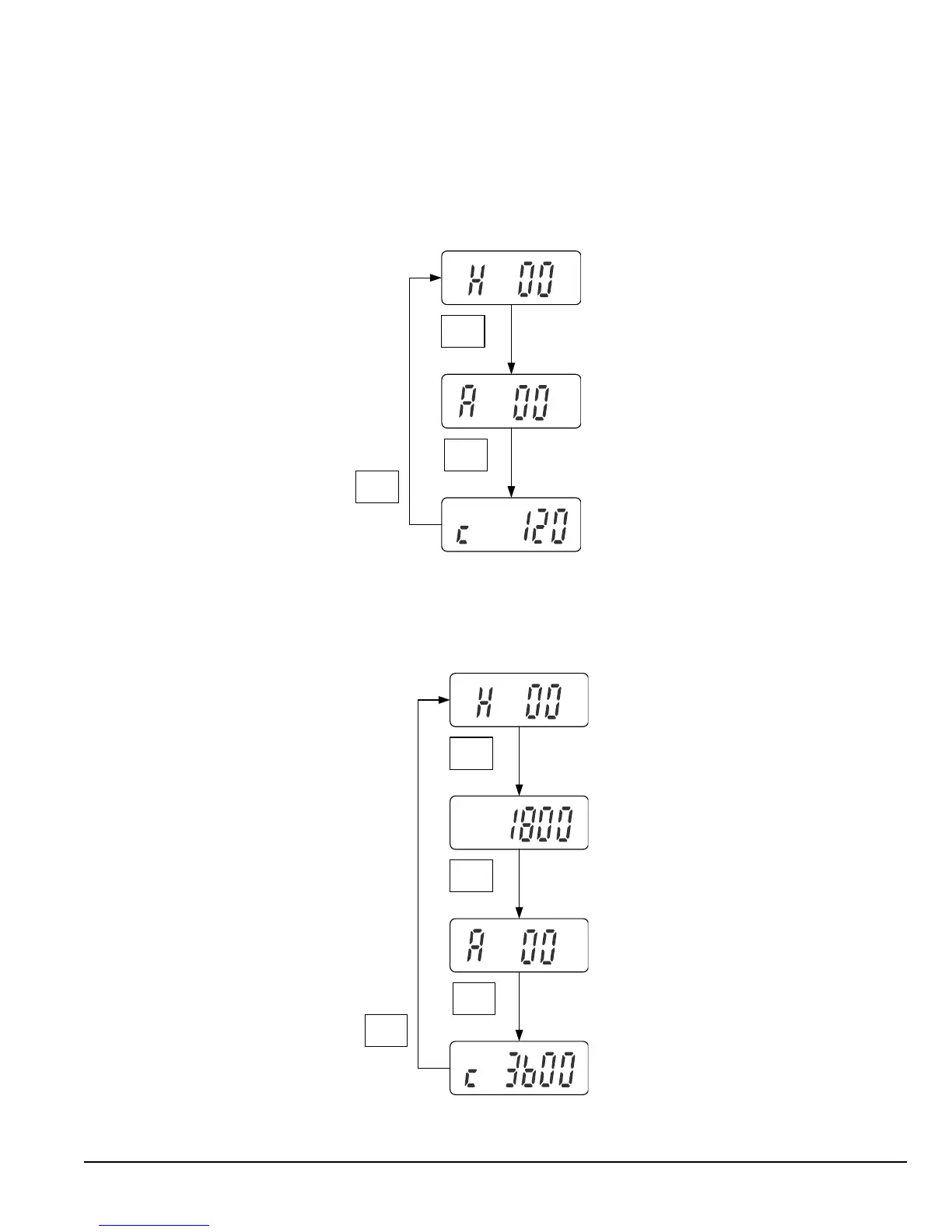

Figure 6-3 Custom Display
P-04 = 0, P-23=2.0
ENT
PROG
ENT
PROG
ENT
PROG
Figure 6-4 Custom Display with RPM
P-04 = 1800, P-23 = 2.0
ENT
PROG
ENT
PROG
ENT
PROG
ENT
PROG
