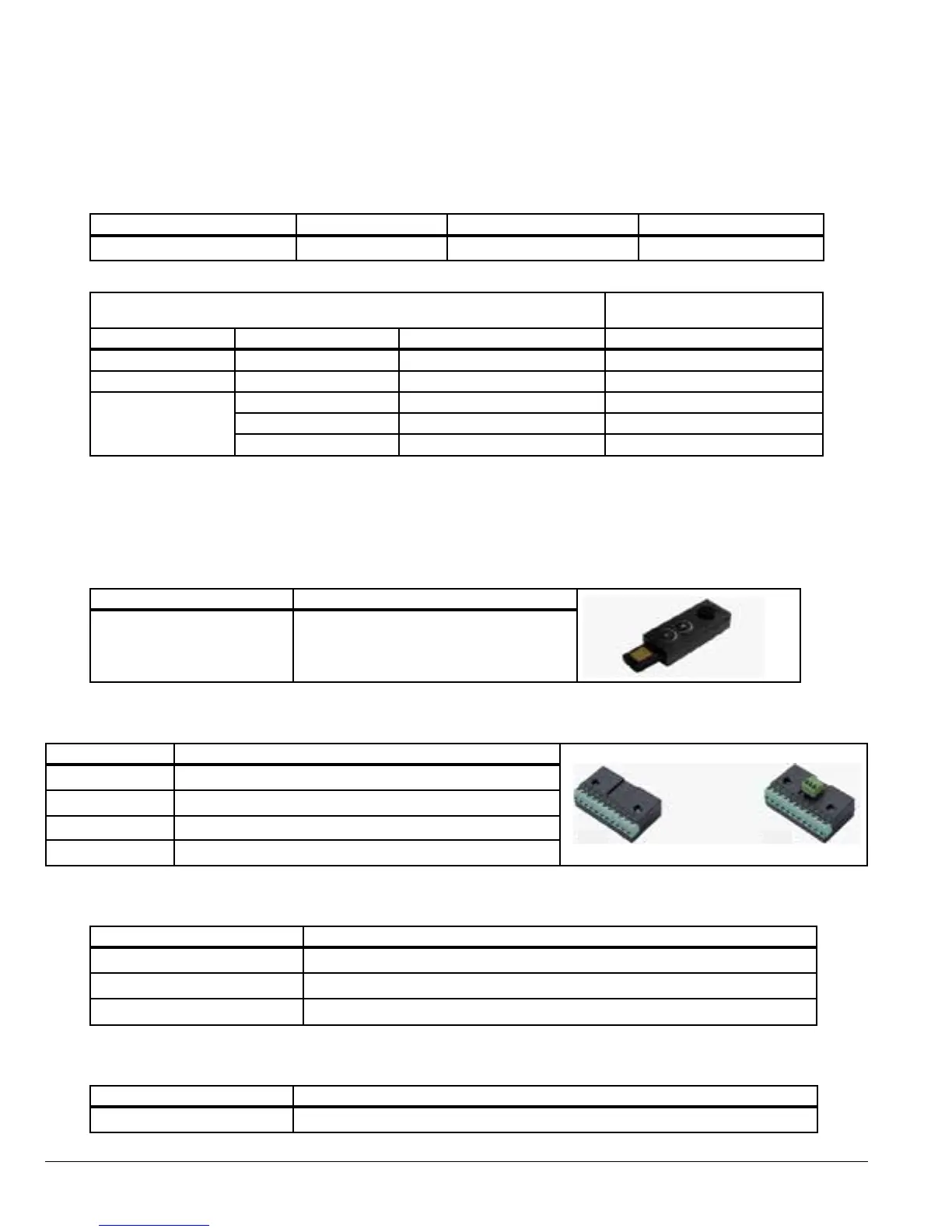

D-2 Options and Kits MN762
VS1MX Dynamic Braking Resistors
VS1MX Frame B and C drives include built-in braking transistors to aid in applications requiring the ability to stop rapidly.
The brake resistor must be mounted and secured in place. Two wires connect to the + and BR terminals on the power strip
of the size B or the larger enclosure. Refer to Table 4-1 for minimum brake resistor values if a value that is larger than the
stock resistor kit is required.
Table D-3 Dynamic Braking Resistor
Catalog Number Ohms Wattage Frame
VS1MX-R50W200 50 200 B & C
Table D-4 Minimum Resistor Values
Drive Voltage Rating
Minimum Resistor Value
(Ohms)
Volts HP kW
115VAC 2 - 47
230VAC 2 to 5 1.5 to 4 47
460VAC
2 to 3 1.5 to 2.2 100
5 4 100
7.5 to 10 5.5 to 7.8 47
When the standard brake resistor kit is used, set P-34=1.
This provides software thermal protection for the standard 200W brake resistor kit.
When special brake resistors are used, set P-34=2.
No software thermal protection is provided in this setting and an external thermal device is required to protect the resistor.
CopyCat Loader
Connects to the RJ45 Port on the front of the VS1MX and allows the upload or download of software parameters.
Table D-5 CopyCat Loader
Catalog Number Description
VS1ST-CCL VS1ST and VS1MX RJ45 CopyCat Loader
Option Cards for VS1MX
Provides additional relay outputs for signal and control.
Table D-6 Option Cards
Catalog Number Description
2ROUT
HVAC
VS1ST-2ROUT Provides one additional relay output for the drive
VS1ST-HVAC Provides 2 relays for drive running & drive tripped indicators
VS1ST-LOGHV-11 Provides the ability to accept 100-120VAC control inputs
VS1ST-LOGHV-23 Provides the ability to accept 200-240VAC control inputs
VS1MX Field Bus Gateways
Connects the VS1MX Modbus RTU RS485 communication interface to the eld bus gateway.
Table D-7 Field Bus Gateways
Catalog Number Description
VS1ST-PBUS Probus Gateway
VS1ST-DNET DeviceNet Gateway
VS1ST-ENET Ethernet Gateway
VS1MX Padlock
Provides a padlock to lockout the disconnect switch.
Table D-8 Lockout Device
Catalog Number Description
VS1MX-ILOCK VS1MX Disconnect Switch Padlock
