www.balluff.com 21english
Accessories are not included in the scope of delivery and
must be ordered separately.
9.1 Magnets

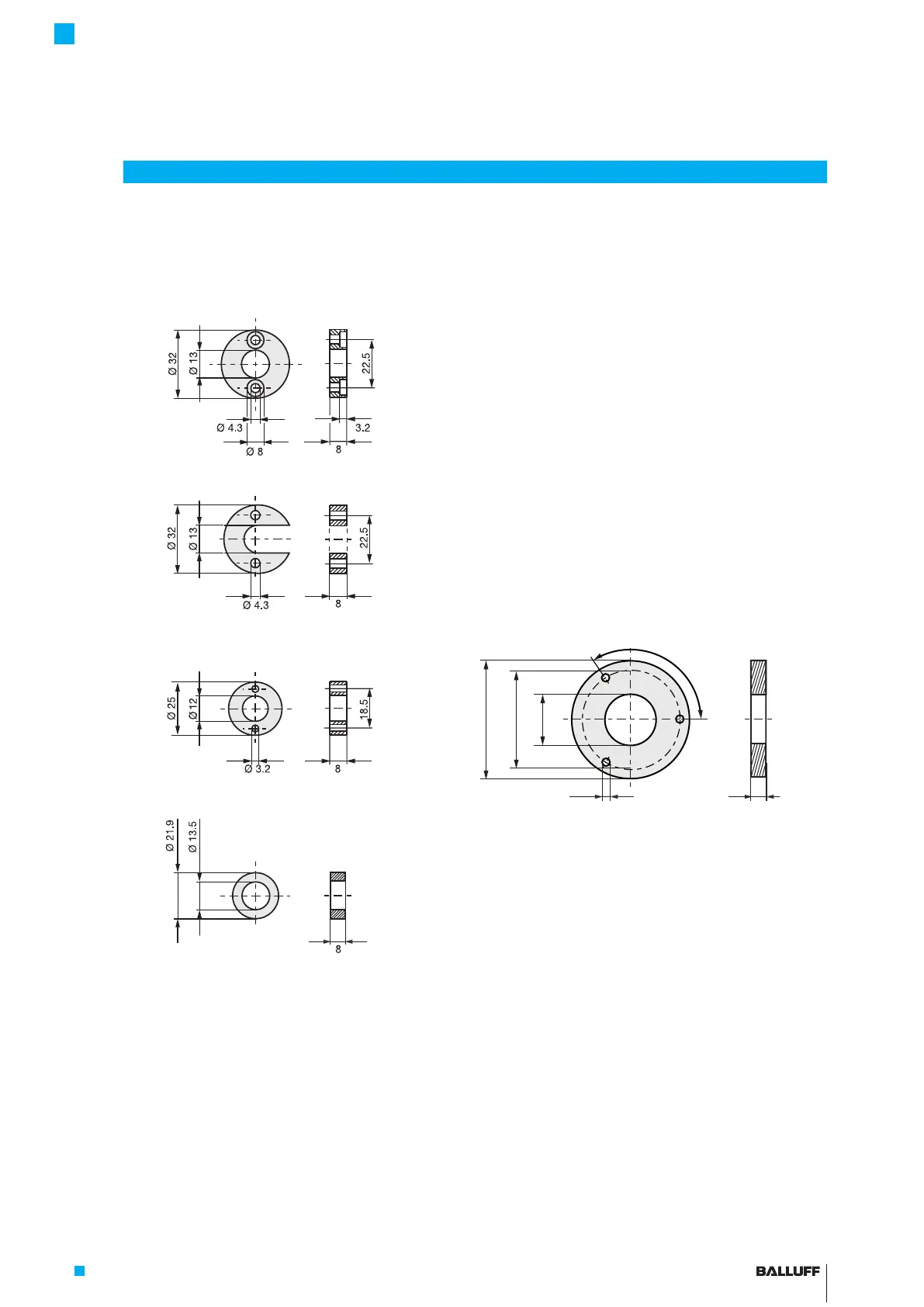

Fig. 9-1:
BTL-P-1013-4R
BTL-P-1013-4S
BTL-P-1012-4R
BTL-P-1014-2R
BTL-P-0814-GR-PAF
Magnet installation dimensions
BTL-P-1013-4R, BTL-P-1013-4S, BTL-P-1012-4R,
BTL-P-1014-2R:
Weight: Approx. 10g
Housing: Aluminum
The scope of delivery for BTL-P-1013-4R,
BTL-P-1013-4S, BTL-P-1012-4R magnets includes:
Spacer: 8mm, material: polyoxymethylene
(POM)
BTL5-P-4500-1 magnet (solenoid):
Weight: Approx. 90g
Housing: Plastic
Operating
temperature: – 40°C…+ 60°C
BTL-P-1028-15R (special accessories for
applications with a supporting rod):
Weight: Approx. 68g
Housing: Aluminum
Ø 4.3
120°
Ø 28 Ø 54
Ø 65
8
9.2 Mounting nut
– Mounting nut M18×1.5:
BTL-A-FK01-E-M18×1.5
– 3/4”-16UNF mounting nut:
BTL-A-FK01-E-3/4”-16UNF
9
Accessories
BTL7-S5 __ (B)-M ____ -A/B/Y/Z(8)-S32/S115/S140/S147/KA __ /FA __
Micropulse Transducer - Rod Style
