www.balluff.com 23english
9

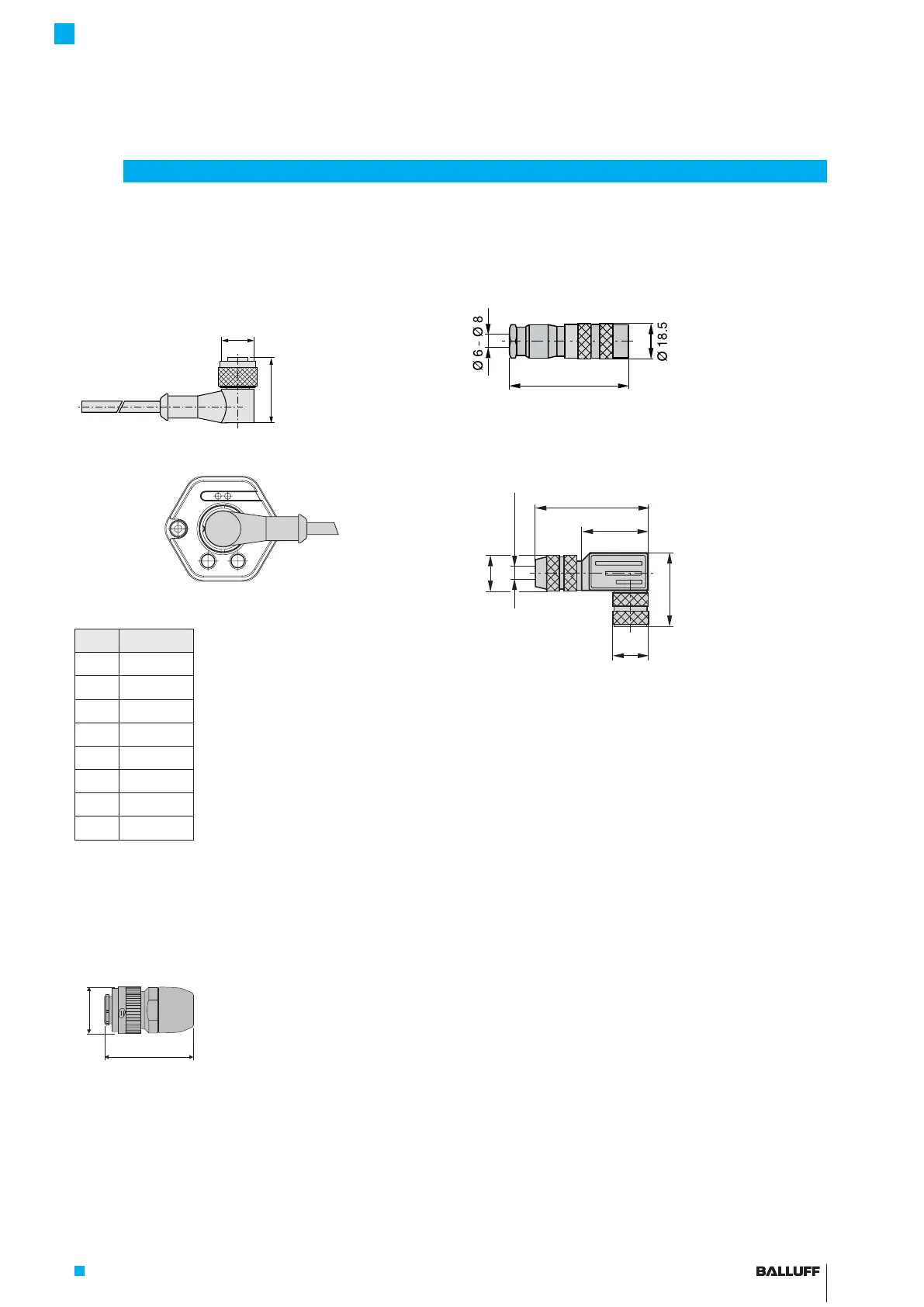

Accessories (continued)
BKS-S116-PU-_ _
Angled connector, molded-on cable, preassembled
M12, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S116-PU-05: Cable length 5m
Fig. 9-7:
28
M12x1
Connector BKS-S116-PU-_ _
Fig. 9-8:
Connector BKS-S116-PU-_ _, outlet
Pin Color
1 YE yellow
2 GY gray
3 PK pink
4 RD red
5 GN green
6 BU blue
7 BN brown
8 WH white
Tab. 9-2: BKS-S115/S116-PU-_ _ pin assignment
9.3.4 BKS-S140-23-00, freely configurable
BKS-S140-23-00
Straight connector, field attachable
10-pin
Fig. 9-9:
50
Ø 26
Connector type BKS-S140-23-00
9.3.5 BKS-S147/S148M-00, freely configurable
BKS-S147M-00
Straight connector, field attachable
M16 per IEC130-9, 7-pin
Fig. 9-10:
~ 62
Connector type BKS-S147M-00
BKS-S148M-00
Angled connector, field attachable
M16 per IEC130-9, 7-pin
Fig. 9-11:
Ø 18
31
37.2
Ø 20
Ø 6 - Ø 8
~ 54
Connector type BKS-S148M-00
9.4 USB communication box
BTL7-A-CB01-USB-S32
For BTL7-S510(B)-… with connector type S32.
Scope of delivery: USB communication box, USB cable,
2adapter cables each approx. 0.3m, condensed guide.
BTL7-A-CB01-USB-S115
For BTL7-S510(B)-… with connector type S115.
Scope of delivery: USB communication box, USB cable,
2adapter cables each approx. 0.3m, condensed guide.
BTL7-A-CB01-USB-S140
For BTL7-S510(B)-… with connector type S140.
Scope of delivery: USB communication box, USB cable,
2adapter cables each approx. 0.3m, condensed guide.
BTL7-A-CB01-USB-KA
For BTL7-S510(B)-… with cable connection.
Scope of delivery: USB communication box, USB cable,
1adapter cable each approx. 0.6m, condensed guide.
BTL7-S5 __ (B)-M ____ -A/B/Y/Z(8)-S32/S115/S140/S147/KA __ /FA __
Micropulse Transducer - Rod Style
