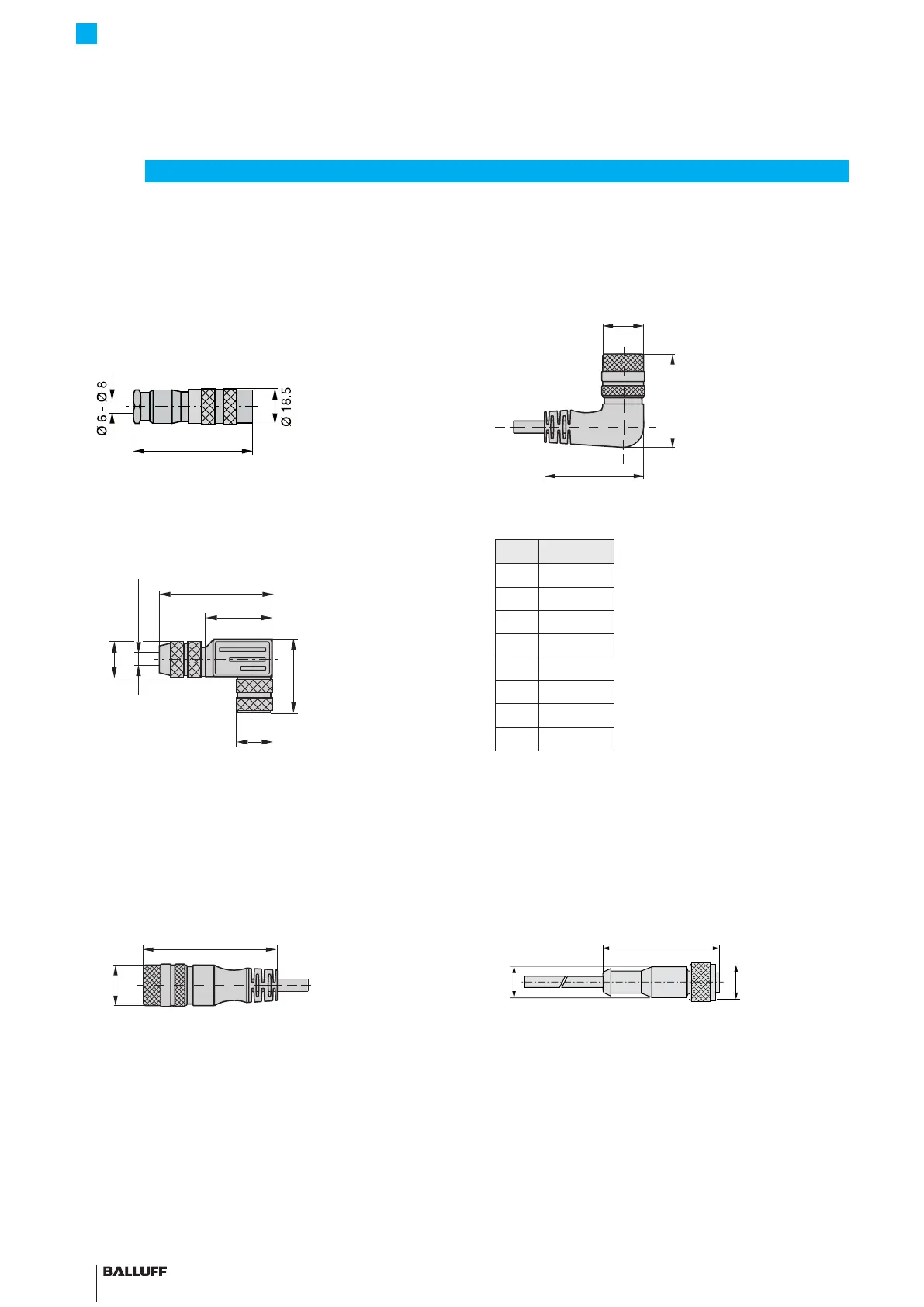

9.3 Connectors and cables
9.3.1 BKS-S32/S33M-00, freely configurable
BKS-S32M-00
Straight connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 9-2:
~ 62
Connector BKS-S32M-00
BKS-S33M-00
Angled connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 9-3:
Ø 18
31
37.2
Ø 20
Ø 6 - Ø 8
~ 54
Connector BKS-S33M-00
9.3.2 BKS-S232/S233-PU-_ _, preassembled
BKS-S232-PU-_ _
Straight connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S232-PU-05: Cable length 5m
Fig. 9-4:
Ø 20
66
Connector BKS-S232-PU-_ _
BKS-S233-PU-_ _
Angled connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S233-PU-05: Cable length 5m
Fig. 9-5:
Ø 20
46
48.5
Connector BKS-S233-PU-_ _
Pin Color
1 YE yellow
2 GY gray
3 PK pink
4 RD red
5 GN green
6 BU blue
7 BN brown
8 WH white
Tab. 9-1: BKS-S232/S233-PU-_ _ pin assignment
9.3.3 BKS-S115/S116-PU-_ _, preassembled
BKS-S115-PU-_ _
Straight connector, molded-on cable, preassembled
M12, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S115-PU-05: Cable length 5m
Fig. 9-6:
43
Ø 13.5
M12x1
Connector BKS-S115-PU-_ _
9
Accessories (continued)
BTL7-S5 __ (B)-M ____ -A/B/Y/Z(8)-S32/S115/S140/S147/KA __ /FA __
