1.18 Use Cases 171

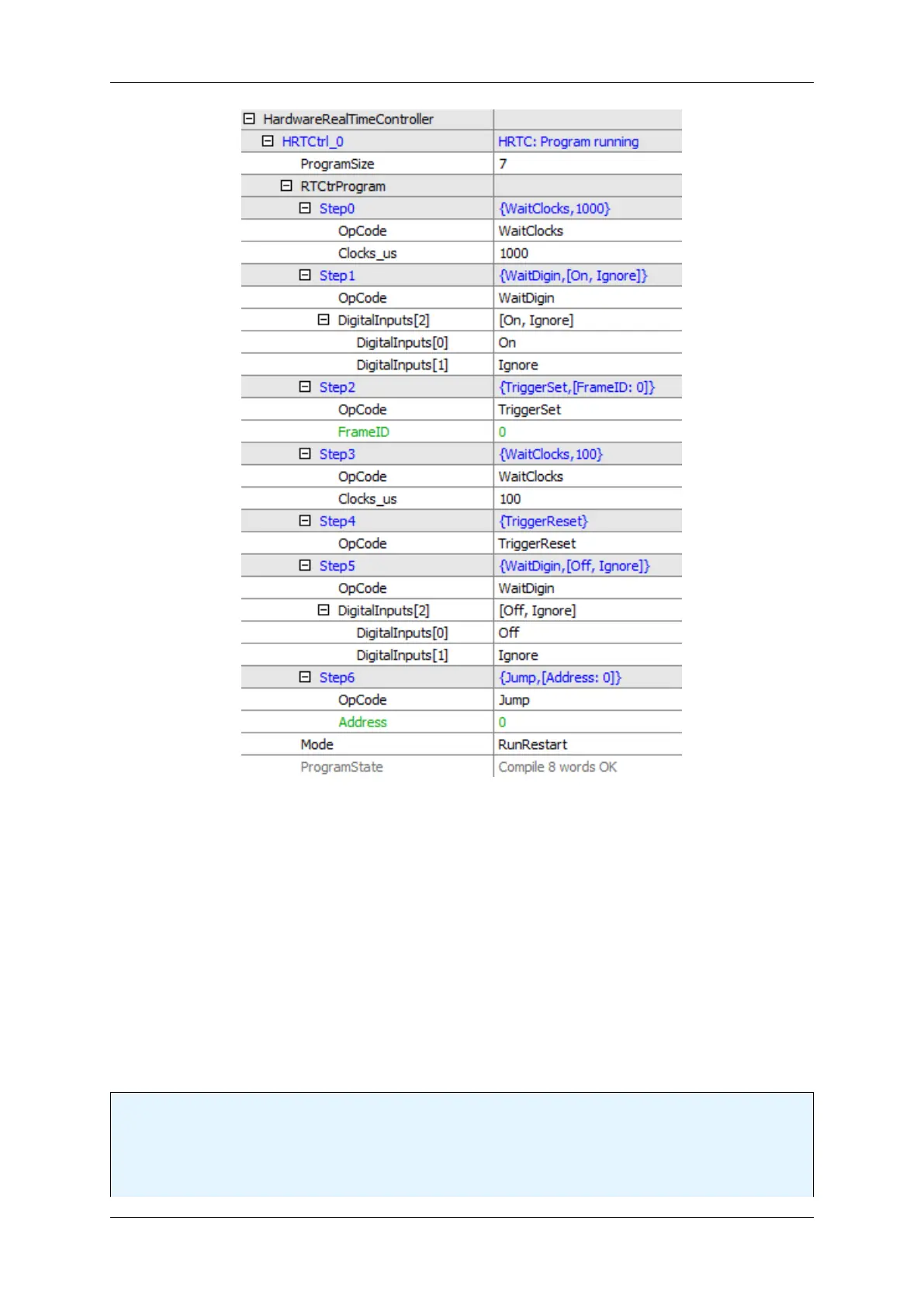

Figure 2: wxPropView - Edge controller triggering using HRTC
See also
Download this sample as a capture settings file: MLC200wG_HRTC_TriggerFromHighLevelTo←-
EdgeControl.xml. How you can work with capture settings in wxPropView (p. 68) is described in "←-
Setting Up Multiple Display Support, Working With Several Capture Settings In Parallel" in the "mv←-
IMPACT Acquire SDK GUI Applications" manual.
To see a code sample (in C++) how this can be implemented in an application see the description of the class
mvIMPACT::acquire::RTCtrProgram (C++ developers)
1.18.10.7 Delay the expose start of the following camera (HRTC)
Note
Please have a look at the Hardware Real-Time Controller (HRTC) (p. 70) chapter for basic information.
The use case Synchronize the cameras to expose at the same time (p. 137) shows how you have to
connect the cameras.
MATRIX VISION GmbH
