1.9.3.4 Accessories mvBlueFOX-Mxxx
1.9.3.4.1 mvBlueFOX-M-FC-S The mvBF-M-FC-S contains high capacity condensers with switching electron-
ics for transferring stored energy of the condensers to external flash LEDs. It is possible to connect 2 pushbut-
tons/switches to the 8-pin header (CON3 - Control connector). Additionally, 2 LED interfaces are available. There
are two version of mvBF-M-FC-S:
• Model 1 can be connected to mvBlueFOX-M with a cable via CON5.
• Model 2 can be mounted on the mvBlueFOX-M via CON1 directly.

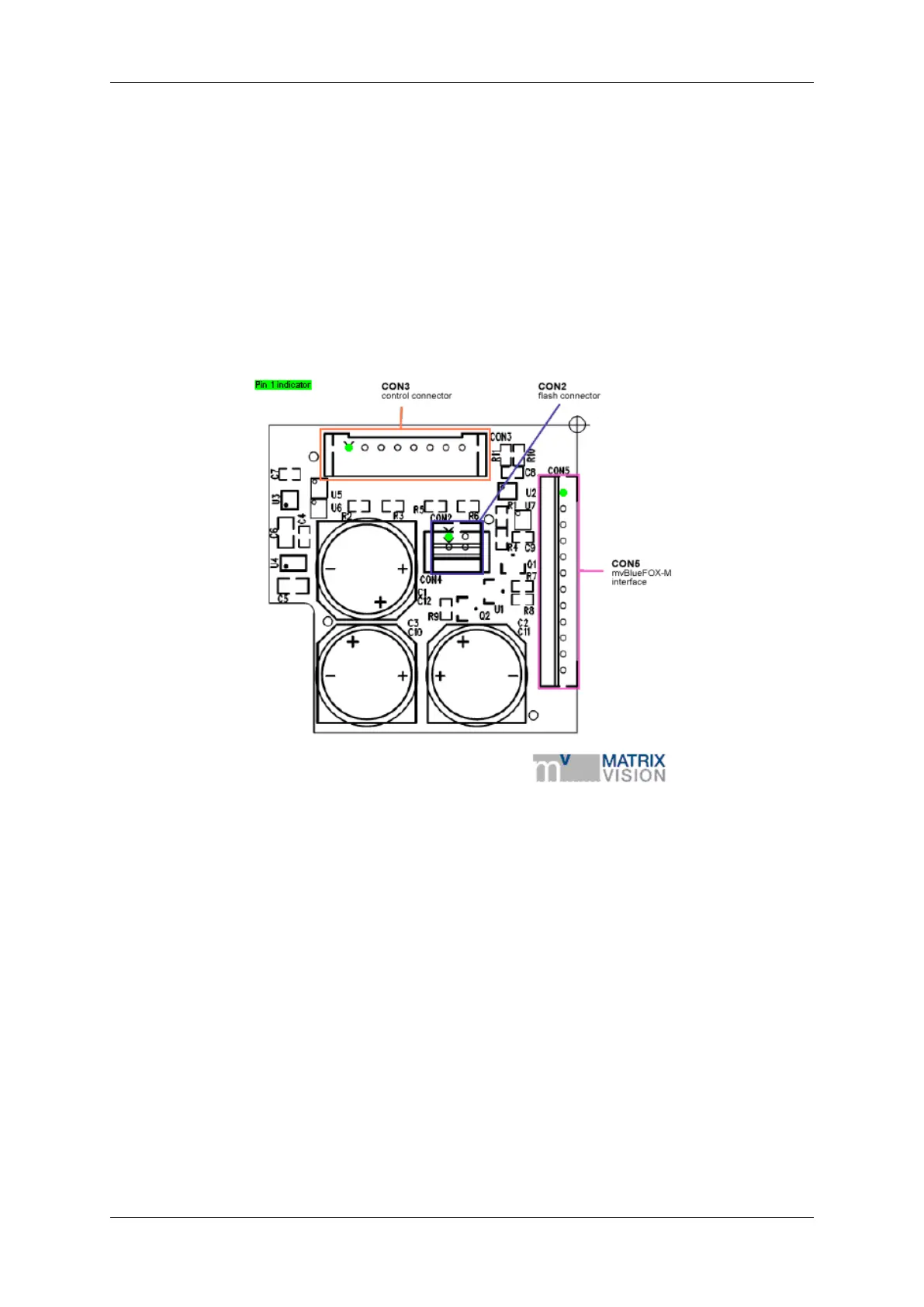

Figure 17: Model 1 with CON5 connector
