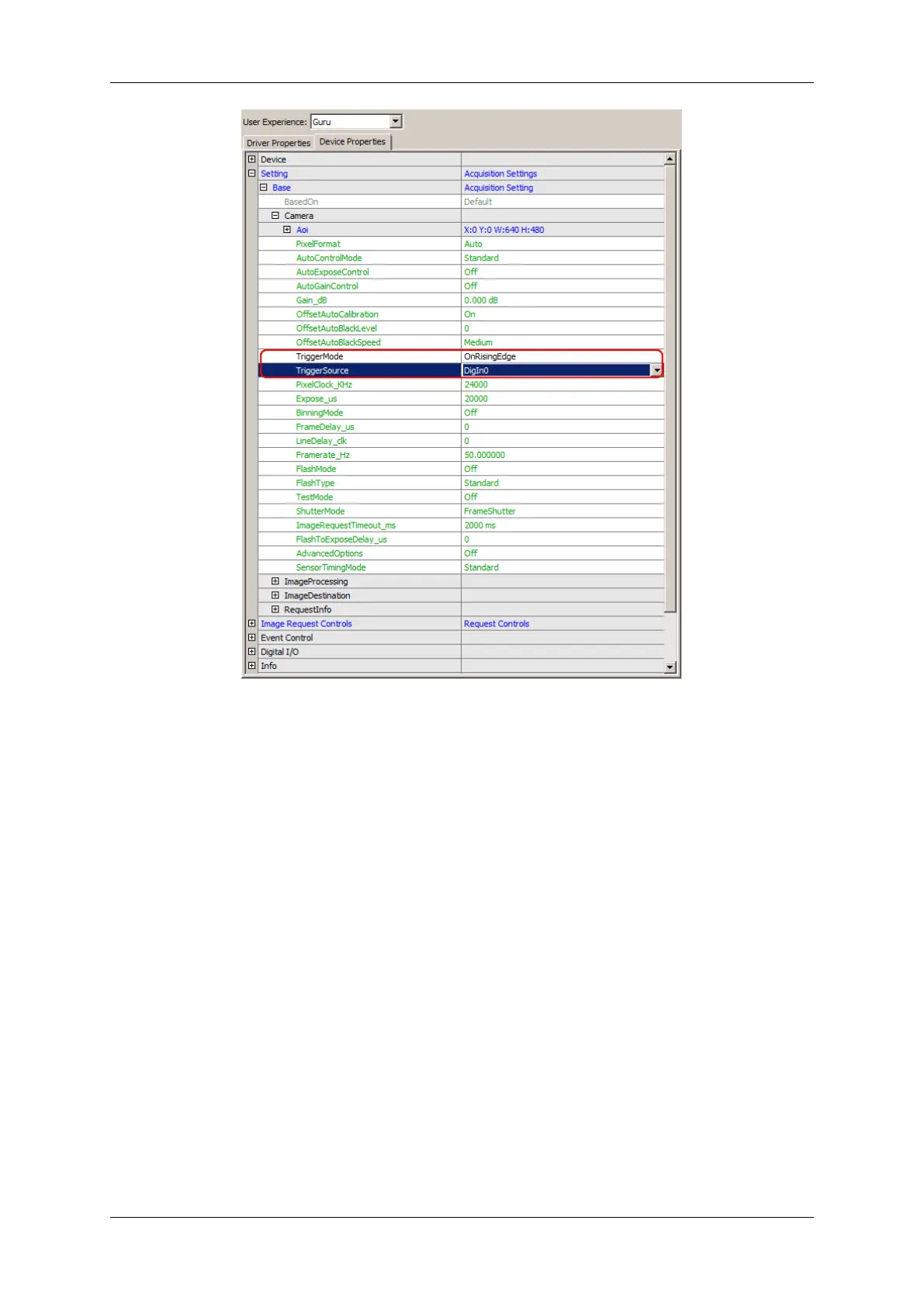

Figure 2: wxPropView - Setup for sync. cameras
This assumes that the image acquisition shall start with the rising edge of the trigger signal. Every camera must be
configured like this. Each rising edge of the external trigger signal then will start the exposure of a new image at
the same time on each camera. Every trigger signal that will occur during the exposure of an image will be silently
discarded.
1.18.5 Working with HDR (High Dynamic Range Control)
There are several use cases concerning High Dynamic Range Control:
• Adjusting sensor of camera models -x00w (p. 138)
• Adjusting sensor of camera models -x02d (-1012d) (p. 141)
1.18.5.1 Adjusting sensor of camera models -x00w
1.18.5.1.1 Introduction
The HDR (High Dynamic Range) mode of the sensor -x00w increases the usable contrast range. This is achieved
by dividing the integration time in two or three phases. The exposure time proportion of the three phases can be set
independently. Furthermore, it can be set, how much signal of each phase is charged.
