1.13 HRTC - Hardware Real-Time Controller 71

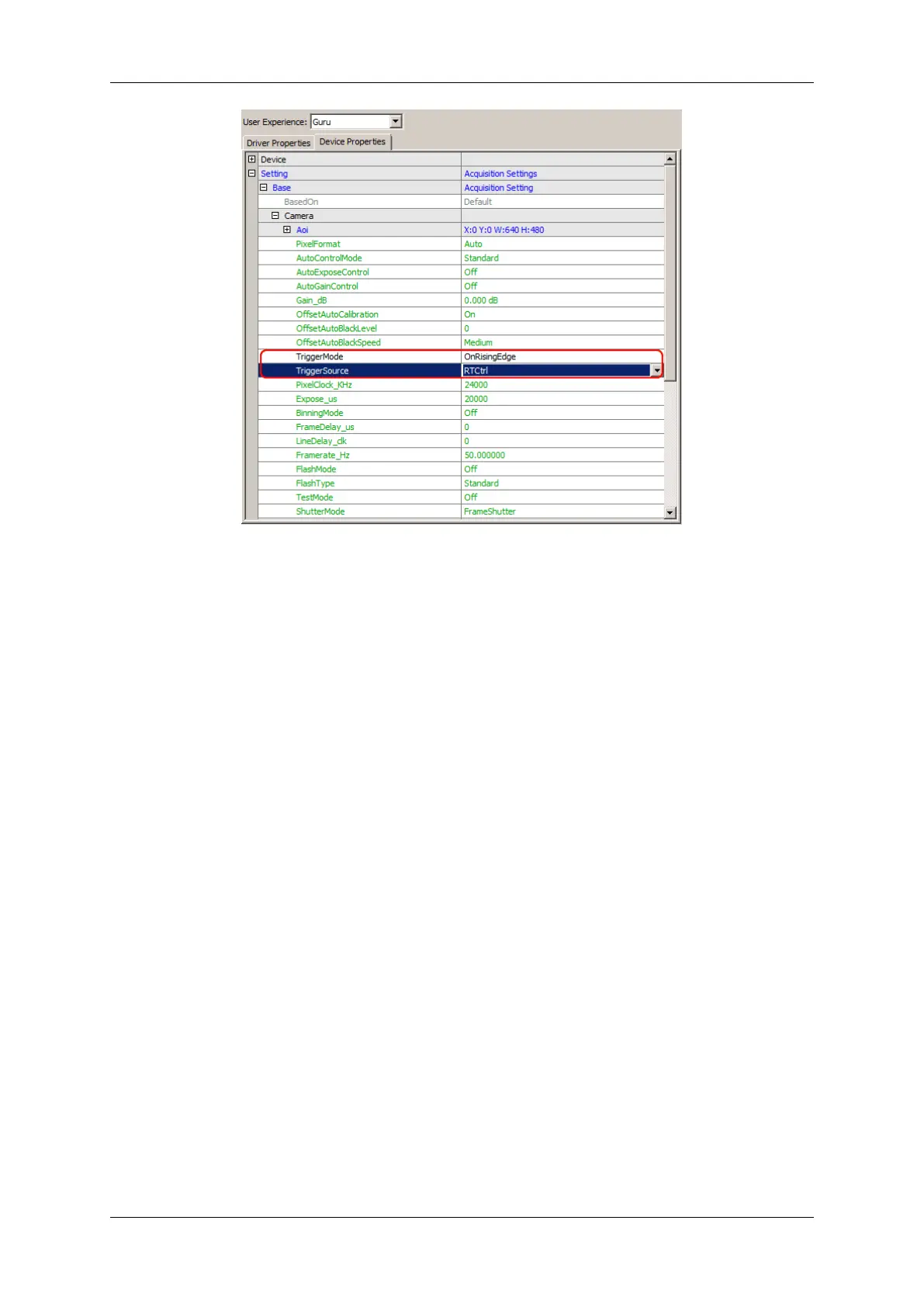

Figure 1: wxPropView - Setting up the HRTC usage
Following trigger modes can be used with HRTC:
OnLowLevel
OnHighLevel
OnFallingEdge
OnRisingEdge
OnHighExpose
Further details about the mode are described in the API documentation:
See also
TCameraTriggerMode and TCameraTriggerSource in
"Enumerations (C developers)"
"CameraSettingsBlueFOX (C++ developers)"
In the Use Cases (p. 91) chapter there are the following HRTC sample:
"Using single camera" :
Achieve a defined image frequency (HRTC) (p. 164)
Delay the external trigger signal (HRTC) (p. 166)
Creating double acquisitions (HRTC) (p. 167)
Take two images after one external trigger (HRTC) (p. 167)
Take two images with different expose times after an external trigger (HRTC) (p. 168)
"Using multiple cameras" :
Delay the expose start of the following camera (HRTC) (p. 171)
