Push Button Remote
0.04 sec. ≤ T ≤ 0.8 sec.
Result
Single-click both buttons simultaneously. Triple-pulse the remote line.*
Pointer icon: moves to the other
channel indicator.
* Note: Triple-pulse will change the display, but will not save. To save Channel Select, make an adjustment to that
channel as a TEACH, SET, or Sensor Setup.
Two-Point Static TEACH (Threshold)
• Establishes a single switching threshold
• Threshold position is adjustable using “+” and “-” buttons (see Manual
Adjust on page 9)
Static TEACH is the traditional setup method, used when two conditions can be
presented by the user. The sensor locates a single sensing threshold (the
switchpoint) midway between the two taught conditions, with the Output ON
condition on one side, and the Output OFF condition on the other.
The first condition taught is the ON condition. The Output ON and OFF conditions
can be reversed by changing Light/Dark Operate status in Setup mode (see
Sensor Setup on page 10 ).
Sensor positions
threshold midway
between taught conditions
Darkest
(no signal)
Most Light
(saturated
signal)
Output OFF Output ON
2nd Taught
Condition
1st Taught
Condition
Position
adjusted by
Manual Adjust

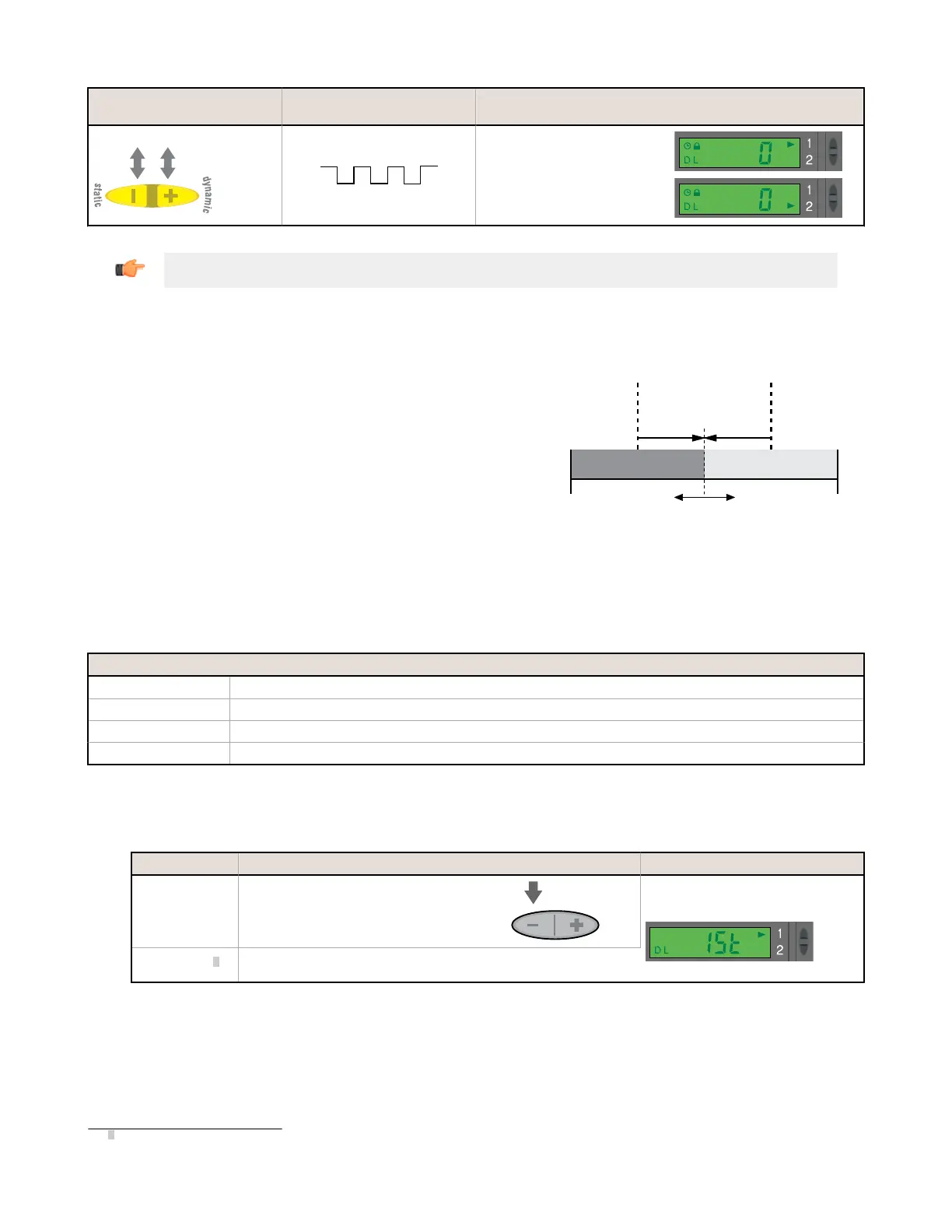

Figure 4. Static TEACH (Light Operate shown)
Static TEACH and Manual Adjust. Discrete output: Using Manual Adjust with Static TEACH moves the switching threshold.
Analog output: Using Manual Adjust with Static TEACH moves the entire span up (+) or down (-).
Contrast Values
500+ Excellent: Very stable operation.
100-500 Good: Minor sensing variables will not affect sensing reliability.
32-99 Low: Minor sensing variables may affect sensing reliability.
0-31 Marginal: Consider an alternate sensing scheme.
Figure 5. Contrast Values
1. Access the Static TEACH Mode.
Method
Action Result
Push Button Press and hold the Static (-) button > 2 seconds.
• Display flashes “1St”
• Arrow icon turns red
Remote Input
2
No action is required; the sensor is automatically ready for the 1st TEACH
condition
2. TEACH the Output ON condition.
2
0.04 seconds ≤ T ≤ 0.8 seconds
D10 Expert
™
- Analog and Discrete Outputs
4 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 65448 Rev. G
