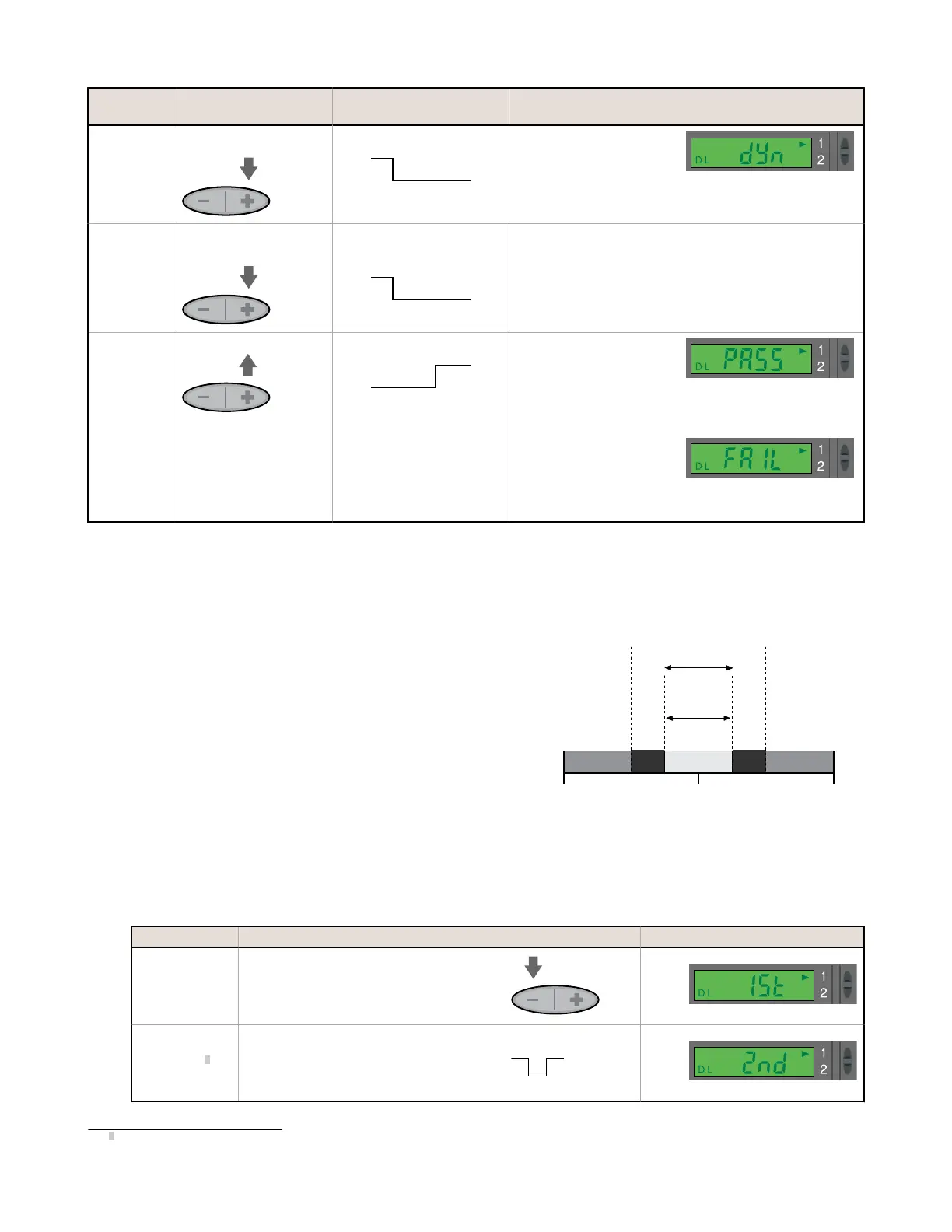

Push Button Remote
0.04 sec. ≤ T ≤ 0.8 sec.
Result
Access
Dynamic TEACH
Mode
Press and hold Dynamic (+)
button.
Hold remote line low (to ground).
• Display flashes “dYn”
• Arrow icon turns red
TEACH Sensing
Conditions
Present Output ON/OFF
conditions while continuing to
hold Dynamic button.
Present Output ON/OFF conditions
while continuing to hold remote line
low (to ground).
Return to RUN
Mode
Release Dynamic button.
Release remote line/switch.
TEACH conditions accepted
• Display flashes “PASS,”
followed by a number
(denoting contrast); see
Figure 7 on page 5
• Sensor returns to RUN
mode with new settings
• Arrow icon turns green
TEACH conditions unacceptable
• Display flashes “FAIL”
• Arrow icon remains red
• Sensor returns to RUN
mode (Arrow icon turns
green) without changing
settings
Single-Point Window Set
• Sets a single ON condition that extends 200 counts above and below the taught condition (including ±100 counts hysteresis)
• All other conditions (lighter or darker) result in OFF output
• Sensing window size (sensitivity) is adjustable using “+” and “-” buttons (see Manual Adjust on page 9)
Window Set is most useful when a product may not always appear in the same
place, or when other signals may appear. Window Set designates a sensing
window, with the Output ON condition inside the window, and the Output OFF
conditions outside the window. The sensor accepts a single sensing condition,
and adds switching thresholds and hysteresis above and below that condition
to create a sensing window. Output ON and OFF conditions can be reversed by
changing Light/Dark Operate status in Setup mode.
Window Set and Manual Adjust
Discrete: Using Manual Adjust with Window Set expands or contracts the size
of the window.
Analog: Analog manual adjust increases (+) or decreases (-) counts on both
ends by the same amount, but it does not rescale. Cycling the power will
rescale the window and adjustments.
Sensor positions
window thresholds
± 100 counts from the
presented condition
Darkest
(no signal)
Most Light
(saturated
signal)
Taught
Condition
200 counts
Hysteresis
100 counts
Hysteresis
100 counts
Output OFF Output OFFOutput ON
Sensing window size adjusted by
Manual Adjust
Figure 8. Single-Point Window SET and Hysteresis (Light
Operate shown)
1. Access the SET Mode.
Method
Action Result
Push Button Press and hold the Static (-) button > 2 seconds
• Display flashes “1St”
• Arrow icon turns red
Remote Input
4
a. Present the sensing condition
b. Single-pulse the remote line
• Display flashes “2nd”
• Arrow icon turns red
4
0.04 seconds ≤ T ≤ 0.8 seconds
D10 Expert
™
- Analog and Discrete Outputs
6 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 65448 Rev. G
