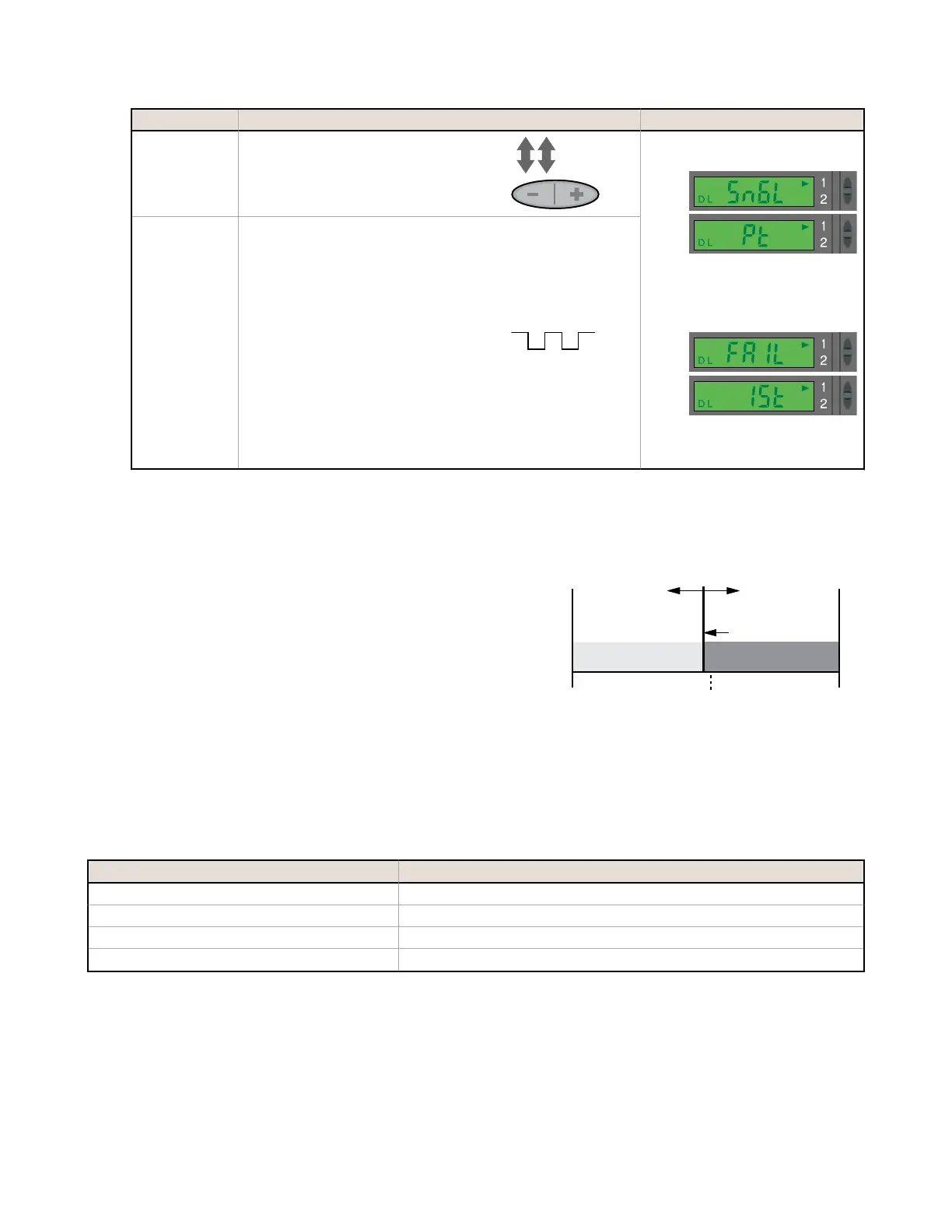

2. SET the sensing condition.
Method Action Result
Push Button
a. Present the sensing condition
b. Double-click the Static button
TEACH conditions accepted
• Display flashes “Sn6l,” then "Pt"
twice
• Sensor returns to RUN mode with new
settings
• Arrow icon turns green
TEACH conditions unacceptable
• Display flashes “FAIL” and returns to
“1St”
• Arrow icon remains red
• After 60 seconds, the sensor returns
to RUN mode (Arrow icon turns
green) without changing settings
Remote Input Double-pulse the remote line
T T
T
Single-Point Light Set - Discrete Only
• Sets a threshold slightly below the taught condition.
• Any condition darker than the threshold condition causes the output to
change state
• Threshold position is adjustable using the “+” and “-” buttons (see
Manual Adjust on page 9)
• Recommended for applications where only one condition is known, for
example a stable light background with varying darker targets
A single sensing condition is presented, and the sensor positions a threshold
slightly below the presented condition. When a condition darker than the
threshold is sensed, the output either turns ON or OFF, depending on the Light/
Dark Operate setting (see Sensor Setup on page 10).
Threshold position
adjusted by
Manual Adjust
Sensor positions
threshold slightly below
the presented condition
Darkest
(no signal)
Most Light
(saturated
signal)
Output OFF
Output ON
Condition
Presented
Figure 9. Single-Point Light Set (Light Operate shown)
Light SET and Light/Dark Operate Selection
Light Set teaches the Output OFF condition and forces the sensor into Dark Operate (DO) mode. The sensor can be reconfigured to Light
Operate (LO) mode after the condition has been taught (see Sensor Setup on page 10).
Mode
Threshold Offset (counts below taught signal value)
Super High-Speed 30
High-Speed 22
High-Power 9
Super High-Power 6
Figure 10. Light Set Threshold Offset
1. Access the SET Mode.
D10 Expert
™
- Analog and Discrete Outputs
