12. Convergence
4. To translate RED horizontally in the X - direction, turn [3] a nti-clockwise.
5. For clockwise rotations of RED, turning [1] anti-clockwise would generally suffice. If m uch rotation is req uired, [2] may als o be
turned in the opposite direc tion. Slight corrections to Y may be required after rotation.
6. For anti-clockwise rotations of RED, turning [1] clockwise would generally suffice. If m uch rotation is req uired, [2] may als o be
turned in the opposite direc tion. Slight corrections to Y may be required after rotation.
2
3
1
1
1
1
Red

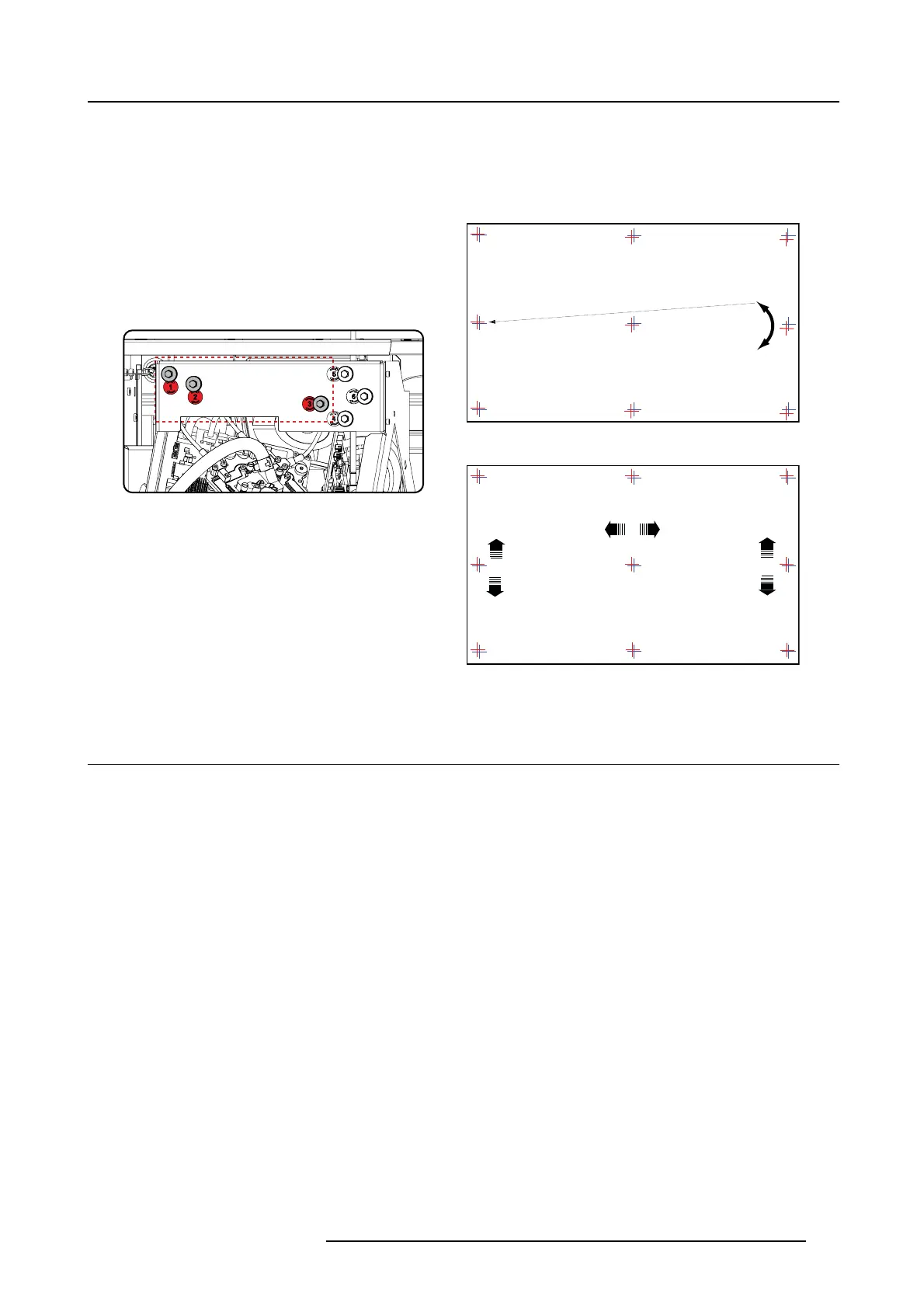

Image 12-7
Red on blue convergence
12.5 Green on blue convergence
Necessary tools
No tools.
Converging the GREEN pattern onto the
BLUE pattern
Next , align the GREEN DM D in the vertical directions [4] and [5] an d then proc eed with the horizontal direction [6].
1. To translate GREEN vertically in the Y + direction, turn both [4] and [5] cloc kwise. Turn screws in equal increments.
2. To translate G RE EN vertically in the Y - direction, turn both [4] and [5] anti-clockwise. Turn sc rews in equal increments.
3. For clockwise rotations of GRE EN, turning [5] anti-clockwise would generally suffice. If m uch rotation is required, [4] may also
be turned in the opposite direction. Slight corrections to Y may be r equired after rotation.
4. For anti-clockwise rotations of GREE N, turning [5] clockwise would generally suffice. If much rotation is required, [4] may also
be turned in the opposite direction. Slight corrections to Y may be r equired after rotation.
5. To translate G REE N horizontally in the X + direction, turn [6] clockwise.
6. To translate GRE EN horizontally in the X - direction, turn [6] a nti-clockwise.
