10. Removal and installation of the projector covers
10.1 Removal of the lamp cover
Necessary tools
Flat screwdriver
How to remove

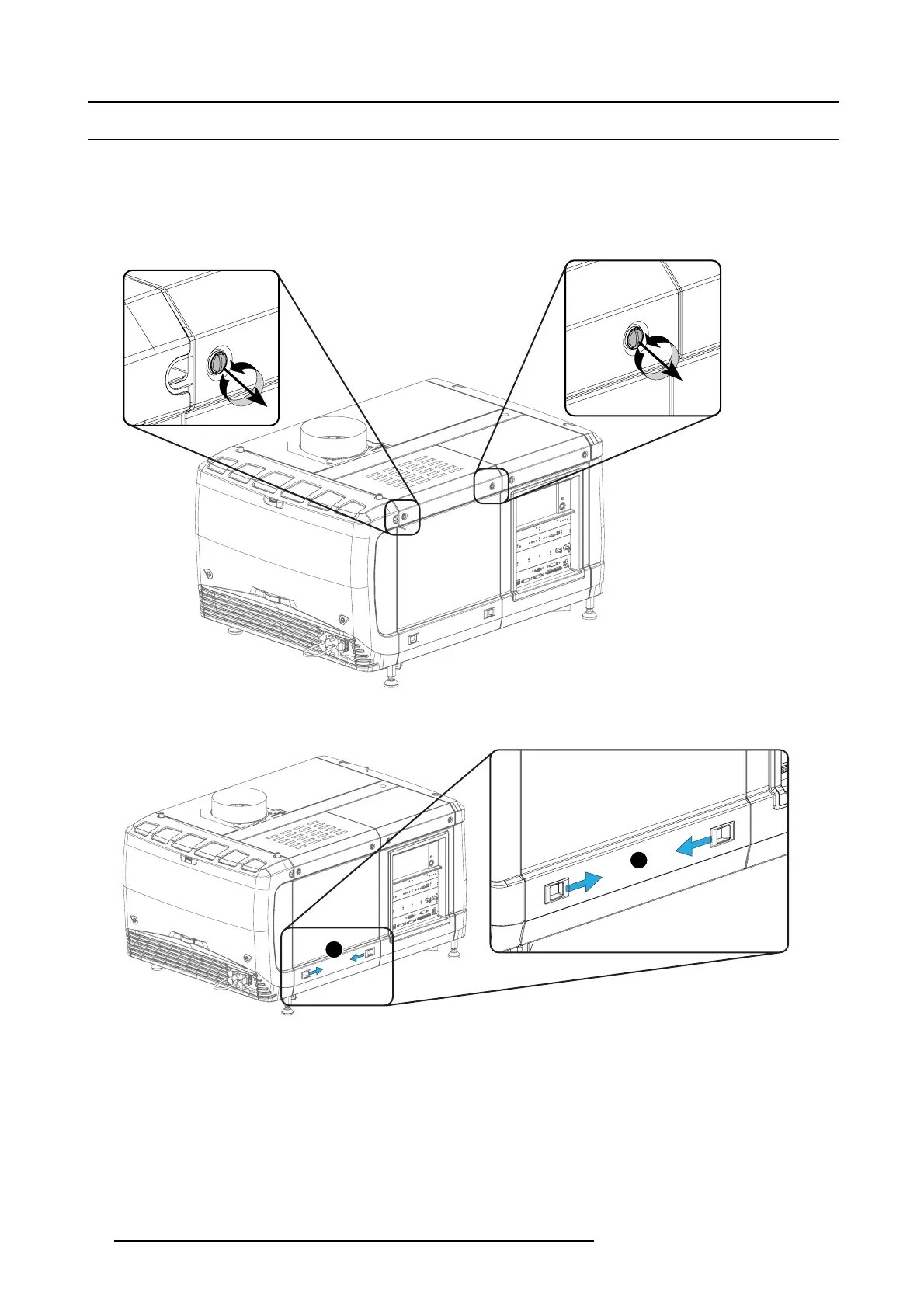

1. R elease both captive screw s on top of the lamp cover.
Image 10-2
Lamp cover, fasting screws
2. Push both lock to each other to release the locks and pull at the sam e time the bottom side of the cover away form the projector.
1
1
Image 10-3
Lamp cover, locks
3. Take off the cover.
82
R5905067 DPXK-19B/23B/P 17/09/2012
