10. Removal and installation of the projector covers
10.5 Removal of the side cover
Necessary tools
Flat screwdriver
How to remove
1. R elease both captive screws on top of the side c over.

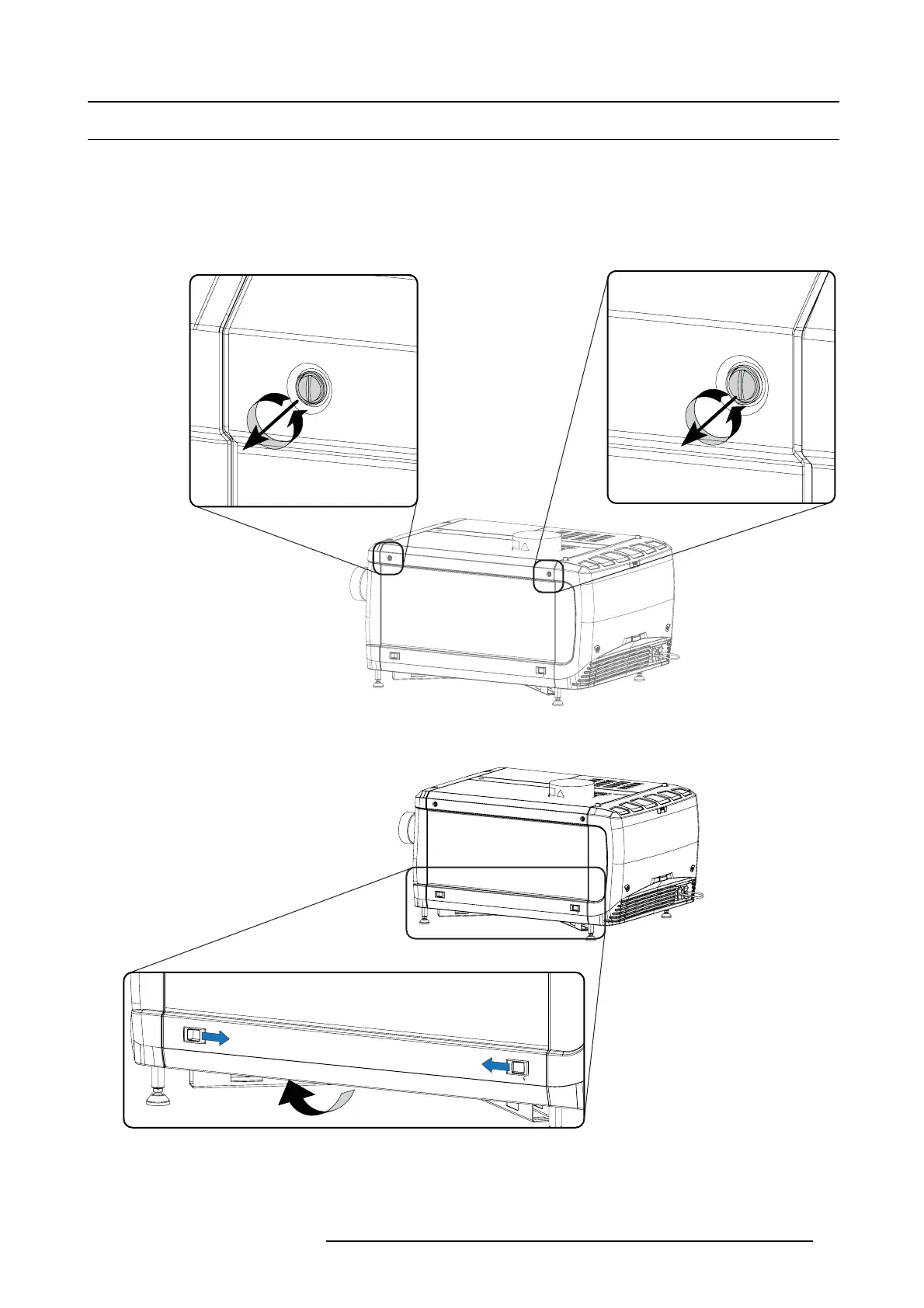

Image 10-10
Captive screws
2. Push both lock to each other to release the locks and pull at the sam e time the bottom side of the cover away form the projector.
Image 10-11
Unlock side cover
3. Take off the cover.
