Barco DP2K-19B Installation Manual

10. Removal and installation of the projector covers

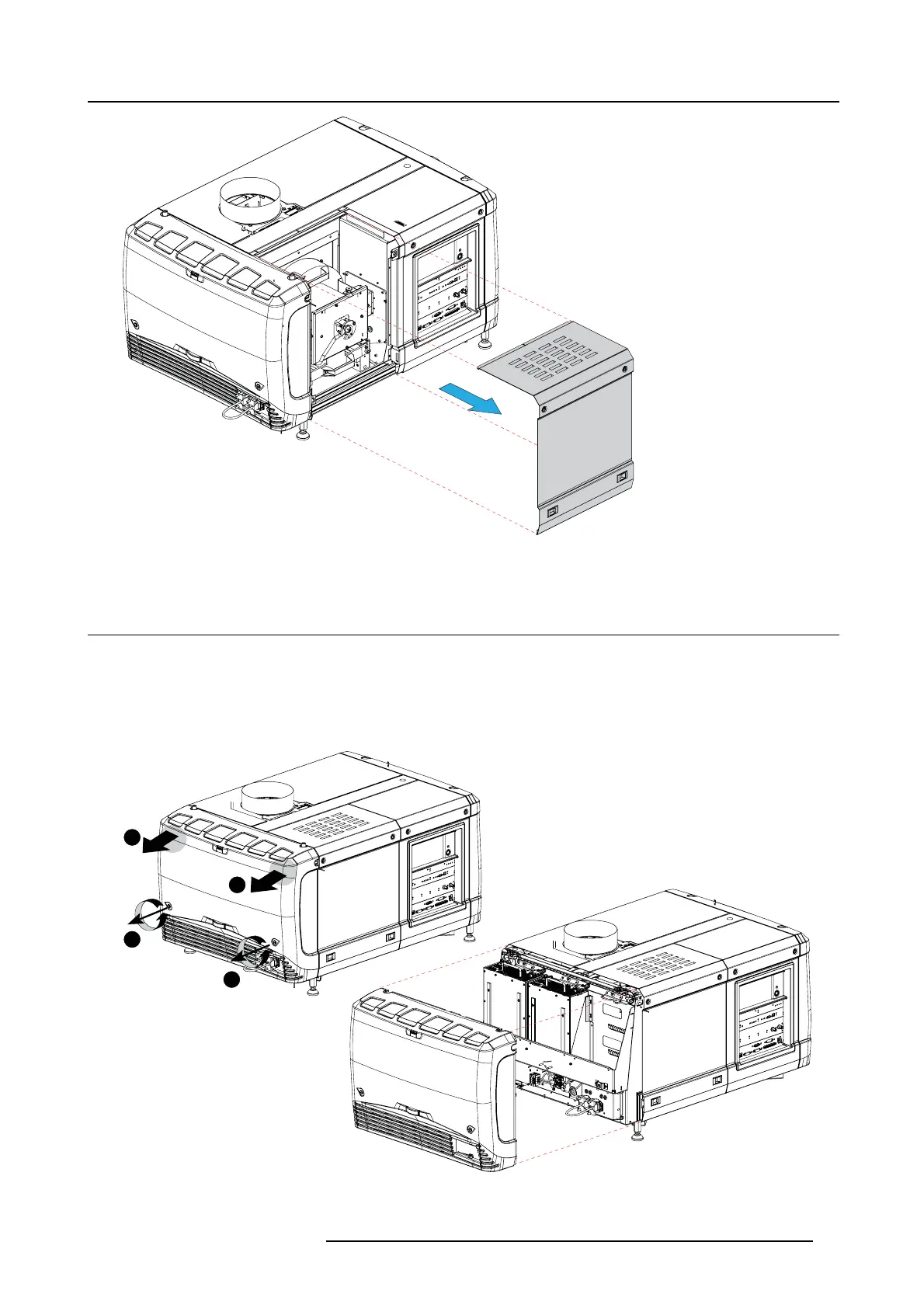

Image 10-4
Lamp cover, remova l
10.2 Removal of the rear cover
Necessary tools
Flat screwdriver
How to remove
1. R elease both captive screws almost at the bottom of the rear cover using a flat screw drive r (1 ).
1
1
2
2
Image 10-5
Rear housing removal
R5905067 DPXK-19B/23B/P 17/09/2012 83
