Barco DP2K-19B

10. Removal and installation of the projector covers
10.9 Installation of the rear c over
Necessary tools
Flat screwdriver
How to install
1. Install the rear cover of the projector doing the following:
a) B ring the rear cover towards its final position.
b) G ently push th e locking studs into the receivers (1).
1
1
2
2

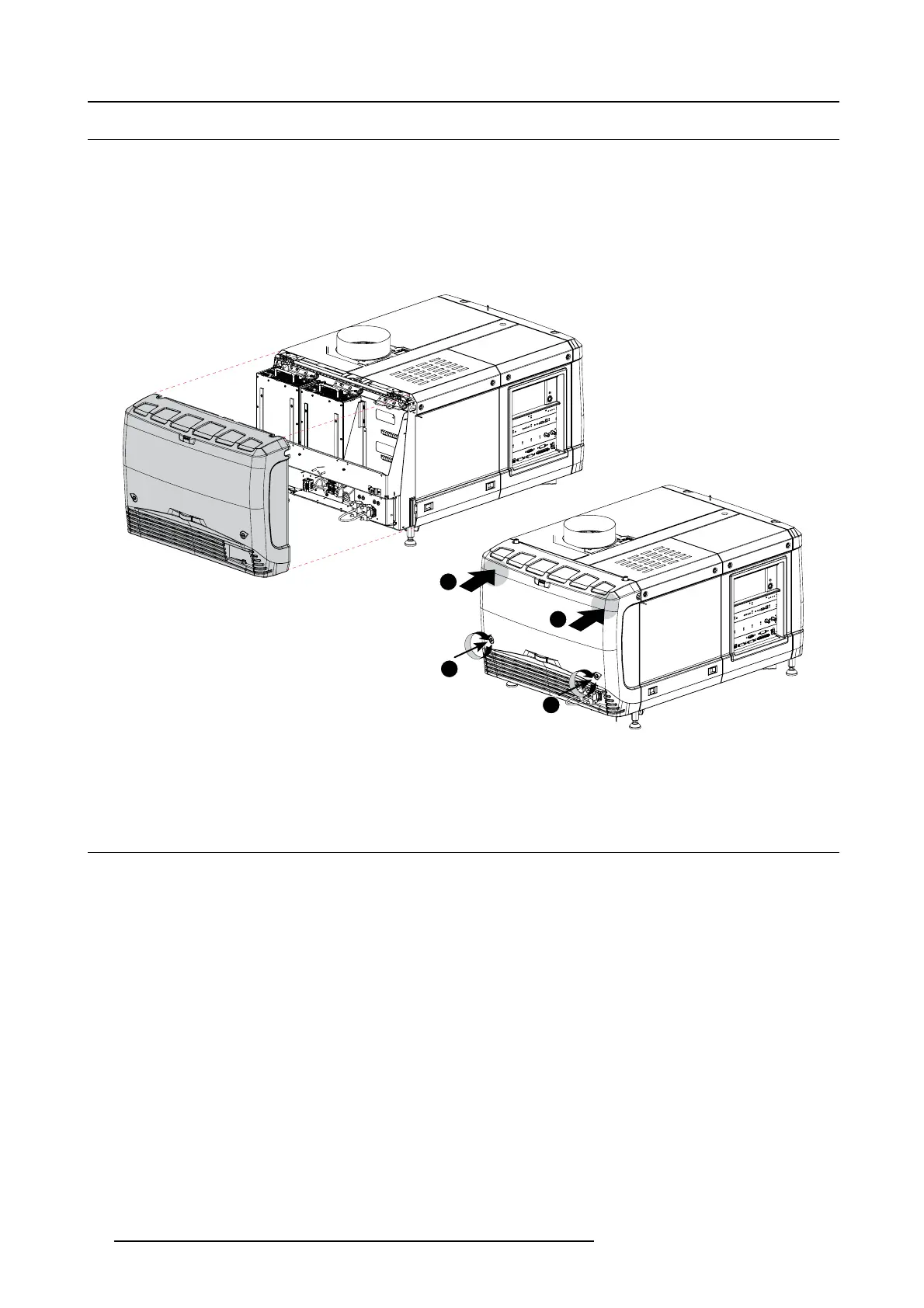

Image 10-19
Mount rear cover
2. Secur e the cover by fastening the captive screw at the bottom of the rear cover (2).
10.10 Installation of the side cover
How to install
1. Place the top of the side cover on its place.
Close the cover as follow:
a) G ently move the bottom side of the cover towards the projector
b) P ush both lock t o each other and push at the same time the c over against the projector frame.
c) Release both locks so that they lock in their receivers.
92
R5905067 DPXK-19B/23B/P 17/09/2012
