3. Physical installation

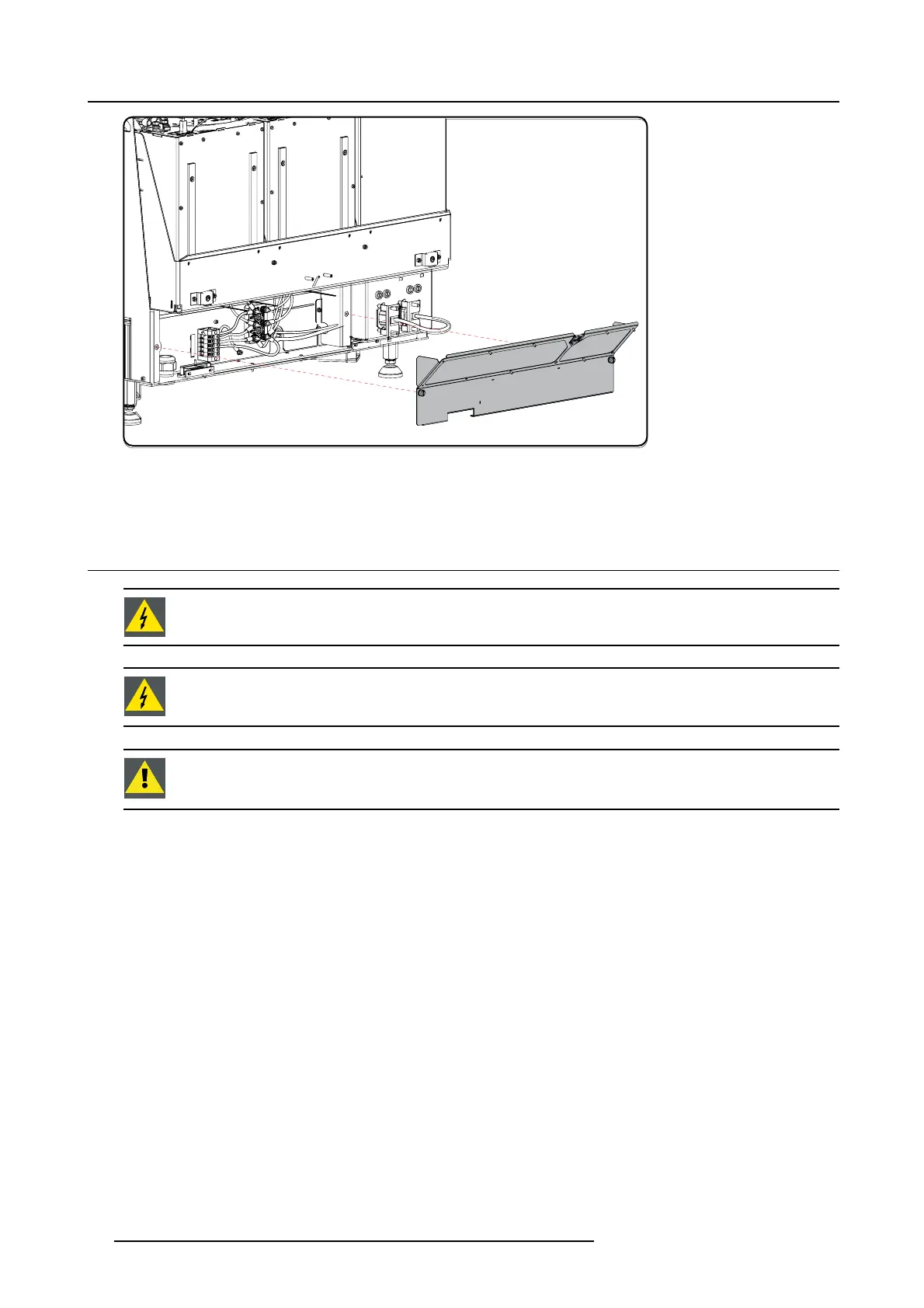

Image 3-9
Terminal strip accessible
The terminal strip and connection plate is accessible.
3.4 Connecting the DPxK-19B/23B/P with the power net
WARNING: The total electrical installation should be pro tected by an appropriate rated and readily accessi-
ble disconnect switch, circuit breakers and ground fault current interrupters. The installation shall be done
according to the local electrical installation codes.
WARNING: M ake sure that the voltage range of projector matches with the voltage of t he local power net.
CAUTION: The cross-sectional area of t he conductors in the Power Supply Cord shall be not less than 4 mm
2
or AWG 10
Necessary tools
• Flat torque screw driver
• Adjustable wrench
Necessary parts
•Certified power supply cord 4 .0 mm ², 10AWG, min
. 300V, diam eter between 11 mm an d 21 m m
• Circuit breaker max imum 40A
How to connect
1. R emov e the back cover.
2. R emove the power input c over.
3. L oosen the cable gland fixation ring (1 ).
Note: The c able g land (1) is specified for cab les with a diameter between 11m m and 21m m.
