7. Communicator Touch Panel
A Touch s creen
B
Communication panel
C
Knob to operate central swivel clamp
D
Base of swivel arm
E
Power input 12 VDC, 1.5A
F
RS232 port (sub-D)
G Ethernet port (RJ45)
CAUTION: For more information about the use of the Communicator Touch Panel, consult its user guide.
7.2 Installation of the touch panel interface
Necessary tools
• 17 mm wr ench
• 10 mm wr ench
How to install the touch panel interface
1. Ass emble the mounting plate and the swivel arm together as illustrated. First place the nut (N) upon the rod of the mounting
plate, then add the lock washer (L), then fasten the mounting plate and the swivel arm together. When the arm is mounted, turn
nut (N) against the arm to s ecure the pos ition.
N
L

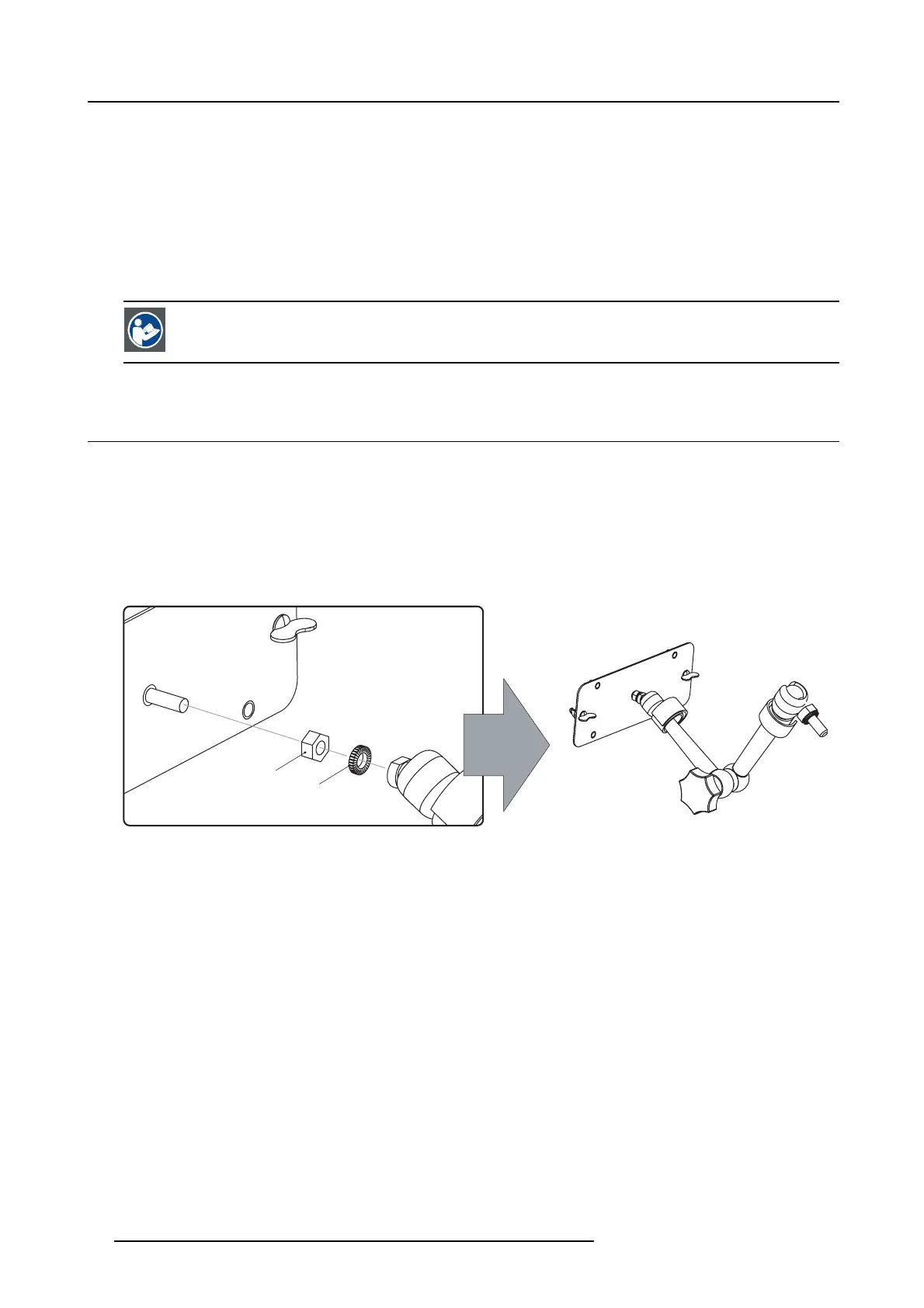

Image 7-3
Assemble swivel arm
2. Slide a washer (M) over the base of the swivel arm and Insert the ba se of the sw ivel arm into the mounting hole at the top of the
B-series projector as illustrated.
68
R5905067 DPXK-19B/23B/P 17/09/2012
