Barco DP2K-19B

5. Lenses & lens holder
1
2
3
F

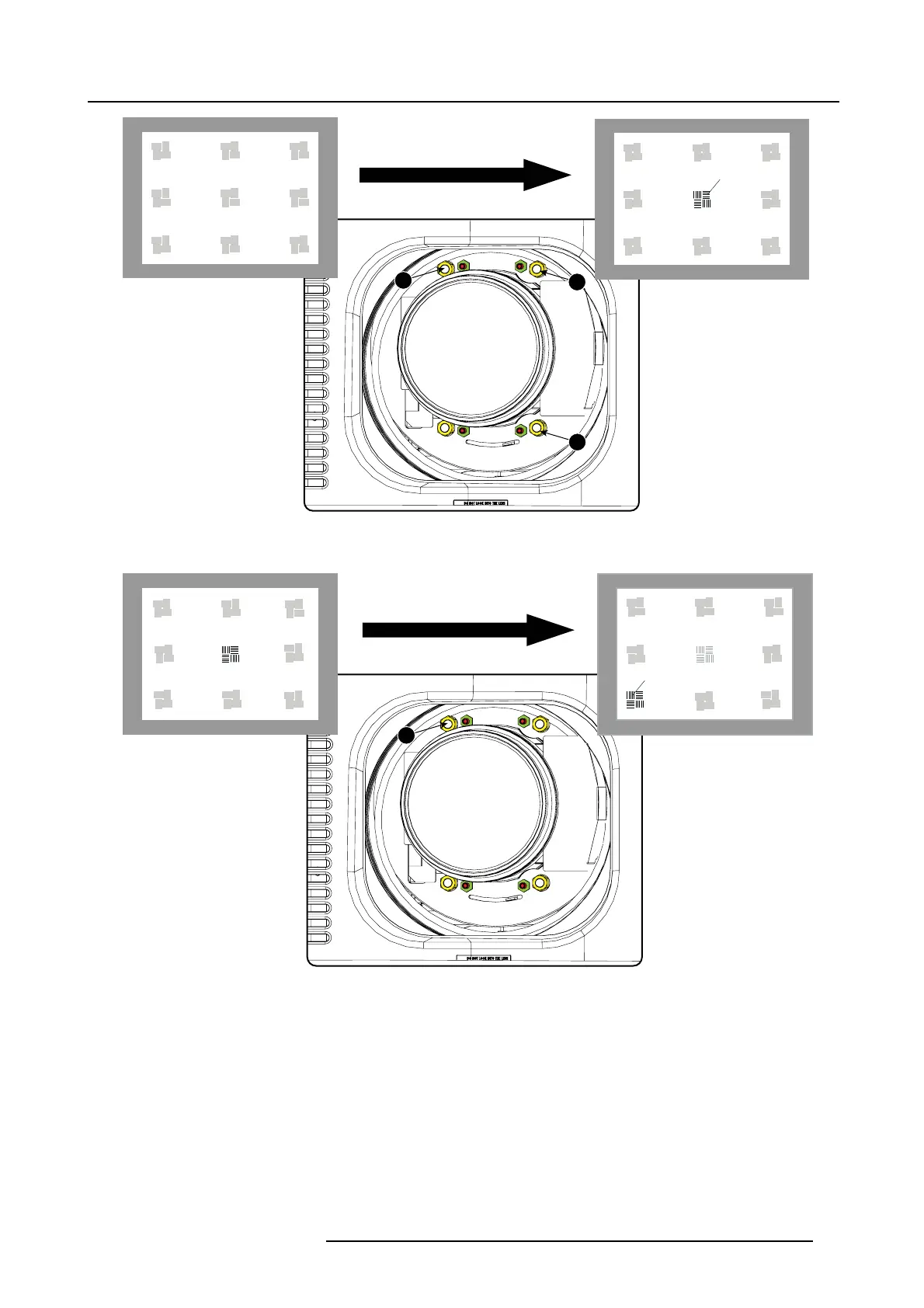

Image 5-24
Center focusing
6. Sharpen bottom left co rner of the screen by adjusting nu t 1.
1
F
Image 5-25
Left bottom focusing
7. Sharpen bottom right corner of the screen by adjusting nut 2.
