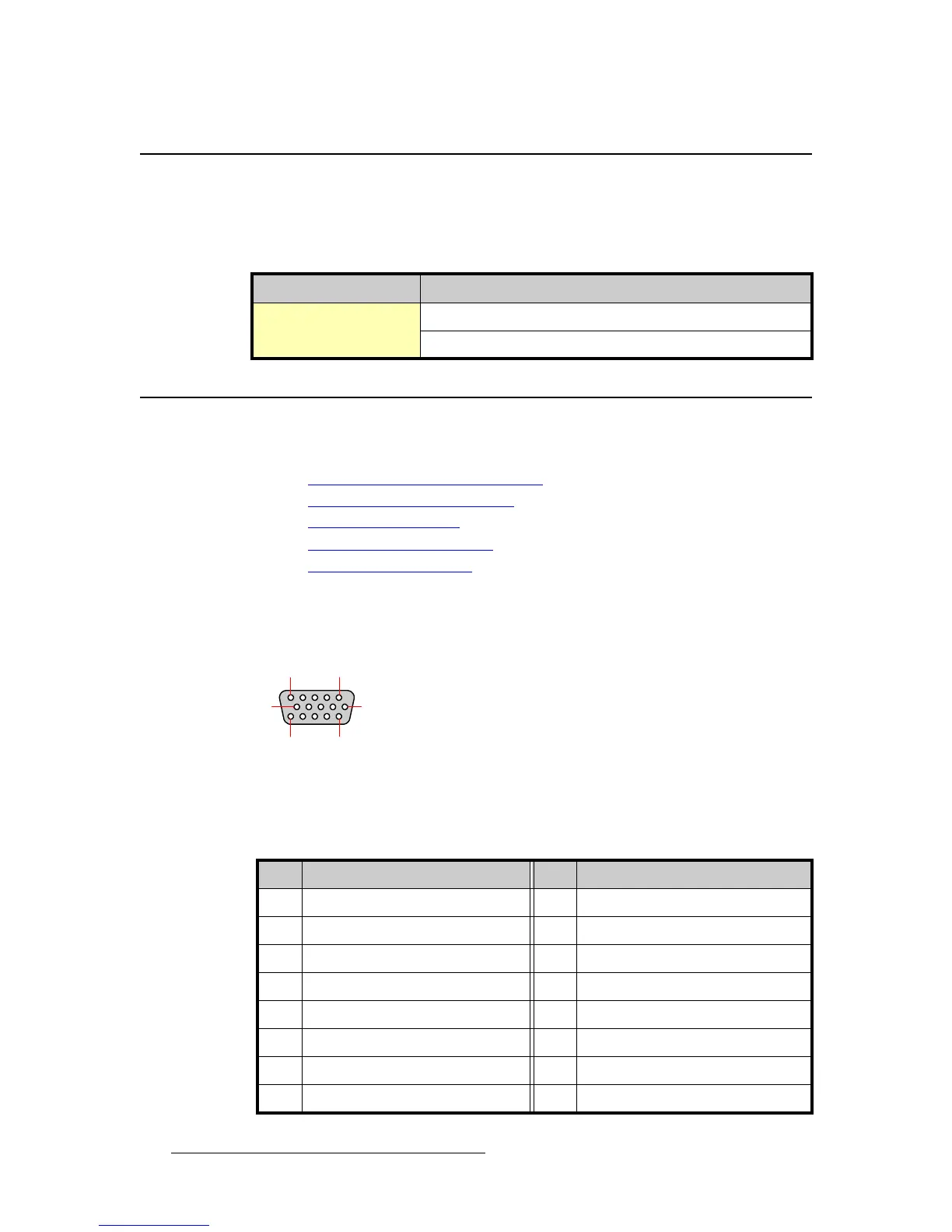

Communications Specifications
`çããìåáÅ~íáçåë=péÉÅáÑáÅ~íáçåë=
The following table lists ImagePRO-II communications specifications.
pí~åÇ~êÇ=`çååÉÅíçê=máåçìíë=
The following topics are discussed in this section:
• Analog 15-pin D Connector Pinouts
• DisplayPort Connector Pinouts
• DVI Connector Pinouts
• Ethernet Connector Pinouts
• HDMI Connector Pinouts
^å~äçÖ=NRJéáå=a=`çååÉÅíçê=máåçìíë
The following figure illustrates the analog 15-pin D connector:
Figure A-1. Analog 15-pin D Connector
The following table lists Analog 15-pin D connector pinouts.
Table A-6. ImagePRO-II Communications Specifications
Parameter Specification
USB USB 1.1
Ethernet RJ-45, 10/100 Mbps Autosense
Table A-7. Analog 15-pin D Connector Pinouts
Pin Signal Pin Signal
1Red 9
2 Green 10 GND
3Blue 11
412
5 13 H Sync or C Sync
6 Red return 14 V Sync
7 Green return 15
8Blue return
10 6
51
15 11
