138 ImagePRO-II • User’s Guide
^K==péÉÅáÑáÅ~íáçåë
Standard Connector Pinouts
asf=`çååÉÅíçê=máåçìíë

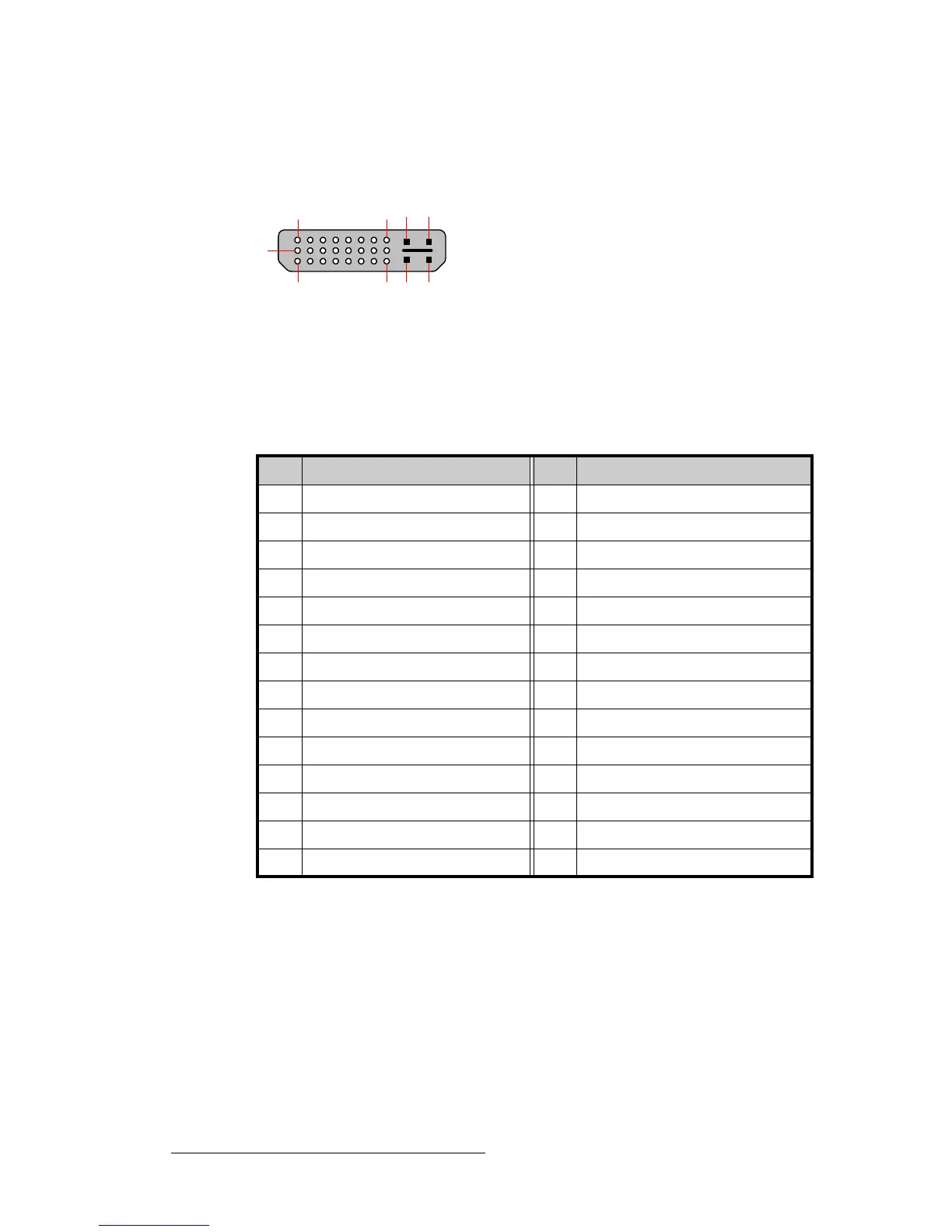

The following figure illustrates the DVI connector.
Figure A-1. DVI Connector
The following table lists DVI Connector pinouts. Please note:
• T.M.D.S = Transition Minimized Differential Signal
• DDC = Display Data Channel
Table A-9. DVI Connector Pinouts
Pin Signal Pin Signal
1 T.M.D.S. Data 2- 15 ground (for +5V)
2 T.M.D.S. Data 2+ 16 Hot Plug Detect
3 T.M.D.S. Data 2/4 Shield 17 T.M.D.S. Data 0-
4 T.M.D.S. Data 4- 18 T.M.D.S. Data 0+
5 T.M.D.S. Data 4+ 19 T.M.D.S. Data 0/5 Shield
6 DDC Clock 20 T.M.D.S. Data 5-
7 DDC Data 21 T.M.D.S. Data 5+
8 Analog Vertical Sync 22 T.M.D.S. Clock Shield
9 T.M.D.S. Data 1- 23 T.M.D.S. Clock +
10 T.M.D.S. Data 1+ 24 T.M.D.S. Clock -
11 T.M.D.S. Data 1/3 Shield C1 Analog red
12 T.M.D.S. Data 3- C2 Analog green
13 T.M.D.S. Data 3+ C3 Analog blue
14 +5V Power C4 Analog H sync
