140 ImagePRO-II • User’s Guide
^K==péÉÅáÑáÅ~íáçåë
Standard Connector Pinouts
eajf=`çååÉÅíçê=máåçìíë
The following figure illustrates the HDMI connector.

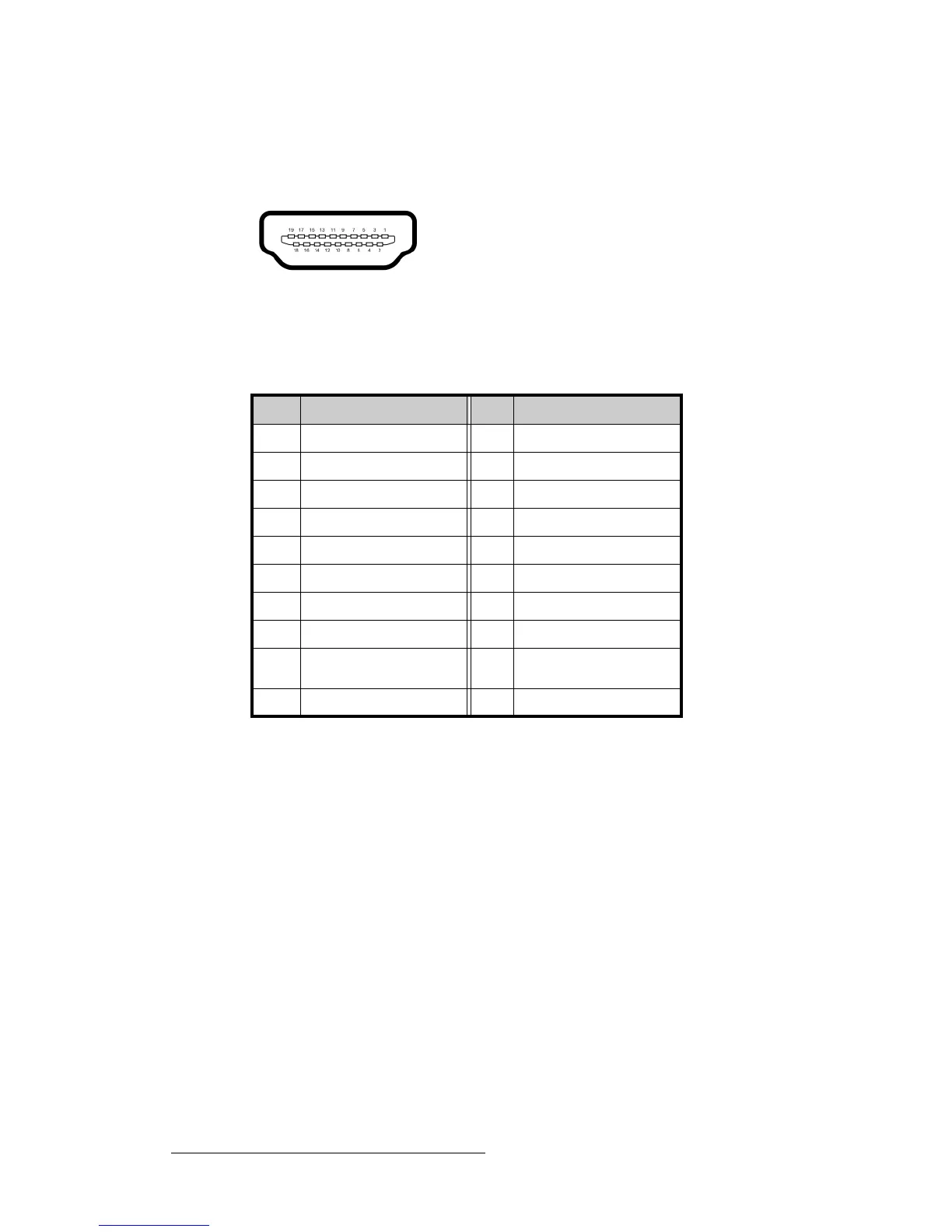

Figure A-3. HDMI Connector
The following table lists the HDMI connector pinouts.
Table A-11. HDMI Connector Pinouts
Pin Signal Pin Signal
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC/CEC/HEC Ground
8 TMDS Data0 Shield 18 +5 v Power (max 50 mA)
9 TMDS Data0- 19 Hot Plug Detect (All
Versions) and HEC Data+
10 TMDS Clock+
