3. Installation
14 13 12 11
81 2 3 4 75 6 9 10

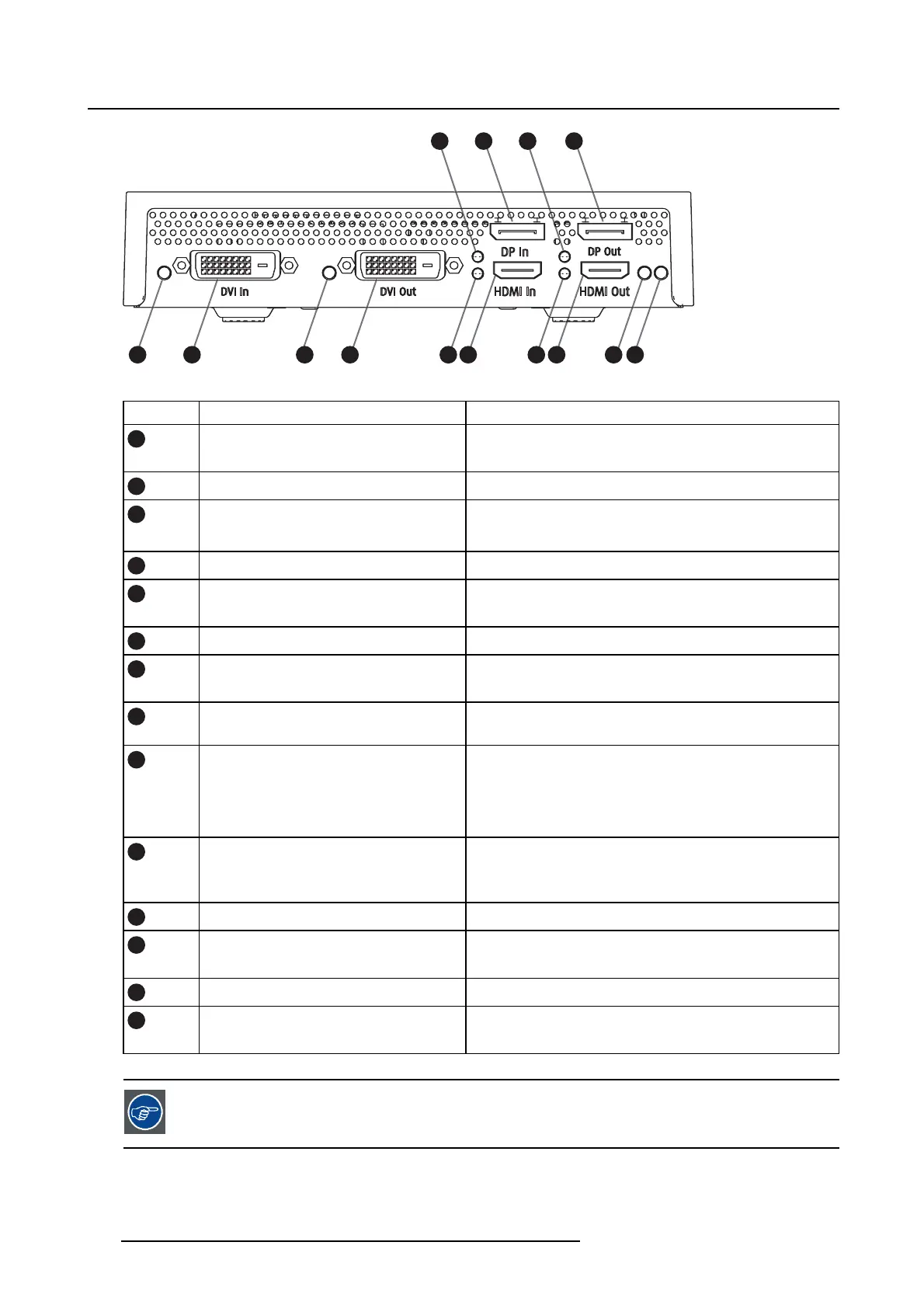

Image 3-2
Front connections of the NGS-D320
Connector/part Connecting device/use
1
DVI In LED Orange: There is no DVI In signal
Green: There is valid DVI In signal
2
Video Input DVI-D
DVI-D input (dual link)
3
DVI Out LED Orange: No display attached to DVI out
Green: Display attached to DVI out
4
Video Output DVI-D DVI-D output (dual link)
5
HDMI In LED
Orange: There is no HDMI In signal
Green: There is valid HDMI In signal
6
Video Input HDMI HDMI Input
7
HDMI Out LED Orange: No display attached to HDMI out
Green: Display attached to HDMI out
8
Video Output HDMI HDMI Output
9
Power LED
Green: Power OK
Red: Wrong power supply connected. Functionality
is not guaranteed.
Off: No power
10
Identification LED On: Upgrading the device firmware (do NOT cut
power from the device)
Blinking: Identification
11
Display port output Display port output
12
DP Out LED Orange: No display attached to DP out
Green: Display attached to DP ou
t
13
Display port input Display port input
14
DP In LED
Orange: There is no DP In signal
Green: There is valid DP In signal
It is advised to use dual link DVI cables for the interconnections.
