3. Installation
3.2 Rear view
Illustration

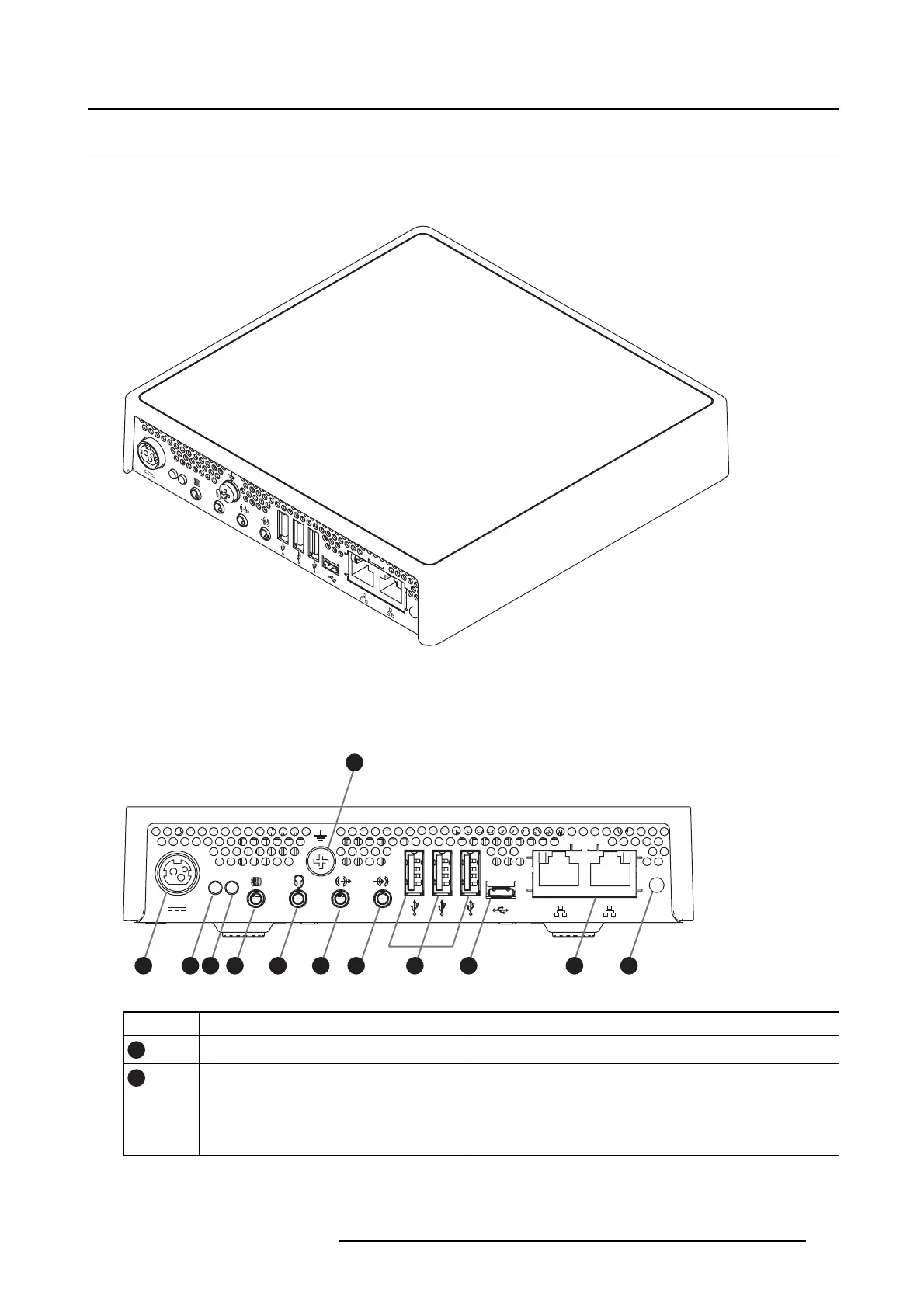

The rear view of the NGS-D320 is illustrated below.
Image 3-3
Rear v iew of the N GS -D320
Connection details
The NGS-D320 provides the connections as shown below.
111 2 3 4 5 6 7 9 10
8
12
Image 3-4
Rear conn ections of the NGS-D320
Connector/part Connecting device/use
1
Power input
Power source (12V DC)
2
Power LED
Green: Power OK
Red: Wrong power supply connected. Functionality
is not guaranteed.
Off: No power
K5903129 NGS-D320 29/09/2016 19
