2. Product information
7 Video s ignal
8USBHID
9 Data (network)
Audio, video and USB connections are made from the PC to the NGS-D320.
The video content flows from the PC/server to the NGS-D320, the NGS-D320 encodes the video, and
then the video is streamed onto the IP network.
The audio content can be bi-directional, audio can be sent to, or received from, the NGS-D320.
The USB peripheral port of the NGS-D320 connects to an USB host port on the PC/server. The NGS-
D320 emulates an USB HID device, and events are sent from the NGS-D320 to the PC/server .
Decoder
The device is typically connected to one or two screens. Next to the screens, the device can also be
connected to a headset/speaker/microphone, a keyboard and a mouse.
The corresponding encoder can be:
• Another NGS-D320 device
• Another Barco device, compatible with the NGS-D320
Refer to the specific Barco Systems with NGS-D320 devices for compatible products.
1
2
3
4
5
6 7
8
9
6
6

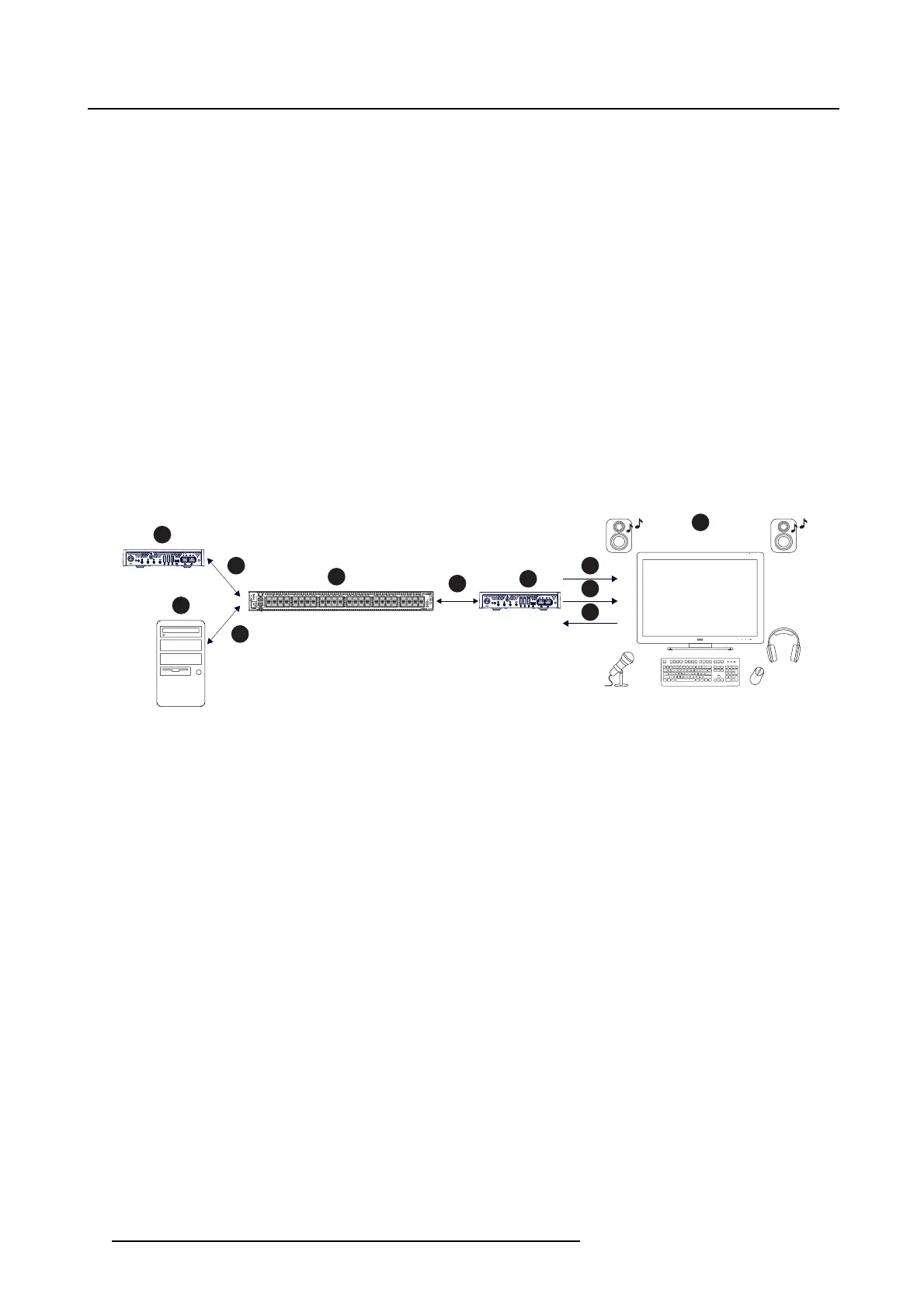

Image 2-2
Decoder installation
1 NGS-D320 (encoder)
2 Barco device or PC/server
3Switch
4 NGS-D320 (decoder)
5 Screen, headset/speaker/microphone, keyboard or mo use
6 Data (network)
7 Audio signal
8 Video s ignal
9USBHID
The video interfaces are connected to the screen(s).
The a udio interfaces are connected to a headset or speakers, and a microphone can be connected to the
NGS-D320.
The keyboard and mouse connect to the USB host interfaces of the NGS-D320.
Local
This mode is a combination of the encoder & decoder mode.
The device is typically connected locally at a desktop position. The device sits between the PC/server
and the screens, headset/speaker/microphone, keyboard and mouse. The video, audio & USB cables
connect from both ends to the NGS-D320 device.
These inputs are locally looped through the device.
The NGS-D320 device plugs into the network and is capable of streaming & receiving network trafficsi-
multaneously.
Install your NGS-D320 as illustrated below:
6
K5903129 NGS-D320 29/09/2016
