R5905753 /17 DPxK-19B/23B/P130
8.1 Introduction
Communicator Touch Panel for digital cinema projectors
The Communicator Touch Panel is designed for multi-user command and control, the Communicator enables
users to learn quickly and operate efficiently - using an elegant and flexible touch panel interface. The
interface's commonality means that operators can intuitively use any model in the product line, without
restriction, and its user-friendly nature translates directly into a short and enjoyable learning curve.

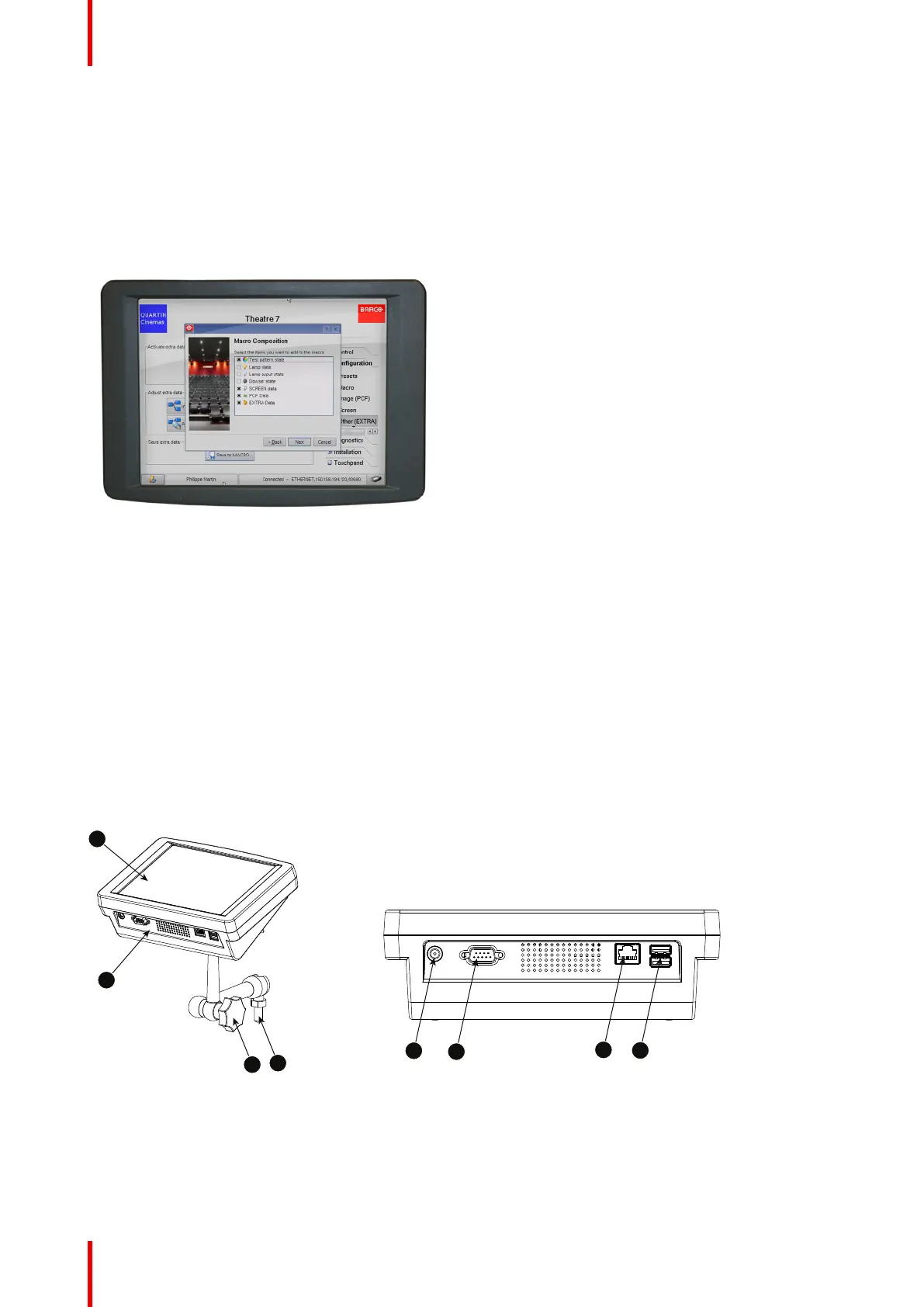

Image 8–1
Flexible touch panel interface
The touch panel interface can be mounted upon a swivel arm which easily fits on top of the DPxK-19B/23B/P.
One central locking mechanism of the swivel arm allows an instant fixation of the touch panel interface in any
position.
The touch panel interface can also be installed further away from the DPxK-19B/23B/P. For that you can use a
serial (RS232) cable up to 10 meter or an Ethernet cable up to 50 meter to allow a direct data communication
between the DPxK-19B/23B/P and the Communicator Touch Panel.
The touch panel interface can also be connected with a Local Area Network (LAN) just like the DPxK-19B/
23B/P. In this case both devices can communicate with each other as well.
The touch panel interface requires a +12 VDC voltage, 1,5 ampere. The use of a separate +12 VDC adaptor
(1,5 ampere minimum) is required.
Parts location of the touch panel interface
Image 8–2 Communicator touch panel
A Touch screen
B Communication panel
C Knob to operate central swivel clamp
D Base of swivel arm
Communicator Touch Panel
