Barco Prometheus I User Manual

R5905753 /17 DPxK-19B/23B/P132
M

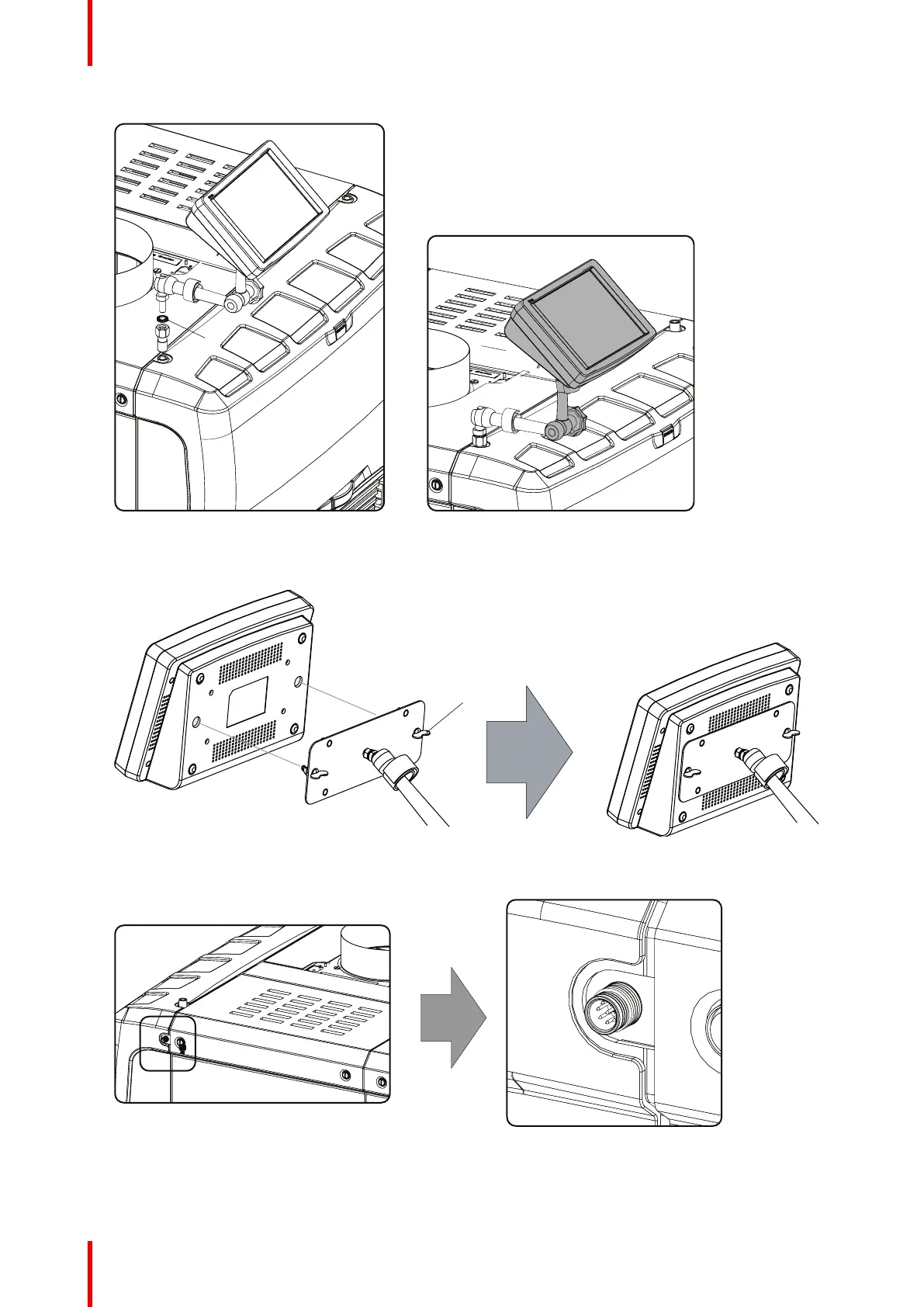

Image 8–4 Mount touch panel Image 8–5 Touch panel mounted
3. Place the touch panel interface on the mounting plate of the swivel arm and fasten the two wing nuts (W)
as illustrated.
W
Image 8–6 Mount touch panel
4. Connect the circular plug of the multi cable with the circular socket at the rear side of the DPxK-19B/23B/P.
Image 8–7
5. Attach the multi cable to the swivel arm using the two Velcro strips.
