Barco Prometheus I User Manual

R5905753 /17 DPxK-19B/23B/P62
5.3 Lens installation

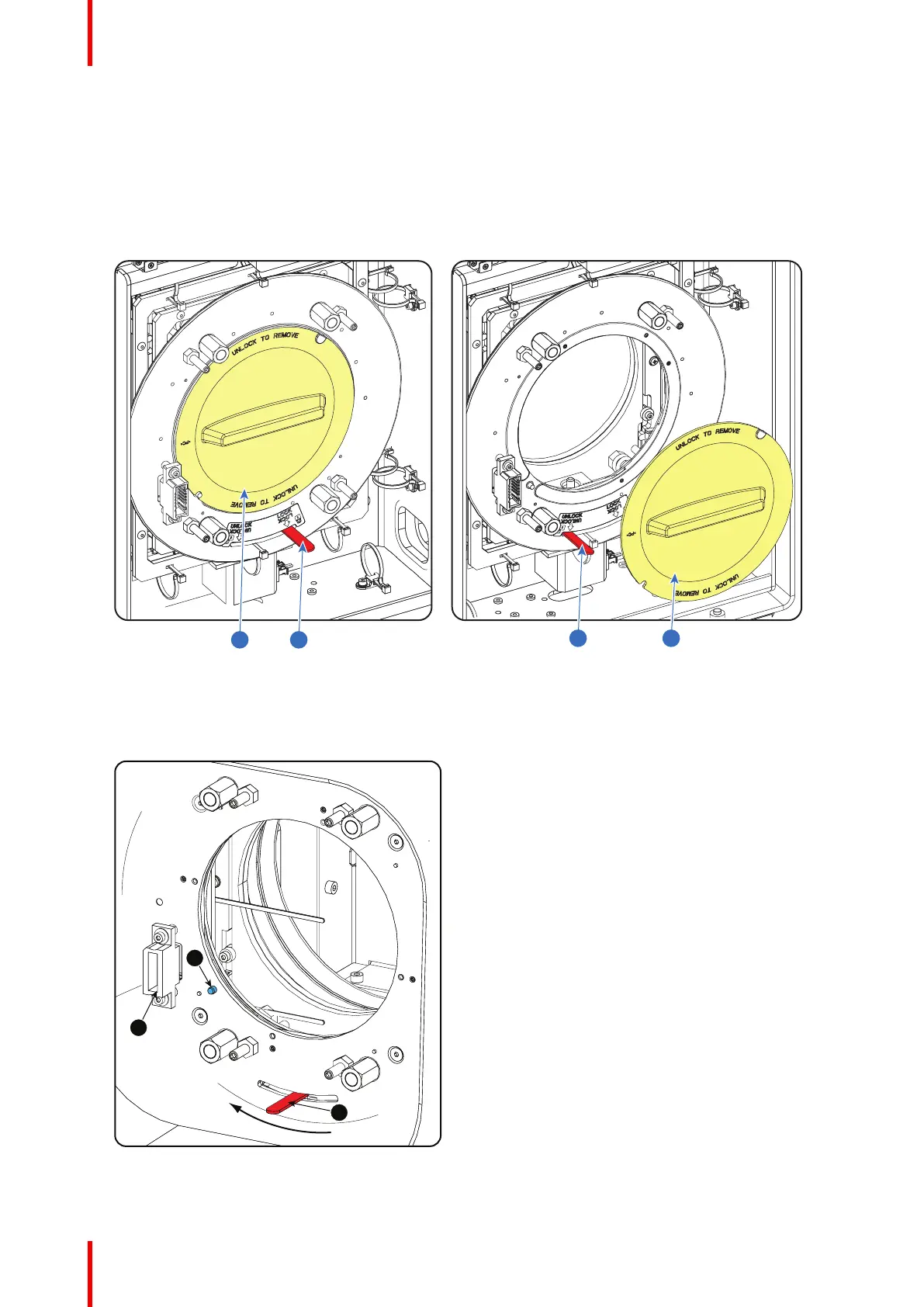

How to install a lens?
1. Remove the plastic lens holder cover.
1. Put the lock (1) into the unlock position.
2. Take out the plastic cover.
12
1 2
Image 5–2
2. Take the lens assembly out of its packing material and remove the lens caps on both sides.
3. Place the lens holder in the “unlocked” position by moving the lens lock handle (1) towards the lens power
supply socket (2).
1
2
3
Image 5–3 Unlock lens holder
4. Ensure that the lens holder stands in the On-Axis position (horizontal and vertical mid position).
