2. To translate GREEN vertically in the Y - direction, turn both [4] and [5] anti-clockwise. Turn screws in equal
increments.
3. For clockwise rotations of GREEN, turning [5] anti-clockwise would generally suffice. If much rotation is
required, [4] may also be turned in the opposite direction. Slight corrections to Y may be required after
rotation.
4. For anti-clockwise rotations of GREEN, turning [5] clockwise would generally suffice. If much rotation is
required, [4] may also be turned in the opposite direction. Slight corrections to Y may be required after
rotation.
5. To translate GREEN horizontally in the X + direction, turn [6] clockwise.
6. To translate GREEN horizontally in the X - direction, turn [6] anti-clockwise.
Green
1
5
4
6
5

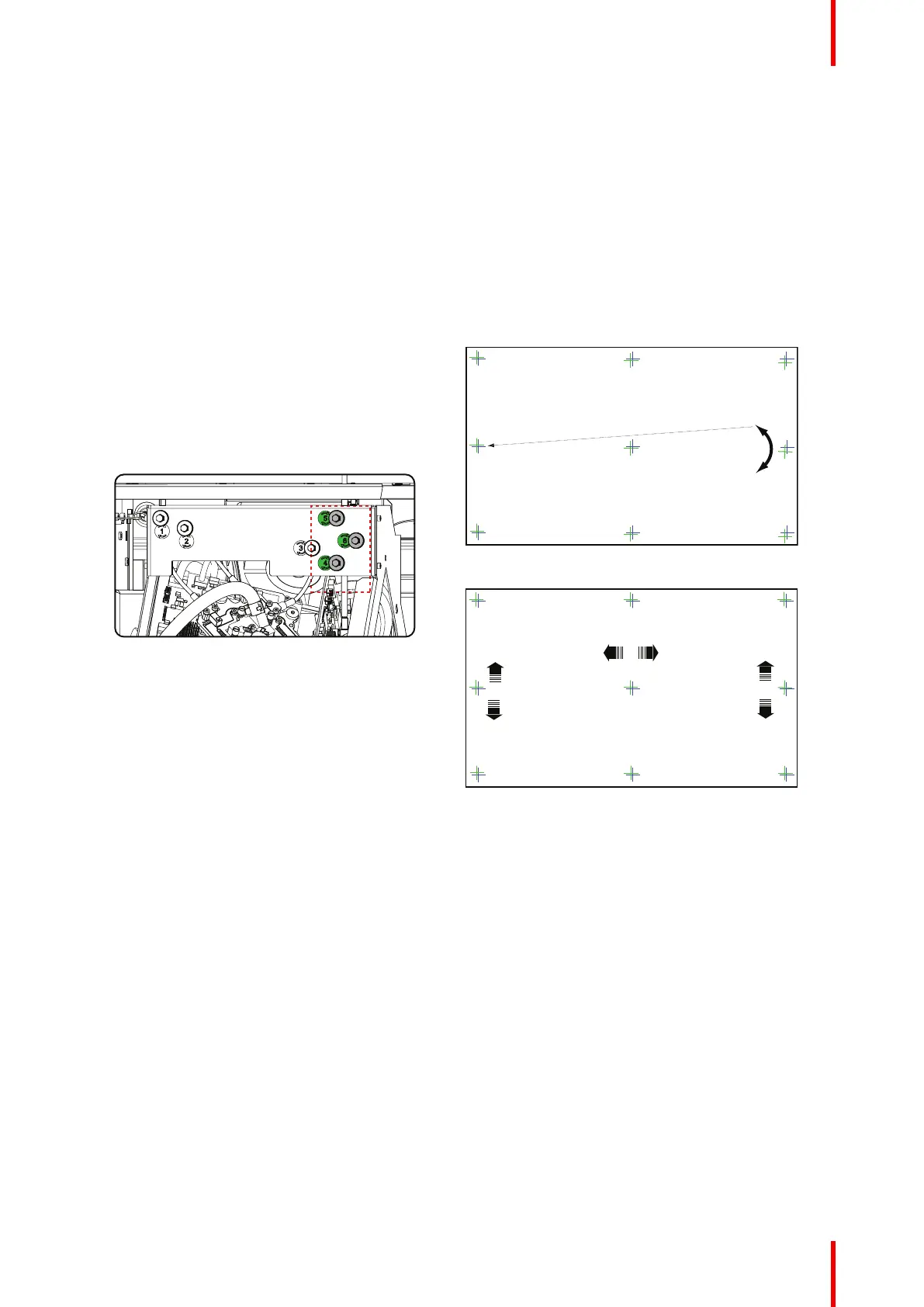

Image 12–8 Green on blue convergence
Convergence
