ICP-D functions
• Stores a part of the projector files (screen files, MCGD files, ...).
• Stores the license files related to HDMI inputs.
Note: the License file related to the use of ICP-D with a third party Integrated Media Block (IMB) is not
stored here.
• Stores and generates test patterns.
• Scaling to native resolution, re-sizing, masking, line-insertion de-interlacing, color space conversion, de-
gamma, color correction.
• Source Selection between alternative content and cinema content.
• Contains a real time clock, which must be synchronized with the GMT/UTC time stored in Integrated Media
Block.
• Handles unpacking of special video formats.
ICP-D limitations
• CineCanvas subtitling support is not available on ICP-D.
• DVI inputs located on cinema controller are no longer functional.
Supported IMBs
Minimum ICP-D software version 1.2.1:
• Dolby ShowVault/IMB: From software version 2.8.25 onward
• Dolby IMS3000: From software version 3.3.26 onward
• Dolby IMS2000: From software version 2.8.25 onward
• GDC SX4000: From software version 10.00 (build 103) onward
• QSC CMS-5000: From software version 1.1.01818+ onward
This list is subject to change. Please contact Barco service to obtain the updated list of supported
IMB brands (models, minimum software version, etc).
ICP-D LEDs, communication and input ports

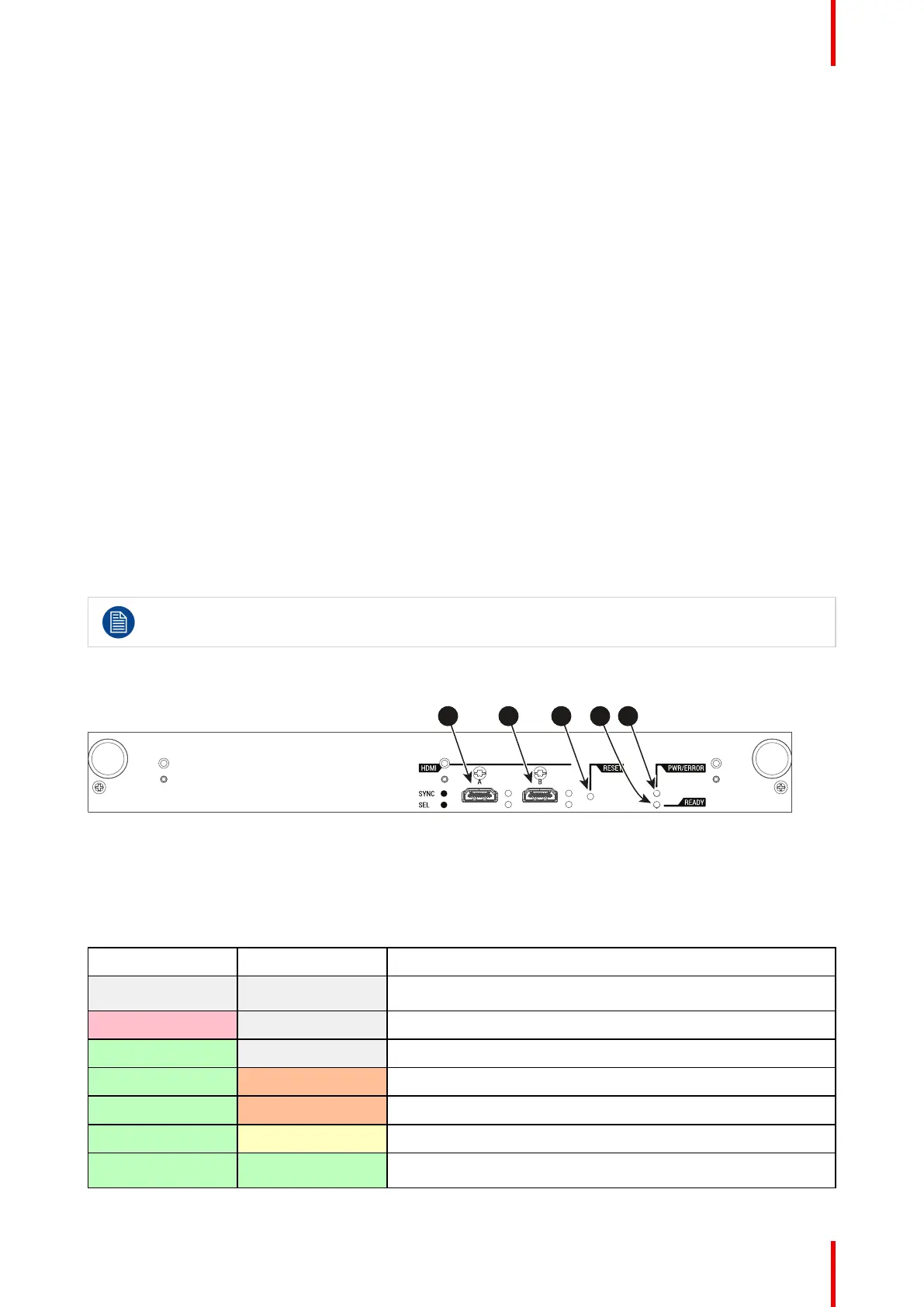

Image 6–4
1 HDMI Input A, HDMI 2.0 connector to connect a video source
2 HDMI Input B, HDMI 2.0 connector to connect a video source
3 Reset button
4 Ready LED
5 Power & Error LED
ICP-D LEDs
Status overview PWR/ERROR and READY LEDs:
PWR/ERROR READY
ICMP(-X) Status
Off Off Turned off
Red Off Board reset or security error
Blinking Green Off Boot loader
Blinking Green Blinking Orange Operating System start up
Blinking Green Orange Security Manager - Image Integrity tests
Blinking Green Blinking Yellow Security Manager - Self Test
Green Blinking Green Starting Applications
Input & communication
