2.1 Installation requirements
Environmental conditions
The table below summarizes the physical environment in which the DPxK B may be safely operated or stored.
Environment
Operating Non-Operating
Ambient Temperature 10°C (50°F) to 35 °C (95 °F) -15°C (5°F) to 60°C (140°F)
Air cleanliness Clean office environment (equivalent with
cleanroom standard ISO 14644-1 ISO Class
9)
n.a.
Humidity 5% to 85% RH Non-condensed 5% to 95% RH Non-Condensed
Altitude -60 (-197Ft) to 3000m (9843Ft)
1
-60 (-197Ft) to 10000m (32810Ft)
Let the projector acclimatize after unpacking. Neglecting this may result in a startup failure of the
Light Processor Unit.
Cooling requirements
The projector is fan cooled and must be installed with sufficient space around the projector head, minimum 20
cm (8 inch) to ensure sufficient air flow. It should be used in an area where the ambient temperature, as
measured at the projector air inlet , does not exceed +35°C (+95°F).

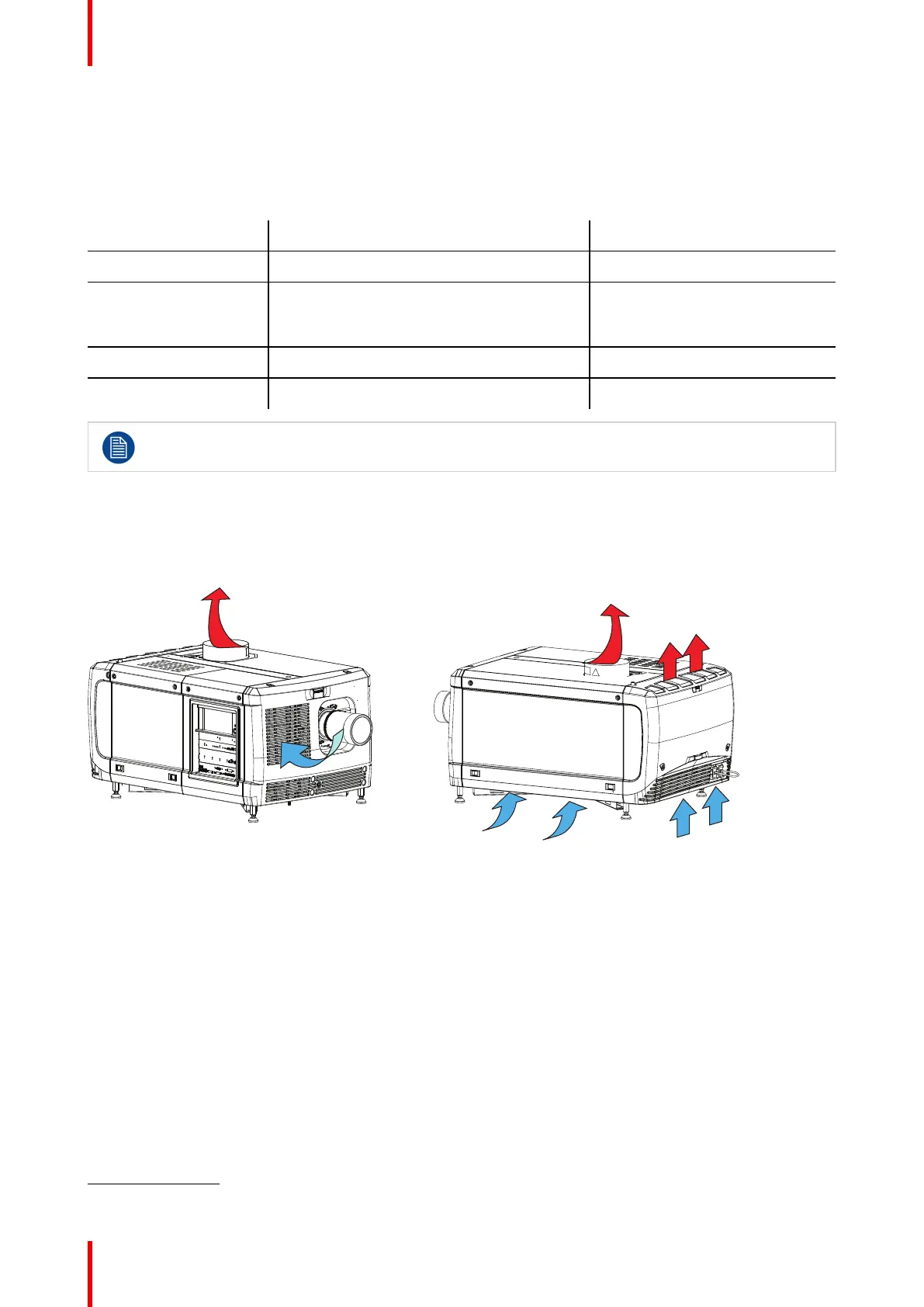

Image 2–1
The installation of an exhaust system is MANDATORY. The installed exhaust blower must remove an air
volume of minimum 10m
3
/min (350 CFM) measured at the exhaust output of the projector.
Main Power requirements
The DPxK B operates from a nominal mono phase power net with a separate earth ground PE.
Projector Power requirements
DP2K-19B 200-240 VAC, 50-60Hz, 24A at 200 VAC
DP2K-23B 200-240 VAC, 50-60Hz, 30A at 200 VAC
DP2K-P 200-240 VAC, 50-60Hz, 30A at 200 VAC
DP4K-19B 200-240 VAC, 50-60Hz, 24A at 200 VAC
DP4K-23B 200-240 VAC, 50-60Hz, 30A at 200 VAC
General
1. For PRC (People's Republic of China) the certified altitude is specified on the product label.
