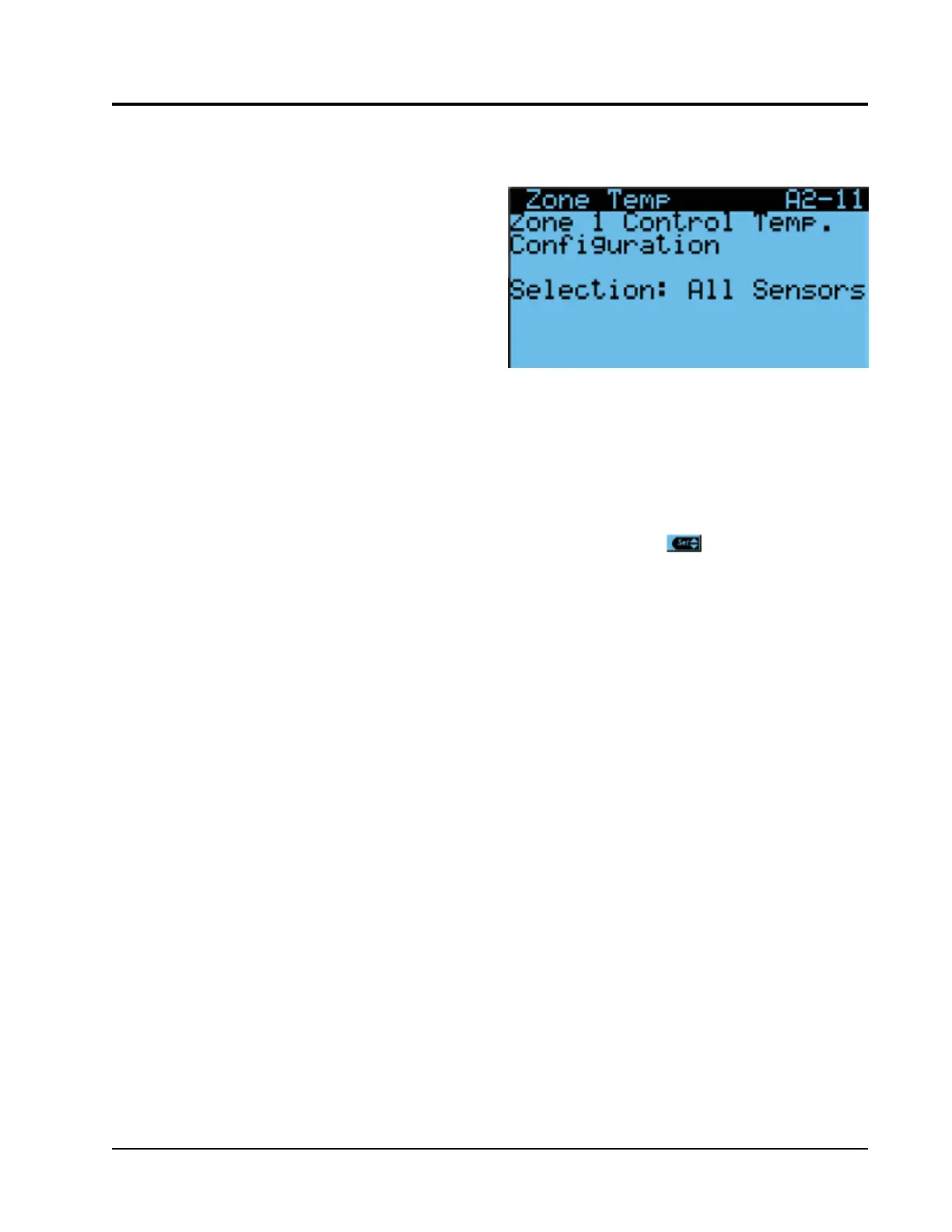

FIGURE 20
Change Indoor Temperature Averaging Type
CONTROL OPERATION
NOTE: Screenshots shown in this manual reflect
default settings (when applicable).
Temperature Control
Indoor Temperature Averaging
The LC has the ability to average all of the zone
temperature sensors connected to the LC and the
return air temperature sensors connected to the wall-
mount unit, use only the zone temperature sensors, or
use the LC sensors and any unit which has its blower
run continuously. This can be set differently for each
zone. This value will then be used as a zone indoor
temperature for the LC and wall-mount unit control
functions.
There are three possible sensor averaging selections:
• LC Only
This configuration only averages the zone
temperature sensors connected to the LC and
enabled within the specific zone.
• Blower On
This configuration averages any temperature
sensors connected to the LC that are enabled and
the return air temperature sensor of any wall-
mount unit set to run in continuous blower within
the specific zone.
• All Sensors
This configuration averages the zone temperature
sensors connected to the LC that are enabled and
all the return air temperature sensors of all wall-
mount units within the specific zone, regardless of
blower operation.
To change the indoor temperature averaging type:
1. Press MENU key to go to the Main Menu screen.
2. Use UP or DOWN keys and ENTER key to enter
USER password 2000.
3. Press UP or DOWN keys to scroll to Sys Config;
press ENTER key.
4. Press UP or DOWN keys to scroll to Zone 1, Zone
2 or Zone 3; press ENTER key.
5. Press UP or DOWN keys to scroll to Zone Temp A2-
11 (Zone 1), Zone Temp A3-11 (Zone 2) or Zone
Temp A4-11 (Zone 3).
6. Press ENTER key to scroll to Selection (see Figure
20).
7. Press UP and DOWN keys to adjust.
Comfort Mode
If comfort mode is activated, all of the zone setpoints
will be set to 72°F for cooling and 70°F (comfort
setpoint -2) for heating. This setpoint will be active for
60 minutes.
To enable comfort mode:
1. Press UP or DOWN key while on the Status screen
to select Setpoints ( ) from the Quick Menu
options; press ENTER key.
2. Press ENTER key to scroll to Comfort Mode.
3. Press UP or DOWN keys to change the duration of
comfort mode.
4. Press ENTER key to scroll to Comfort Setpoint.
5. Press UP and DOWN keys to change the cooling
setpoint for comfort mode.
6. Press ENTER key to scroll to Comfort Enable.
7. Press UP or DOWN key to change value from OFF
to ON; press ENTER key.
The system is now in comfort mode and will cool or heat
to the comfort setpoint for the 60-minute duration.
Staging
Each zone is capable of three different staging
methods.
FIFO (First in First Out)
The unit that is first in rotation will be the first one
turned off.
LIFO (Last in First Out)
The unit that is last in rotation will be the first one
turned off.
Demand Staging
While in cooling operation, the unit with the highest
return temperature will be brought on first. The unit
with the lowest return temperature will be turned off
first. While in heating mode, the unit with the lowest
Manual 2100-669F
Page 21 of 37
To Next Page
