Manual 2100-669F
Page 7 of 37

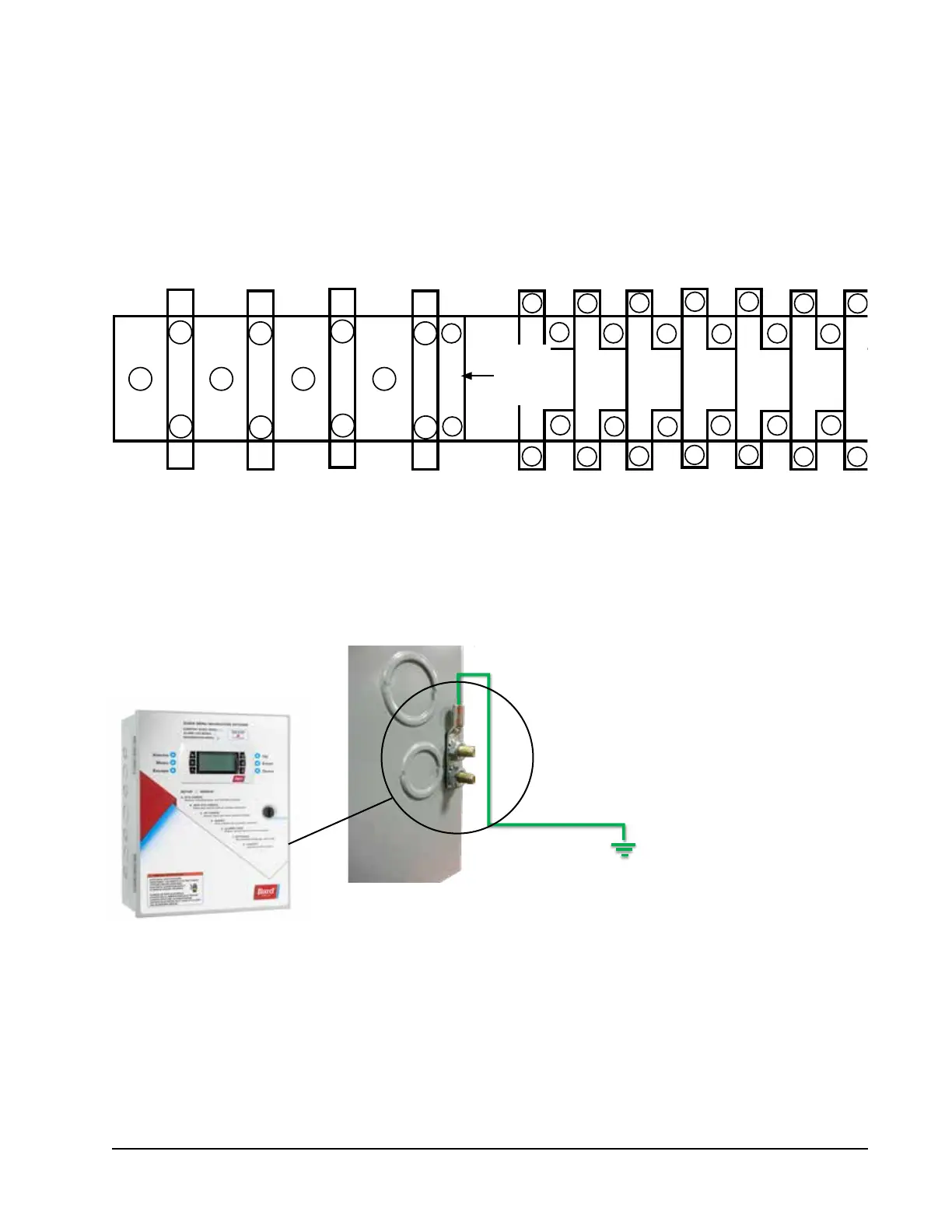

FIGURE 3
LC6000 Controller Supply Wiring
Supply Wiring
The LC6000 controller is powered by 120, 208 or 240 volts from the shelter. Field-supplied supply wiring should
be minimum 16 gauge, maximum 14 gauge (see Figure 3). A reliable earth ground must be connected in addition
to any grounding from conduit. Grounding bolts and nuts are included with the controller for this purpose; a 2 hole
grounding lug must be field supplied. Install as shown in Figure 4. Failing to ground the controller box properly could
result in damage to the equipment.
FIGURE 4
Controller Grounding Posts
A reliable earth ground must be connected in
addition to any grounding from conduit. Attach
earth ground to side of controller box using bolts
and nuts supplied with controller and field-
supplied 2 hole grounding lug. Failing to ground
the controller box properly could result in damage
to the equipment.
5
7
9
17
19
21
25
23
27
29
31
35
33
37
11 13
15
39 4341 45
47 51
49 53
55
59
57
60
6
8 10 12
14
16
18
20
22 24
26
28
30 32 34 36
38
40
42 44
46 48
50 52
54
56
58
1
2
3
4
120
VAC
Input
(L1)
208V
VAC
Input
(L1)
240V
VAC
Input
(L1)
Power
Input
Common
(L2 or N)
Power
Input
Ground
