Bard LC6000-200 - Outdoor Sensor Troubleshooting

8301-090 Outdoor Temperature/Humidity Sensor
Troubleshooting the temperature/humidity sensor is necessary if the temperature or humidity reading is inaccurate.
Always start sensor troubleshooting by verifying connections at the sensor board and at the LC6000 terminal blocks.
Improper connection will cause inaccurate readings. Next, verify continuity at both ends of wires running between
the sensor and the LC6000. A severed or damaged wire will cause inaccurate readings. As a last step, verify voltage
and resistance at the sensor and the LC6000 terminal block per the provided table. If the sensor is found to be
malfunctioning, replace the sensor.
Sensor
Terminal
Description
1 Remote Outdoor Humidity Sensor: 0-10 VDC
2 +VDC
3 Ground
4 Remote Outdoor Temperature Sensor
5 Ground

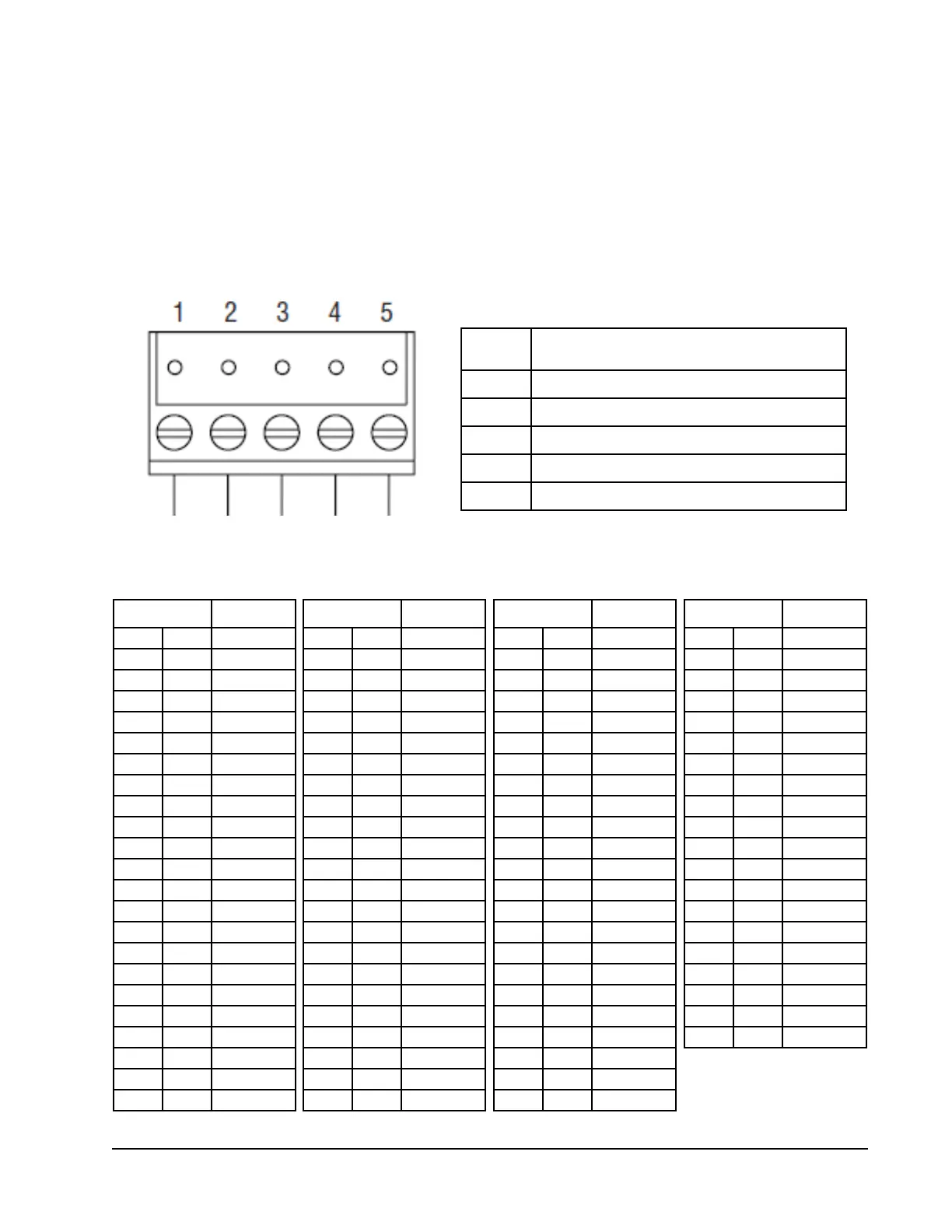

FIGURE 37
8301-090 Sensor
Temperature Resistance
C F Ω
-32 -25.6 151,200
-31 -23.8 142,900
-30 -22.0 135,200
-29 -20.2 127,900
-28 -18.4 121,100
-27 -16.6 114,600
-26 -14.8 108,600
-25 -13.0 102,900
-24 -11.2 97,490
-23 -9.4 92,420
-22 -7.6 87,650
-21 -5.8 83,150
-20 -4.0 78,910
-19 -2.2 74,910
-18 -0.4 71,130
-17 1.4 67,570
-16 3.2 64,200
-15 5.0 61,020
-14 6.8 58,010
-13 8.6 55,170
-12 10.4 52,490
-11 12.2 49,950
TABLE 5
8301-090 Sensor: Temperature/Resistance
Temperature Resistance
C F Ω
-10 14.0 47,540
-9 15.8 45,270
-8 17.6 43,110
-7 19.4 41,080
-6 21.2 39,140
-5 23.0 37,310
-4 24.8 35,580
-3 26.6 33,930
-2 28.4 32,370
-1 30.2 30,890
0 32.0 29,490
1 33.8 28,160
2 35.6 26,890
3 37.4 25,690
4 39.2 24,540
5 41.0 23,460
6 42.8 22,430
7 44.6 21,440
8 46.4 20,510
9 48.2 19,620
10 50.0 18,780
11 51.8 17,980
Temperature Resistance
C F Ω
12 53.6 17,210
13 55.4 16,480
14 57.2 15,790
15 59.0 15,130
16 60.8 14,500
17 62.6 13,900
18 64.4 13,330
19 66.2 12,780
20 68.0 12,260
21 69.8 11,770
22 71.6 11,290
23 73.4 10,840
24 75.2 10,410
25 77.0 10,000
26 78.8 9602
27 80.6 9226
28 82.4 8866
29 84.2 8522
30 86.0 8194
31 87.8 7879
32 89.6 7579
33 91.4 7291
Temperature Resistance
C F Ω
34 93.2 7016
35 95.0 6752
36 96.8 6500
37 98.6 6258
38 100.4 6027
39 102.2 5805
40 104.0 5592
41 105.8 5389
42 107.6 5194
43 109.4 5007
44 111.2 4827
45 113.0 4655
46 114.8 4490
47 116.6 4331
48 118.4 4179
49 120.2 4033
50 122.0 3893
51 123.8 3758
52 125.6 3629
Manual 2100-669F
Page 33 of 37
