Installing Remote Indoor Temperature/Humidity Sensor(s)
One remote indoor temperature/humidity sensor and 35' of 18 gauge 5-conductor shielded cable is included with the
controller. This sensor must be installed for proper operation. Mount the temperature/humidity sensor in a location
least likely to be affected by open doors, rack-mounted fans, radiant heat sources, etc. Locating the sensor between
both return grilles is often the best location, but every installation is unique. Location height should be approximately
60" above the floor. The sensor should be installed on a 2" x 4" junction box to allow for control wire conduit. Use
shielded cable to connect to controller.

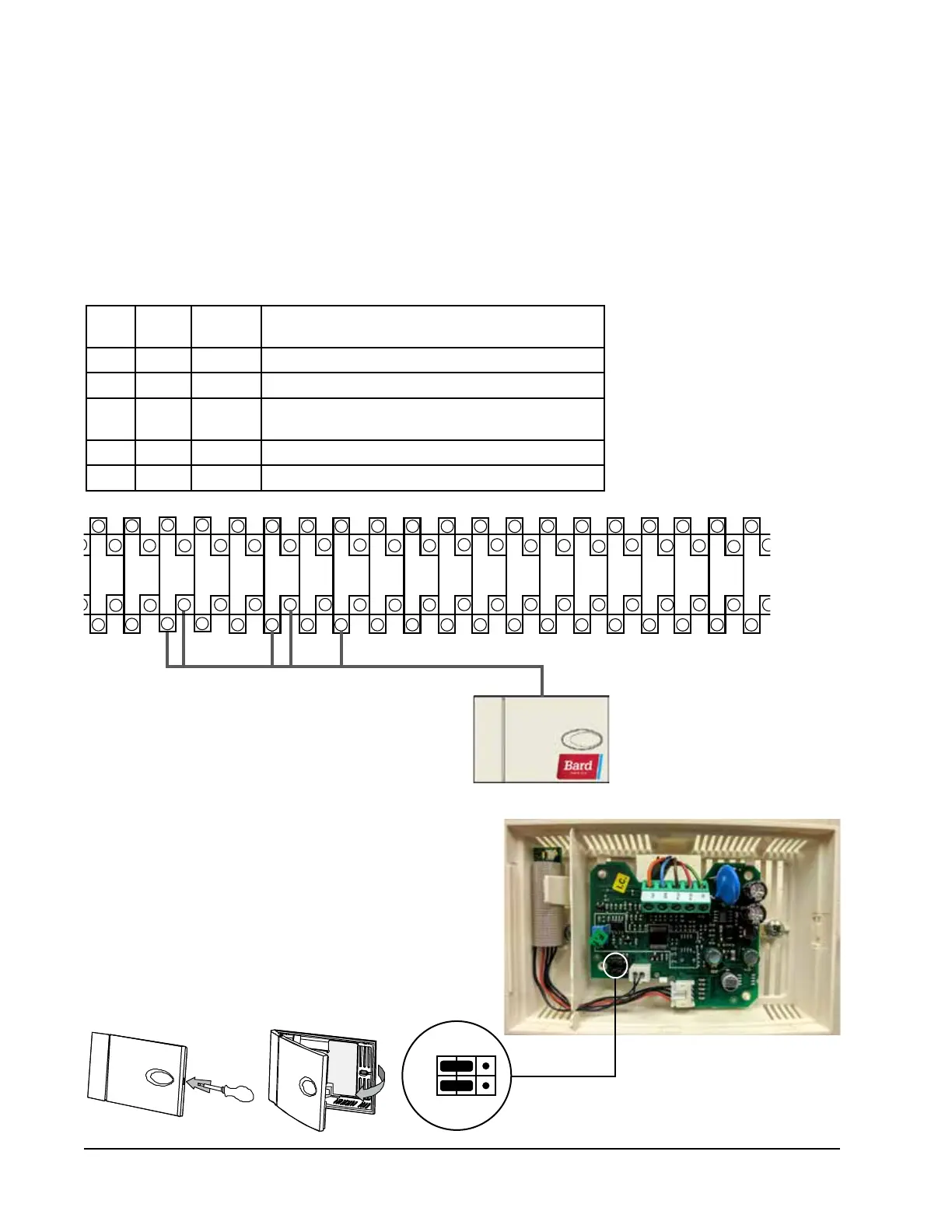

FIGURE 5
Remote Indoor Temperature/Humidity Sensor Installation
1. Connect wires from the 18 gauge shielded cable to terminals #12, #13, #18, #19 and #22.
2. Connect the other end of the shielded cable to the sensor
terminals. Be sure wires are connected to proper terminals
as shown in table above.
Sensor jumpers need to be positioned for 0-1 V. With sensor
oriented as shown in image to right, move both jumpers
to left position (DP1 and DP2 set to OFF). This applies
to all temperature/humidity sensors connected to the LC
controller.
Sensor is best mounted on a junction box, and it is
recommended that the cable be in conduit.
TB#
Wire
Mark
Sensor Description
18 B6 NTC OUT Indoor Remote Sensor (Zone 1)
19 GND NTC OUT Ground
12 B2 OUT H Remote Indoor Humidity Sensor: 0-1 VDC (Zone 1)
13 GND M (GO) Ground
22 +VDC + (G) Power for B2
Jumper
5
7
9
17
19
21
25
23
27
29
31
35
33
37
11 13
15
39 4341 45
47 51
49 53
55
59
57
60
6
8 10 12
14
16 18
20
22 24
26
28
30 32 34 36
38
40
42 44
46
48
50 52
54
56
58
1
2
3
4
