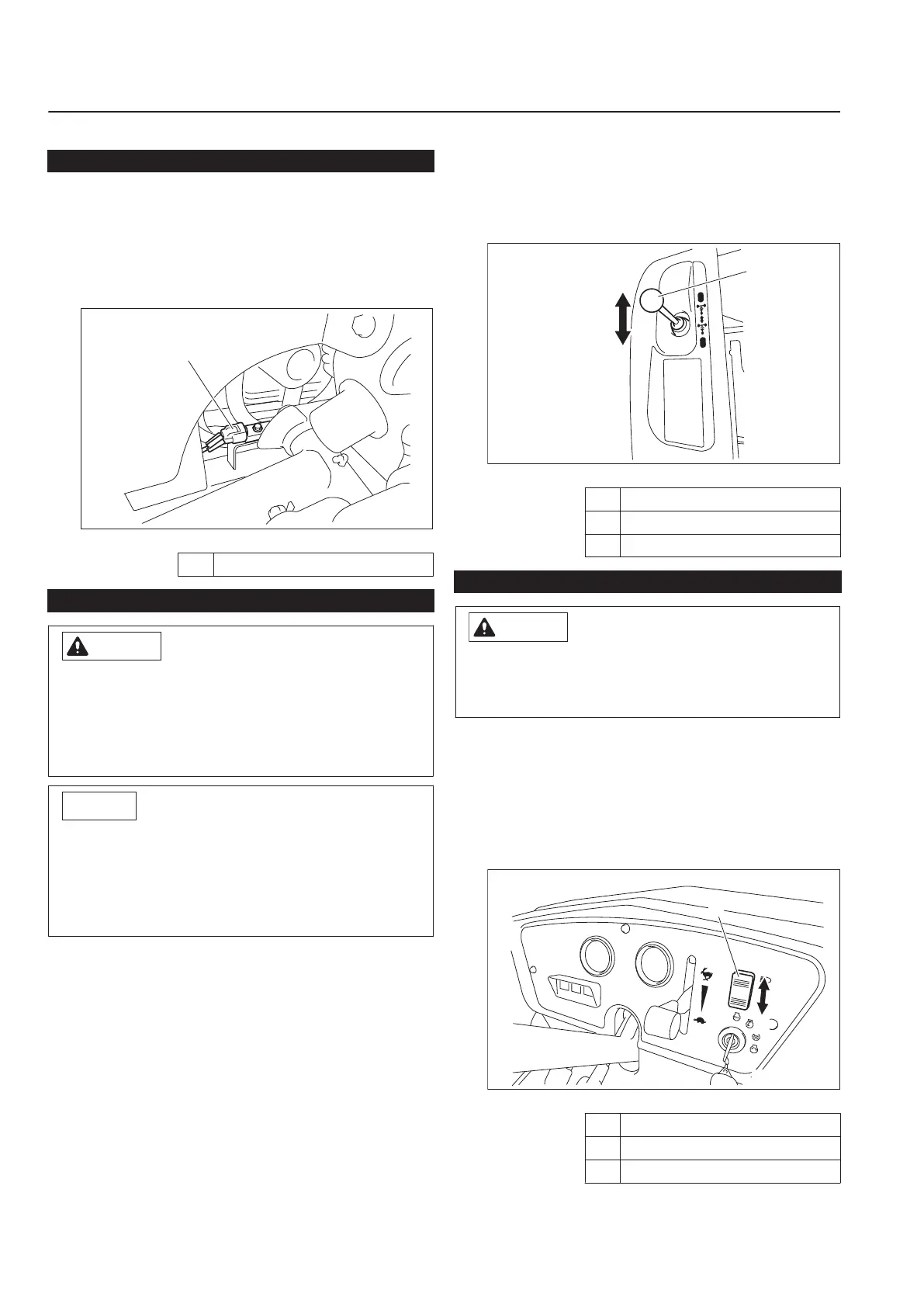

Proximity Sensor
There is a proximity sensor on #2 mower arm
fulcrum.
This sensor detects the raised or lowered
positions of mower unit #2. The information is
related to controlling rotation and stop of the reel
cutter (cutting cylinder).
1
qeetgd-018
Proximity Sensor_001
1
Proximity sensor
2WD/3WD Selector Lever
Caution
Since traveling on steep downward slopes,
wet surfaces and wet grassy downward
slopes in 3WD is dangerous, use 2WD.
Otherwise, the rear tire may slip and travel
control may be lost.
Important
Before switching between 2WD and 3WD
operation, make sure that the machine is
completely stopped.
Otherwise, the hydraulic equipments will
malfunction.
The 2WD/3WD selector lever is located to the
left of the driver's seat.
When the lever is shifted forward, 3WD mode is
selected. When the lever is shifted backward,
2WD mode is selected.
A
B
2WD
3WD
1
9hc94o-001
2WD/3WD Selector Lever_001
1
2WD/3WD selector lever
A 3WD
B 2WD
Light Switch
Caution
The lights provide auxiliary lighting.
Do not travel or operate the machine at night
or under poor visibility.
Note:
Depending on the specifications, this function
may not be available.
The light switch is located in the meter panel.
When the switch is set to the "ON" position, the
lights turn on. When it is set to the "OFF"
position, the lights turn off.
A
B
1
bnec97-021
Light Switch_001
1
Light switch
A ON
B OFF
LM331
Description of Functions
Page 4-2
Proximity Sensor
