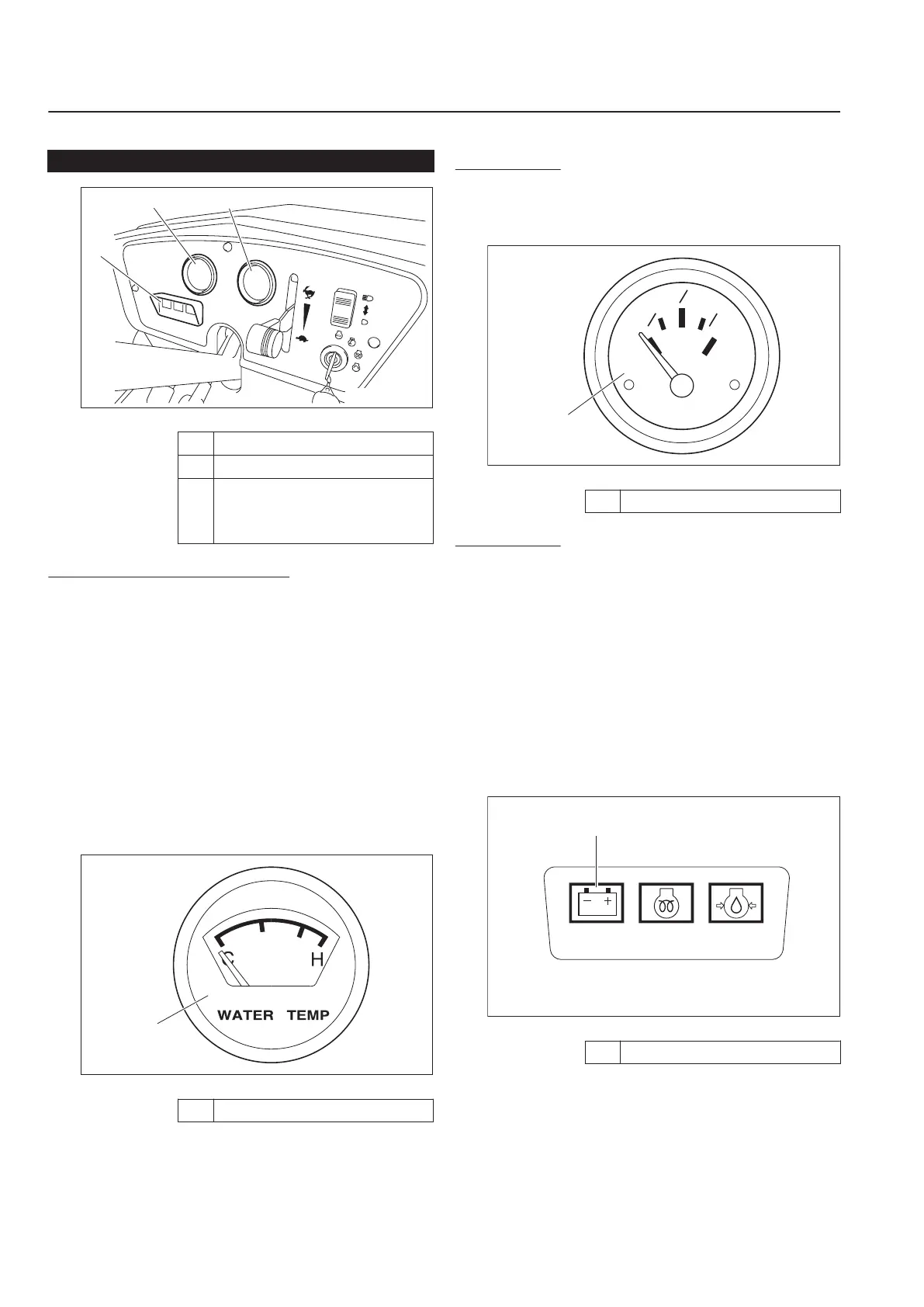

Water temperature gauge
2 Fuel gauge
3
Pilot lamps
(charge lamp, thermo-start lamp, and
oil pressure lamp)
Water Temperature Gauge
The water temperature gauge is located in the
meter panel.
This instrument indicates the water
temperature inside the engine.
If the water temperature gauge indicates a
level close to "H" during operation, the machine
is overheated.
Remove the load from the engine, idle the
machine for five minutes, stop the engine, and
then inspect the machine and perform any
necessary maintenance.
If the water temperature exceeds 105 degrees
Celsius, a buzzer will sound. (intermittent tone)
1
igozke-001
Water Temperature Gauge_001
1
Water temperature gauge
Fuel Gauge
The fuel gauge is located in the meter panel.
This instrument indicates the quantity of fuel
inside the fuel tank.
EF
1
4
FUEL
1
2
3
4
1
2e4emp-001
Fuel Gauge_001
1
Fuel gauge
Pilot Lamps
Charge Lamp
The charge lamp is the left pilot lamp, located
in the meter panel.
This lamp turns on when the ignition key is set
to the "ON" position before the engine starts.
It turns off when the engine starts and the
alternator starts operating properly.
If this lamp illuminates while you are operating
the machine, stop the engine immediately,
and then inspect the machine and perform
any necessary maintenance.
1
ifzqmc-002
Charge Lamp_001
1
Charge lamp
LM331
