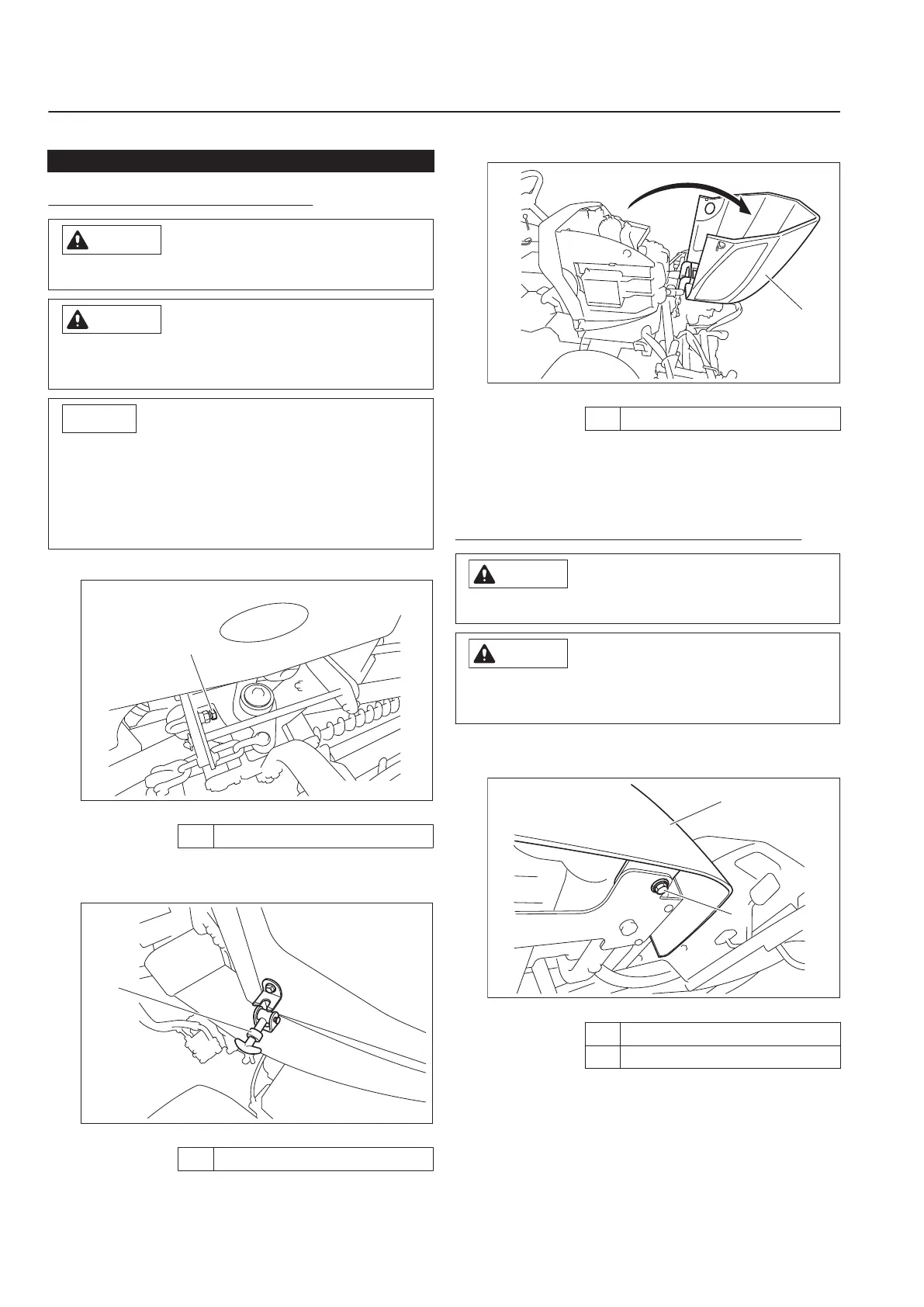

Baroness LM331 - Opening and Closing of Hood; Operations before Service; Removing and Installing of Rear Cover

Operations Before Service
Opening and Closing of Hood
Caution
Do not open the hood in strong winds.
Caution
Be careful not to pinch your fingers when you
open or close the hood.
Important
Before opening the hood, be sure to lower the
mower units.
In addition, do not raise the mower units while
the hood is open.
Otherwise, the hood will be damaged.
Loosen the lock bolt for the hood.
1
i5jb7e-021
Opening and Closing of Hood_001
1
Lock bolt
Release the rubber catches on the left and
right sides.
1
i5jb7e-022
Opening and Closing of Hood_002
1
Rubber catch
1.
2.
Lift up the hood.
1
i5jb7e-023
Opening and Closing of Hood_003
1
Hood
Close the hood slowly.
Hook the rubber catches without fail.
Tighten the lock bolt for the hood.
Removing and Installing of Rear Cover
Caution
Do not remove the rear cover in strong winds.
Caution
Be careful not to pinch your fingers when
removing or installing the rear cover.
Remove the bolts on the rear cover.
Left and right mounting bolts (one each)
1
2
uemj7o-007
Removing and Installing of Rear Cover_001
1
Rear cover
2 Bolt
3.
4.
5.
6.
1.
LM331
Handling Instructions
Page 5-2
Operations Before Service
