Baroness LM331 - Change of Fuse

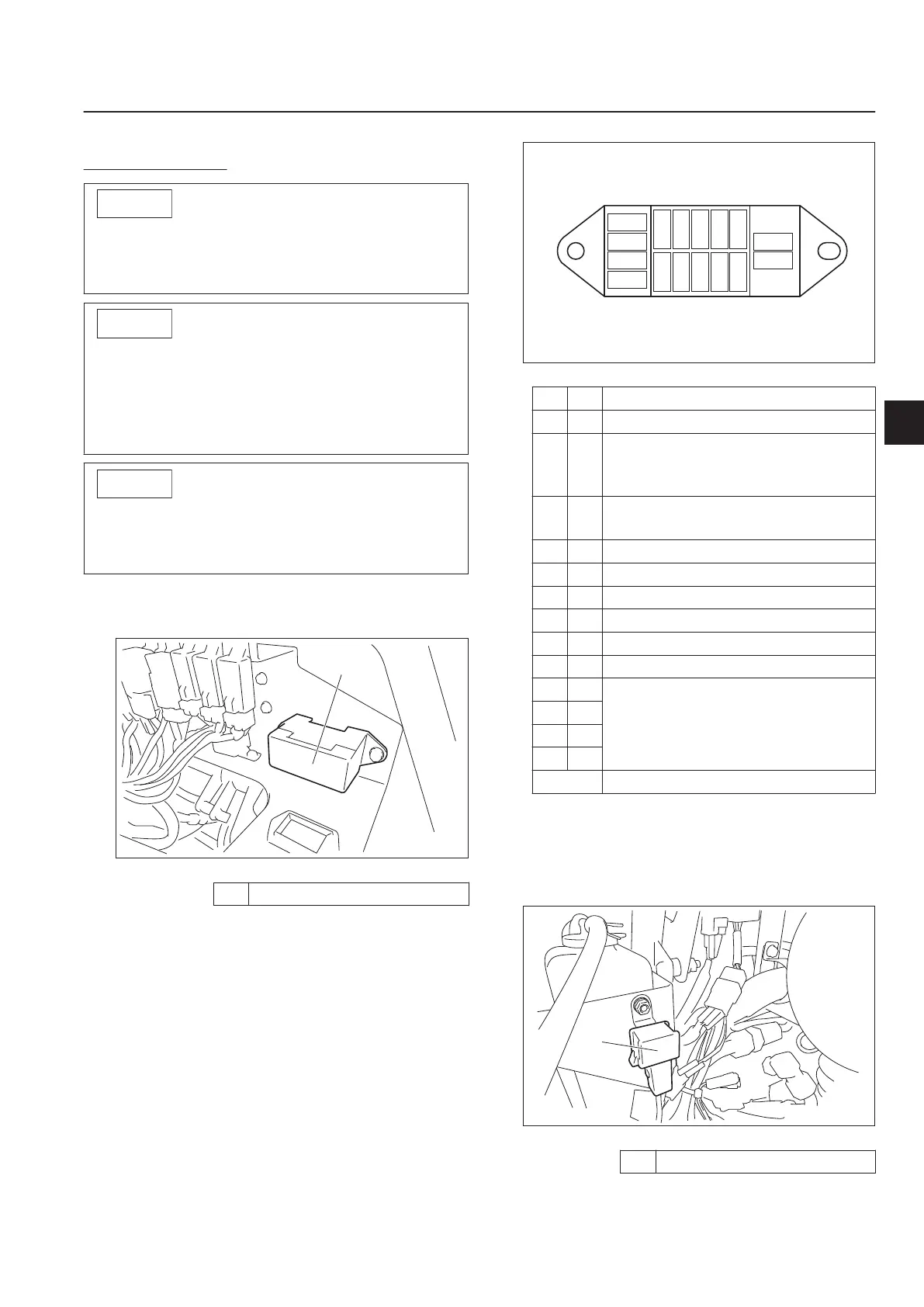

Change of Fuse
Important
When performing maintenance on the
electrical system, be sure to remove the
negative battery wire.
Important
If a fuse blows, a short may have occurred
within the electrical circuit.
Check for the cause, such as faulty terminal
connections, damaged wiring or terminals, or
incorrect wiring.
Important
For fuse replacement, clean the fuse
mounting area with use of compressed air
before mounting the fuse.
Fuse Box
The fuse box includes spare fuses and tools.
1
pkm25s-015
Fuse Box_001
1
Fuse box
The machine uses a mini fuse for
automobiles.
Replace an old fuse with a new fuse of the
specified capacity.
ABCDE
GFHIJ
K
L
M
N
O
pkm25s-003
Fuse Box_002
A
5 A Glow lamp timer
B 5 A Glow lamp
C 5 A
Charge lamp, oil pressure lamp (engine oil
pressure lamp), water temperature gauge,
buzzer, solenoid timer, hour meter, fuel gauge
D 15 A
Reel normal rotation solenoid, reel reverse
rotation solenoid
E 15 A (Unused)
F 10 A Light
G 5 A Glow lamp timer (start signal)
H 5 A Alternator
I 5 A Interlock (reel control)
J 5 A Interlock (mainly start safety)
K 5 A
Spare
L 5 A
M 10 A
N 15 A
O Tool
Fusible Link
Fuse capacities of the fusible links are 30 A
and 50 A.
Engine stop solenoid: 30 A
1
1qgabk-013
Fusible Link_001
1
Fusible link (30 A)
Repair
LM331
Repair
Page 7-5
Adjustment and Replacement
