Make sure that the length of the spring of the
lever adjuster is 53.0 mm (2.09 in).
Loosen the lock nut as necessary to make
adjustment.
A
123
fhjgud-016

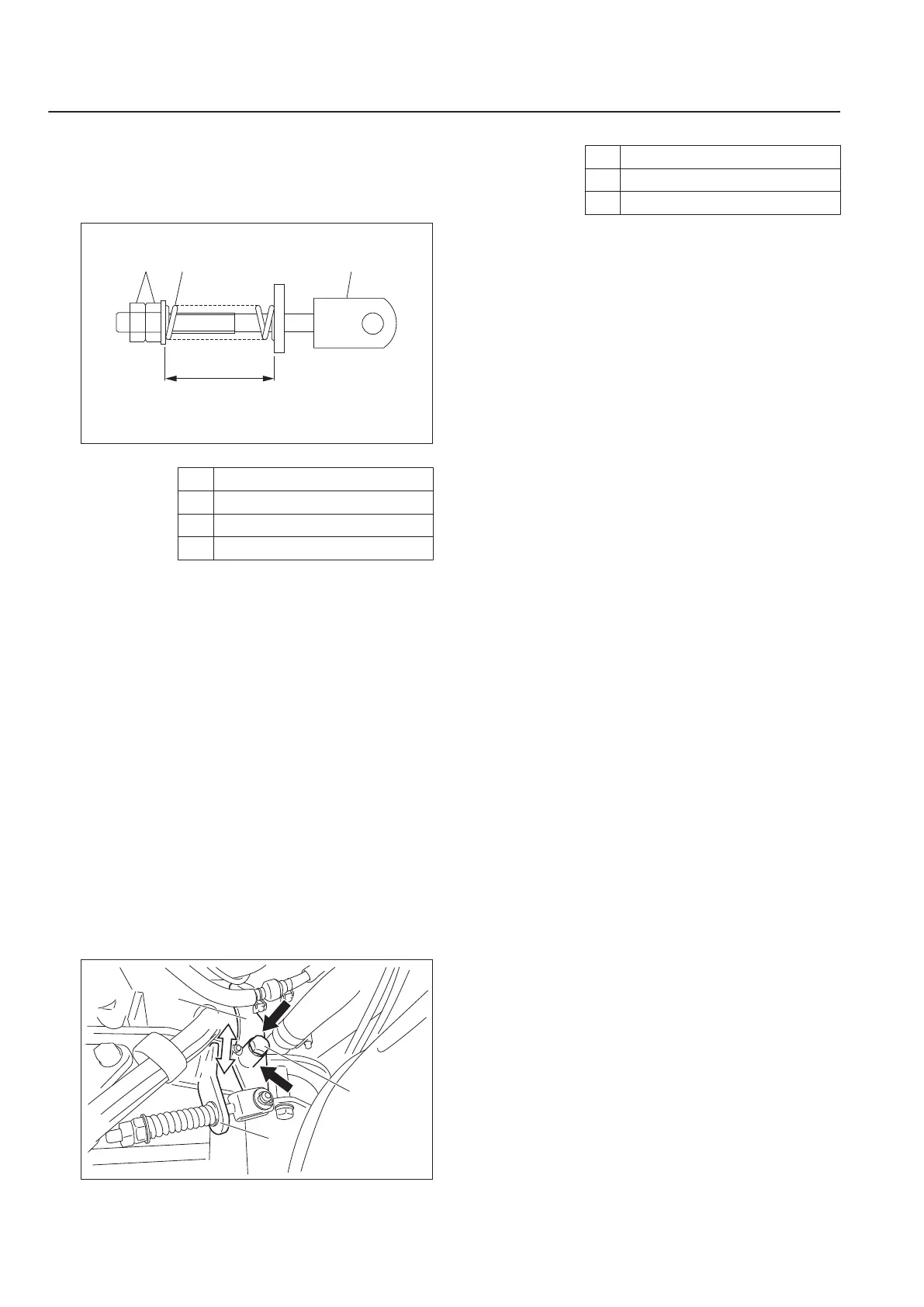

Adjusting the Neutral Position of the Piston Pump_001
1
Lever adjustment bracket
2 Spring
3 Lock nut
A 53.0 mm (2.09 in)
Adjust the neutral position.
Follow these steps to adjust the neutral
position.
When the tire moves in the direction of
forward travel, slide the cam lever in
direction A.
When the tire moves in the direction of
backward travel, slide the cam lever in
direction B.
Make sure that the engine has stopped.
Turn the cam lever shaft bolt
counterclockwise 60 ° or up to 120 ° to
loosen it.
Tap the cam lever fulcrum (pipe portion)
with a plastic hammer in the direction of
black arrow to slide the cam lever in the
direction A or B.
Tighten the cam lever shaft bolt.
2
3
1
A
B
hsn2jo-016
Adjusting the Neutral Position of the Piston Pump_002
5.
6.
･
･
[1]
[2]
[3]
[4]
1 Cam lever
2 Cam lever shaft bolt
3 Lever adjustment bracket
Start the engine, and rev it up to the
maximum rpm.
Set the 2WD/3WD selector lever to the
"2WD" position.
Check that the tires do not move.
If a tire moves even slightly, stop the engine,
and then repeat steps 6. to 9.
7.
8.
9.
LM331
Repair
Page 7-4
Adjustment and Replacement
